Page 20
New iStar ICCD
Introduction to the New iStar
2.2 - MECHANICAL DRA
WINGS
W
eight = 4.2 kg [9 lb 4 oz]

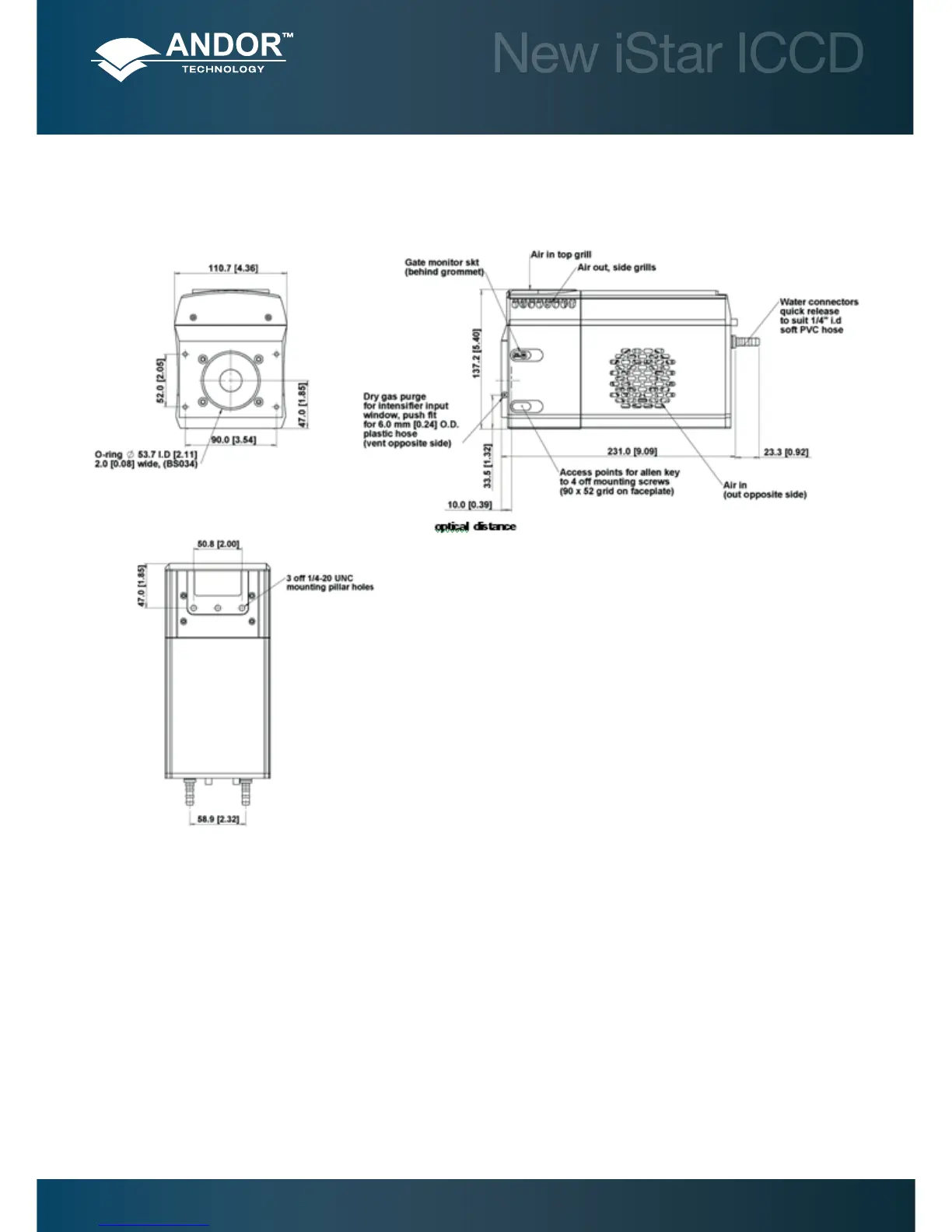

Figure 2: New iStar mechanical layout
Note: The 10 mm optical distance is taken from the fr
ont surface of the input faceplate.
19
21
