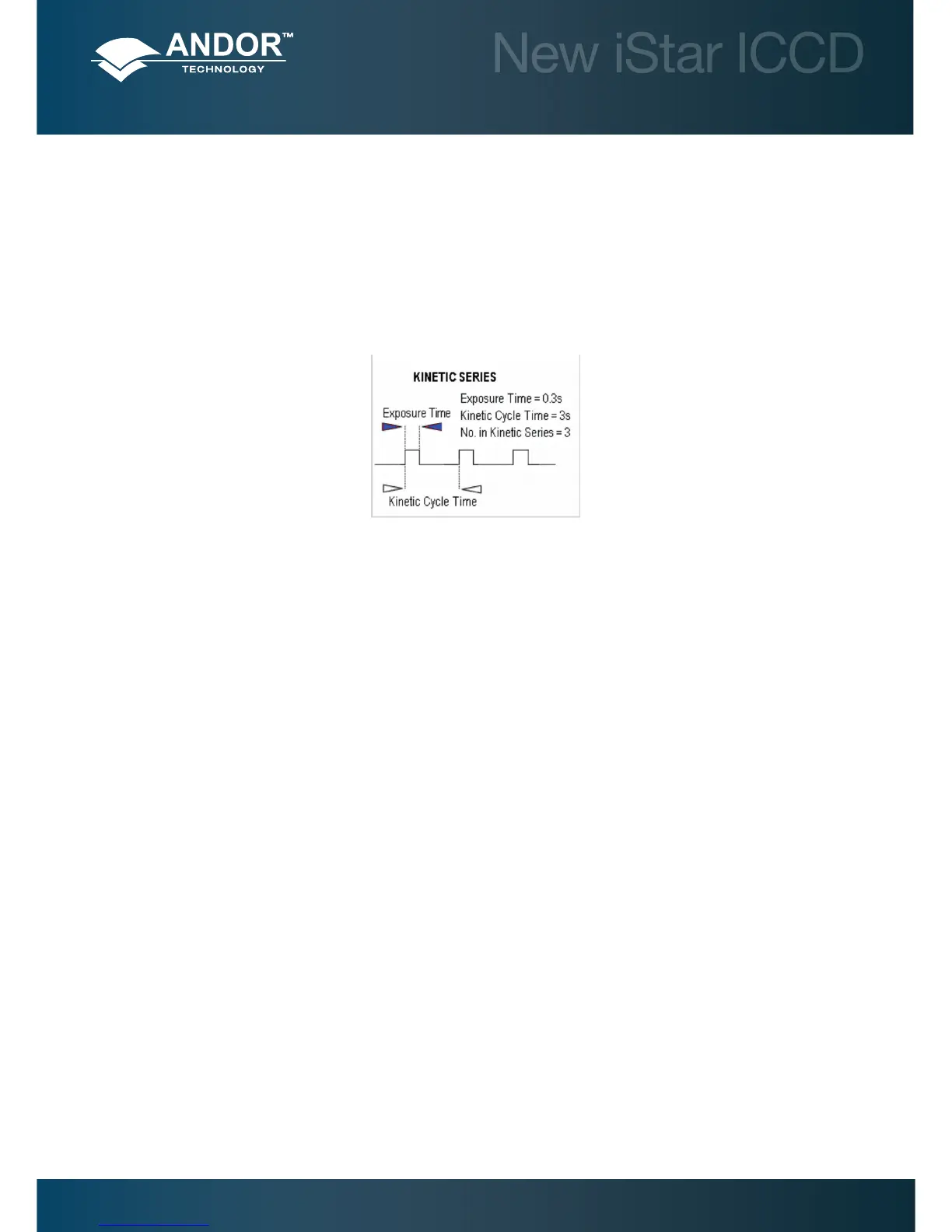

5.3.1.3 - Kinetic Series
Kinetic series mode allows user to run, record and save a sequence of consecutive acquisitions in a single working
window. The following parameters are used to congure the acquisition:
• Exposure Time
• Kinetic Cycle Time: The time between the start of two consecutive scans within a kinetic series
• Number in Kinetic Series: The number of scans taken in the kinetic series
This mode is particularly well suited to recording the temporal evolution of a process, and can also be used in
conjunction with accumulation mode for further signal-to-noise ratio enhancement
Note: If External trigger is selected the Kinetic Cycle dialog box will indicate the maximum achievable frame rate.
Pre-Acquisition Setup - CCD
