New iStar ICCD
Pre Acquisition Setup - Data
5.3.7 - Autoscale Acquisition

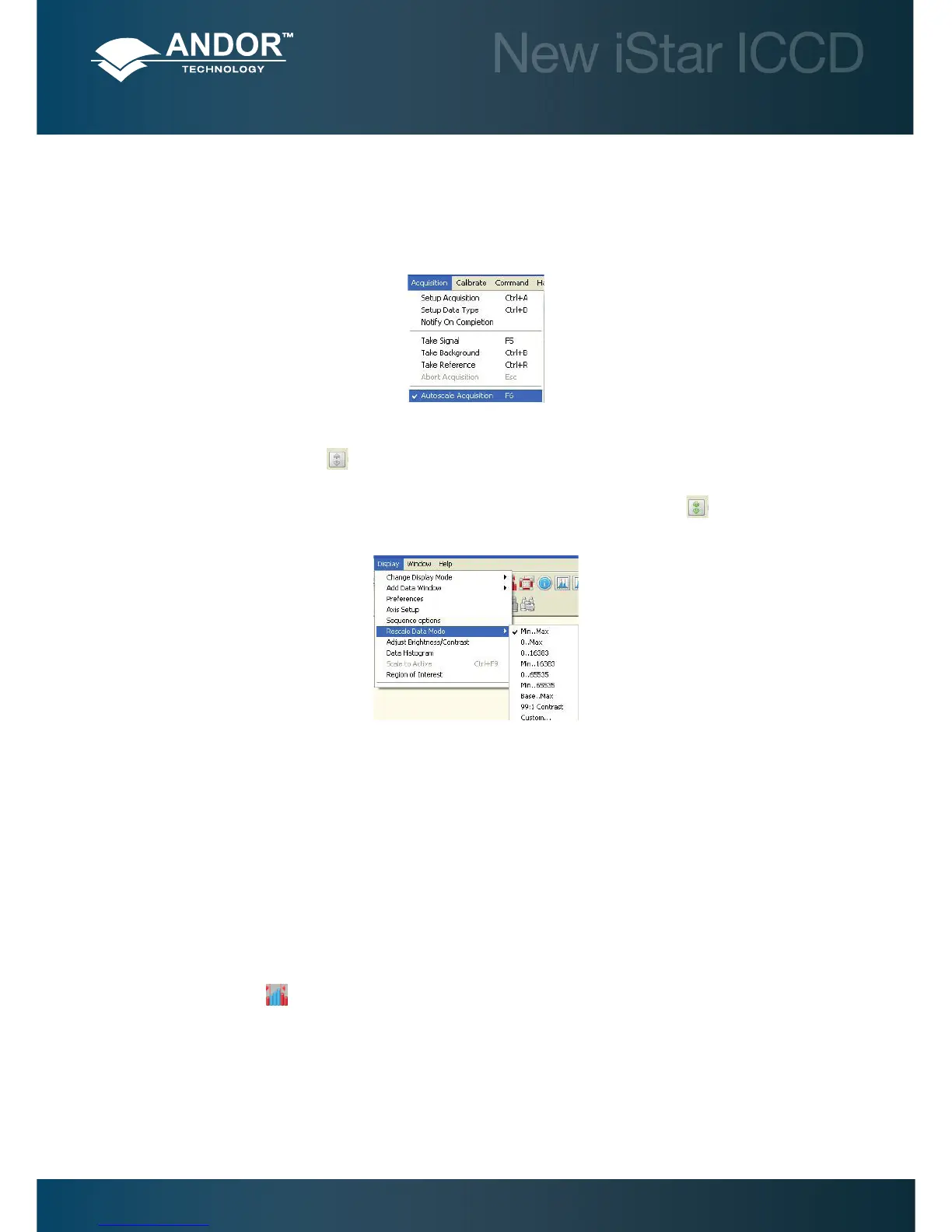

Prior to the Take Signal function being activated, autoscale acquisition can be selected from the Acquisition drop-
down menu as shown below (or F6 on the keyboard):
• Withautoscaleacquisitiondeselected,thedisplaywillremainthesamesizeregardlessofbrightnesssettings,
etc. When not selected, the
button appears.
• Withautoscaleacquisitionselected,thesystemwillconguretheacquisitionwindow(ifnecessaryadjusting
its scales in real time) so that all data values are displayed as they are acquired. The
button appears when
selected on. The data are displayed in accordance with the selection made on the Rescale Data Mode on the
Display Menu:
Different scaling modes are available as follows:
• Minimum&maximum (Min..Max)
• Zero&maximum (0..Max)
• Zero&16383(0..16383)
• Minimum&16383 (Min..16383)
• Zero&65535(0..65535)
• Minimum&65535(Min..65535)
• Customsettingasrequired-userselectableminandmaxdisplayrange
Note: The histogram icon
can be used to adjust conveniently and in real time signal display scaling.
