New iStar ICCD

Short Gate Widths (<1 us)

For example: 100 ns gate width:

Set input impedance on oscilloscope to 50 Ω.

Set Voltage amplitude to 500 mV

Long Gate Widths (>1 us)

For example: 100 us gate width:

Set input impedance on oscilloscope to 1 MΩ.

Set Voltage amplitude to 500 mV

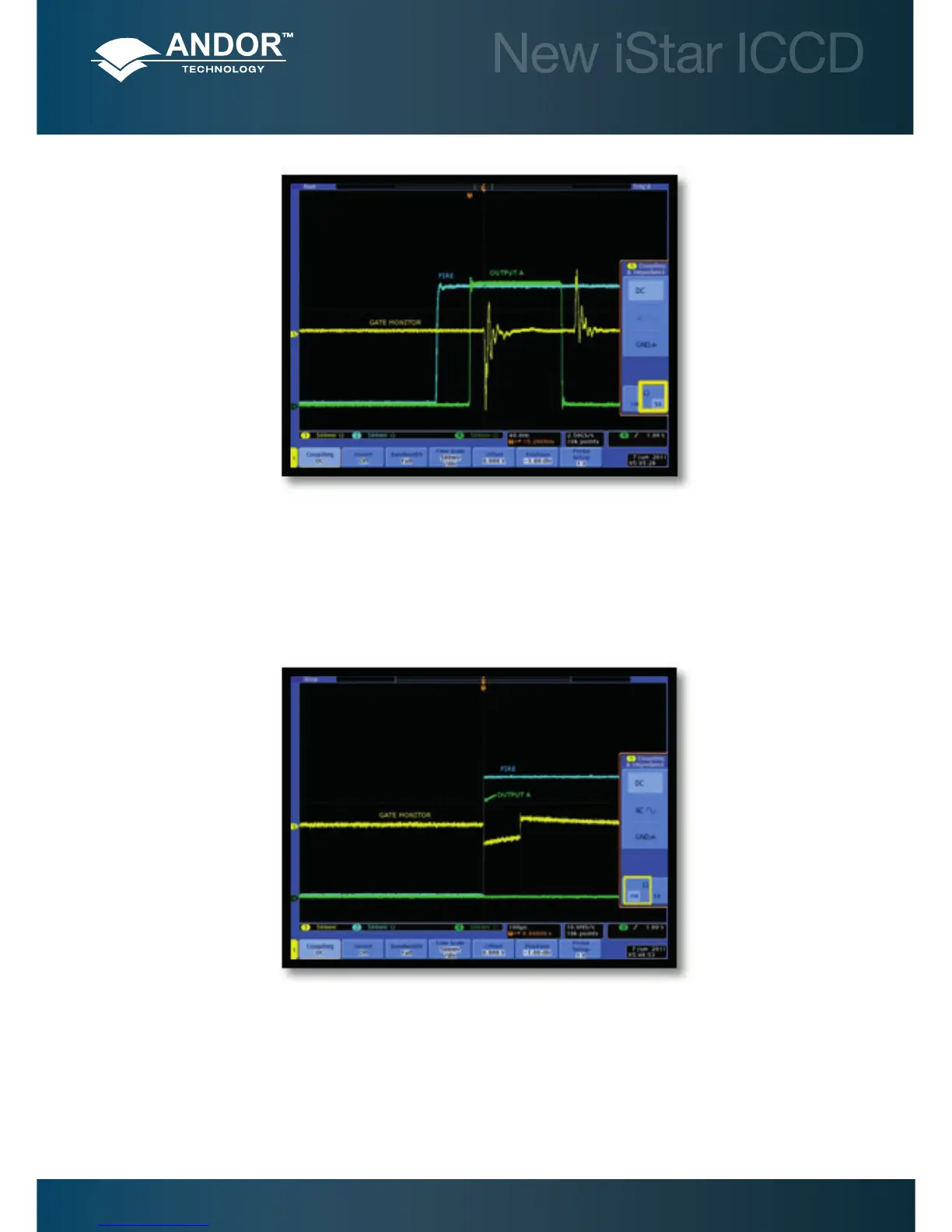

Pre-Acquisition Setup - Image Intensier

Fire Pulse (Blue)

Gate Monitor (Yellow)

Output A (Green)

Fire Pulse (Blue)

Gate Monitor (Yellow)

Output A (Green)
