6-22 Replacing MS202xC Main PCB Assembly Assembly Removal and Replacement, MS202xC
6-48 PN: 10580-00307 Rev. D MS20xxC MM

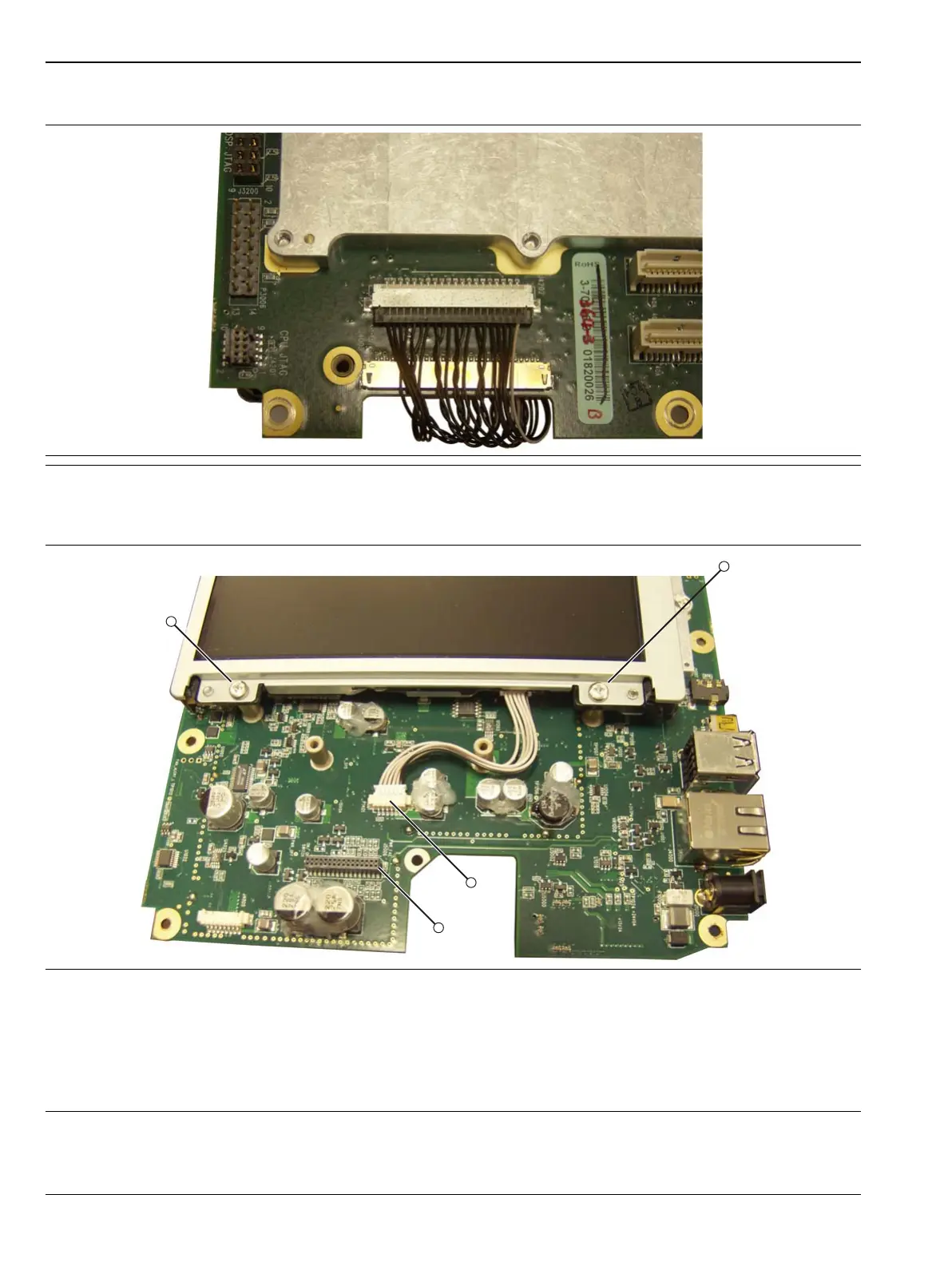

Figure 6-18. Connector J4202, for LCD Signal Cable to Mother Board
1. Phillips-head mounting screws (4 each) holding the LCD Assembly to the Main PCB Assembly
(only 2 screws shown).
2. Phillips-head mounting screws (4 each) holding the LCD Assembly to the Main PCB Assembly
(only 2 screws shown).
3. LCD Backlight Cable connection to P6000 connector on Main PCB Assembly.
4. Main PCB Assembly connector J5006 to Main Keyboard Assembly.
Figure 6-19. LCD Cable, Mounting Screws, and Backlight Cable
To Next Page
