4-5 Spectrum Analyzer Frequency Accuracy with GPS On Options Performance Verification
4-8 PN: 10580-00307 Rev. D MS20xxC MM
4-5 Spectrum Analyzer Frequency Accuracy with GPS On
The following test is used to verify the frequency accuracy of the spectrum analyzer with GPS On for the
MS2036C, MS2037C, and MS2038C.
Equipment Required
• 10 MHz Frequency Reference Standard, Symmetricom Model RubiSource T&M
• Synthesized Signal Generator, Anritsu Model MG3692X
• K(m) to N(f) Adapter, Anritsu Model 34RKNF50
• N(m) to N(m) RF Coaxial Cable, Anritsu Model 15NN50-1.0B
• BNC(m) to BNC(m) RF Coaxial Cable, Anritsu part number 2000-1627-R
• GPS Antenna, Anritsu part number 2000-1528-R or Trimble part number 57861-00
• N(f) to K(m) Adapter, Anritsu 34NFK50 (for MS2038C with Option 11 Only)

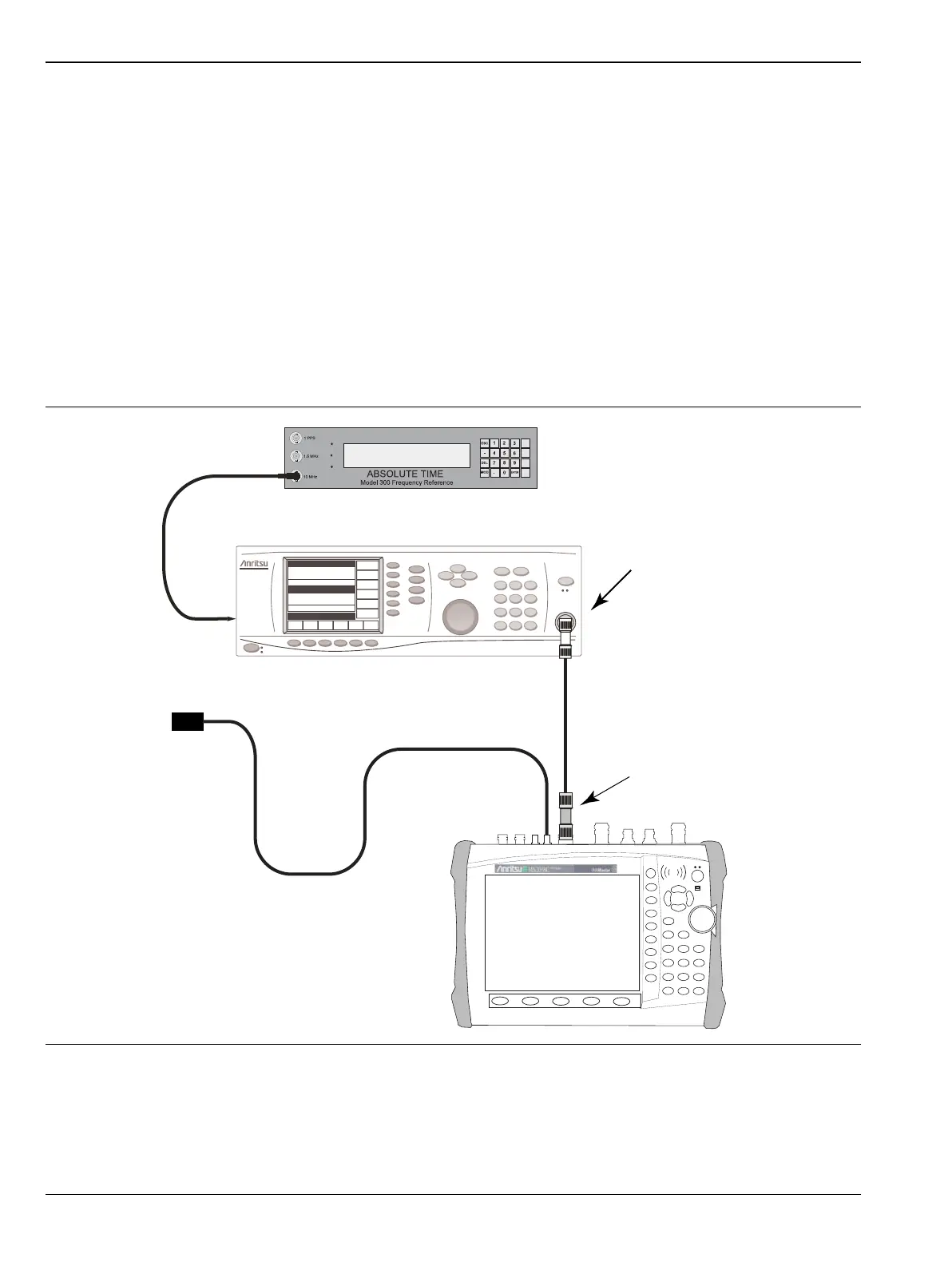

Figure 4-2. Spectrum Analyzer Frequency Accuracy with GPS On
Adaptor
(for Option 11)
VNA Master
10 MHz Reference
Signal Source
Adapter
GPS
Antenna
