6-8 Internal Anatomy of the VNA Master MS2026C Assembly Removal and Replacement, MS202xC
6-6 PN: 10580-00307 Rev. D MS20xxC MM
6-8 Internal Anatomy of the VNA Master MS2026C
MS2026C View from Top Connector Strip
1. Case Back
2. VNA PCB Assembly with N(f) Connectors
3. Main PCB Assembly (mother board)
4. Hand Strap (mounted on Case Front)
5. Rotary Knob and Rotary Encoder (mounted on Case Front)
6. Main Keypad (mounted on Case Front)
7. Main Menu Keypad (mounted on Case Front)
8. Case Front
9. LCD Display (mounted on Main PCB Assembly)
10.GPS Module Option 31 PCB Assembly
11.Power Monitor Option 5 PCB Assembly (behind connector strip)

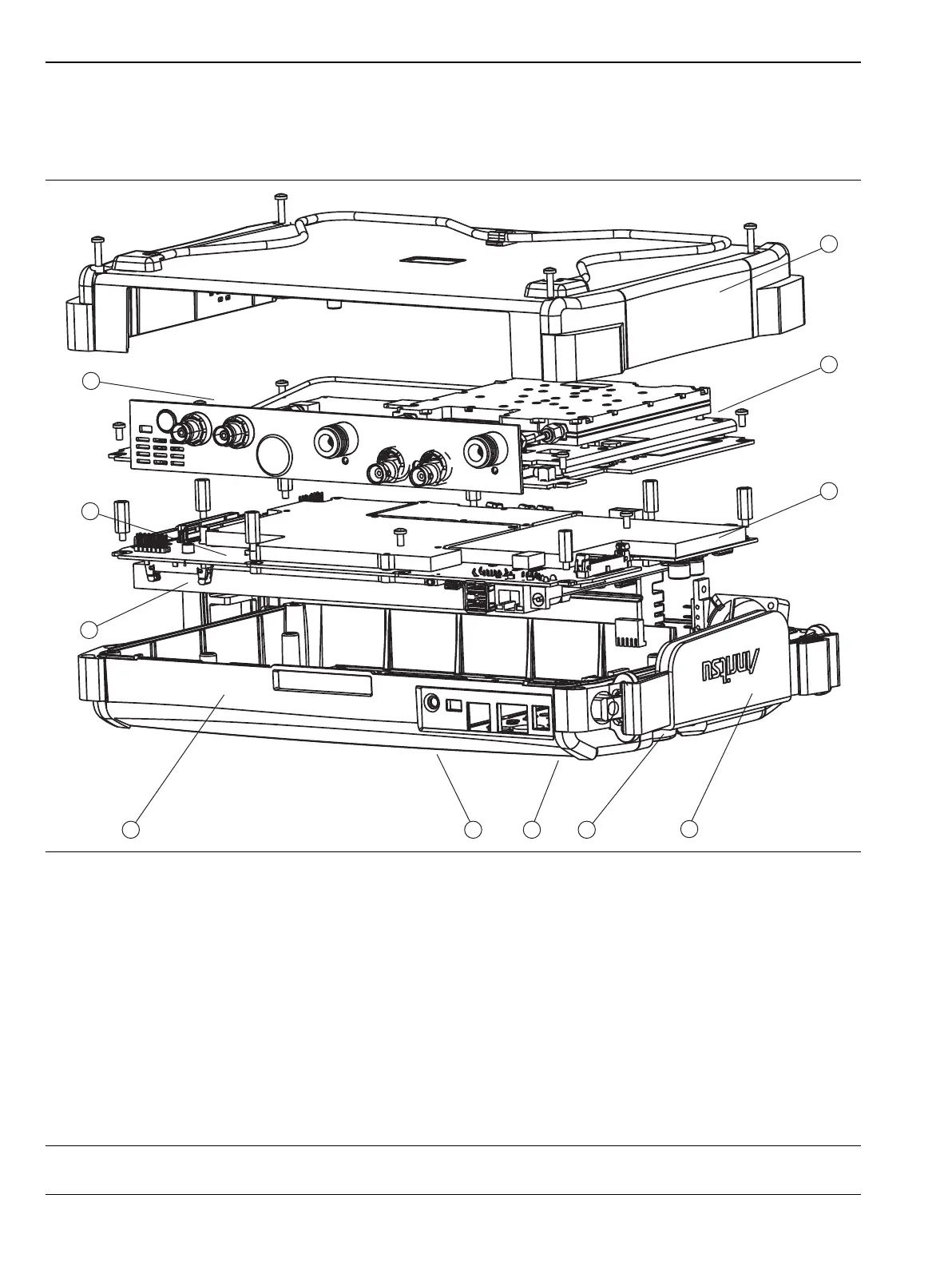

Figure 6-4. VNA Master MS2026C Major Assemblies – Viewed from Top Connector Strip
1
2
11
3
7
10
5
6
8
9
4
