3-8 Resolution Bandwidth Accuracy Spectrum Analyzer Performance Verification
3-20 PN: 10580-00307 Rev. D MS20xxC MM
10. Connect the output of the Synthesized Signal Generator to the Spectrum Analyzer RF In connector of the
MS203xC.
11. Press the Amplitude hard key and then the Reference Level soft key.
12. Enter –10 and then press the dBm soft key to set Reference Level to –10 dBm.
13. Press the Atten Lvl soft key.
14. Enter 0 and then press the dB soft key to set Atten Lvl to 0 dB.
15. Press the Freq hard key and then the Center Freq soft key.
16. Enter 1 and then press the GHz soft key to set Center Freq to 1 GHz.
RBW Test
17. Press the Span hard key.
18. Use the numeric keypad and the appropriate unit soft key (MHz, for example) to set Span to the first
value that is listed in Table A-17, “Spectrum Analyzer Resolution Bandwidth Accuracy” on page A-9 for
MS2036C, in Table A-38, “Spectrum Analyzer Resolution Bandwidth Accuracy” on page A-19 for
MS2037C or in Table A-62, “Spectrum Analyzer Resolution Bandwidth Accuracy” on page A-32 for
MS2038C. Refer to the Span column of the Table.
19. Press the BW hard key and then the RBW soft key.
20. Use the numeric keypad and the appropriate unit soft key (for example, MHz) to set RBW to the first
value listed in Table A-17 for MS2036C, in Table A-38 for MS2037C or Table A-62 for MS2038C in
Appendix A.

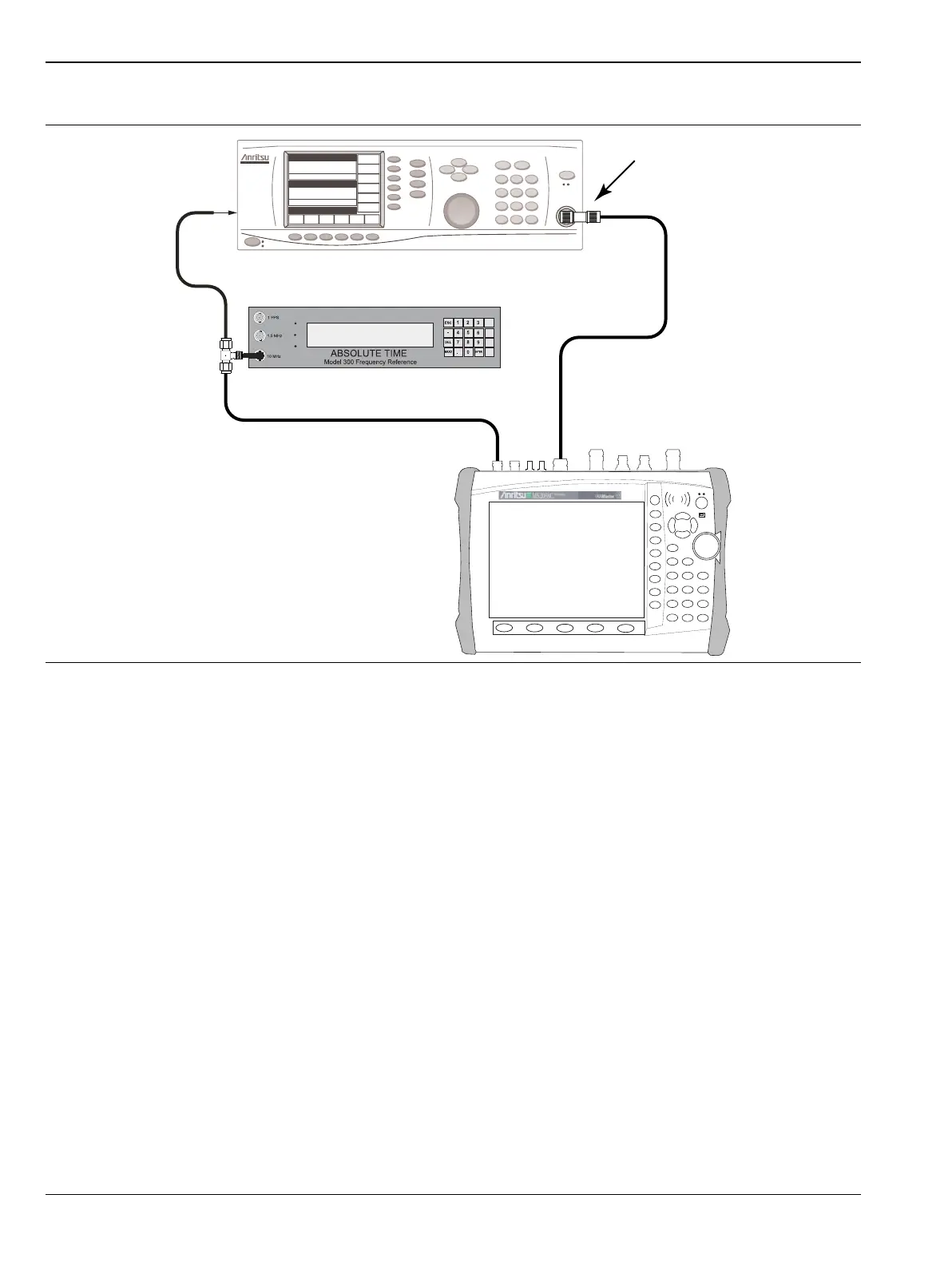

Figure 3-2. Resolution Bandwidth Accuracy Test
VNA Master
10 MHz Reference
Signal Source
Adapter
To Next Page
