ANSER CODING INC. 13 X1 User Interface

Getting to Know the Homepage

The X1 system homepage provides essential information about the status of the production line, print station, and

printheads, where users can quickly know what is happening through all these components. Each part of X1 system

homepage is marked by a red number in the following Figure 1-15 and is described in the following Table 1-3.

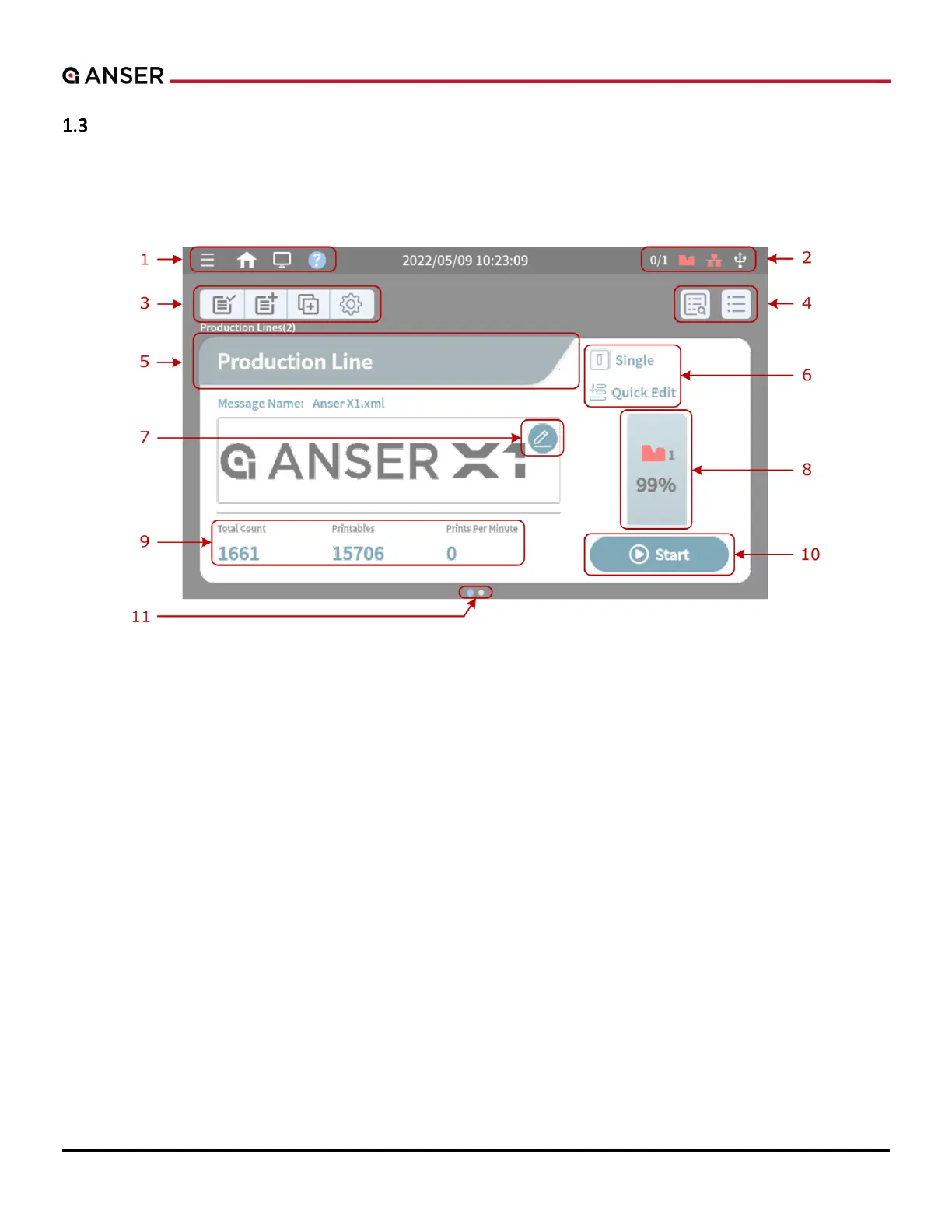

Figure 1-15. X1 System Homepage
