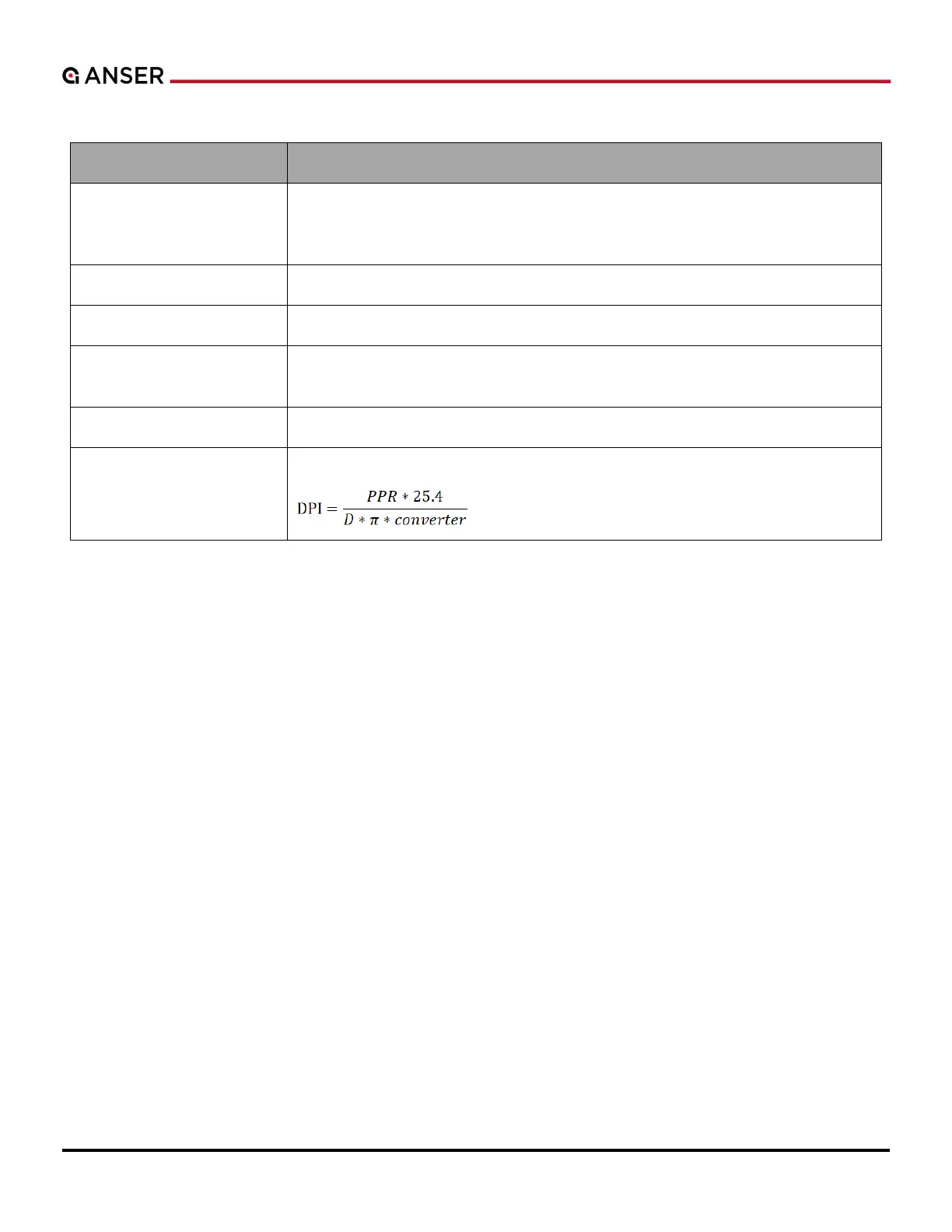

Table 1-8. Production Line and Print Station Settings

Option

Description

Encoder Source

Encoder is connected to controller or printhead. If encoder option is switched off,

I.e., not connecting encoder, printer will generate the signal with a constant speed

by itself. Refer to Section 2.1.

Encoder DPI

Resolution (DPI) of the encoder.

Output DPI

Actual printout DPI. Users can divide encoder DPI into the smaller value.

Meter Wheel

Enable the option to use your own encoder. Users can manually input the diameter

and PPR.

DPI Converter

Divide encoder DPI by 1 to 8.

Calculated Output

Show actual printout DPI calculated by diameter, PPR and DPI converter.
