2.3.1 Stitching Alignment

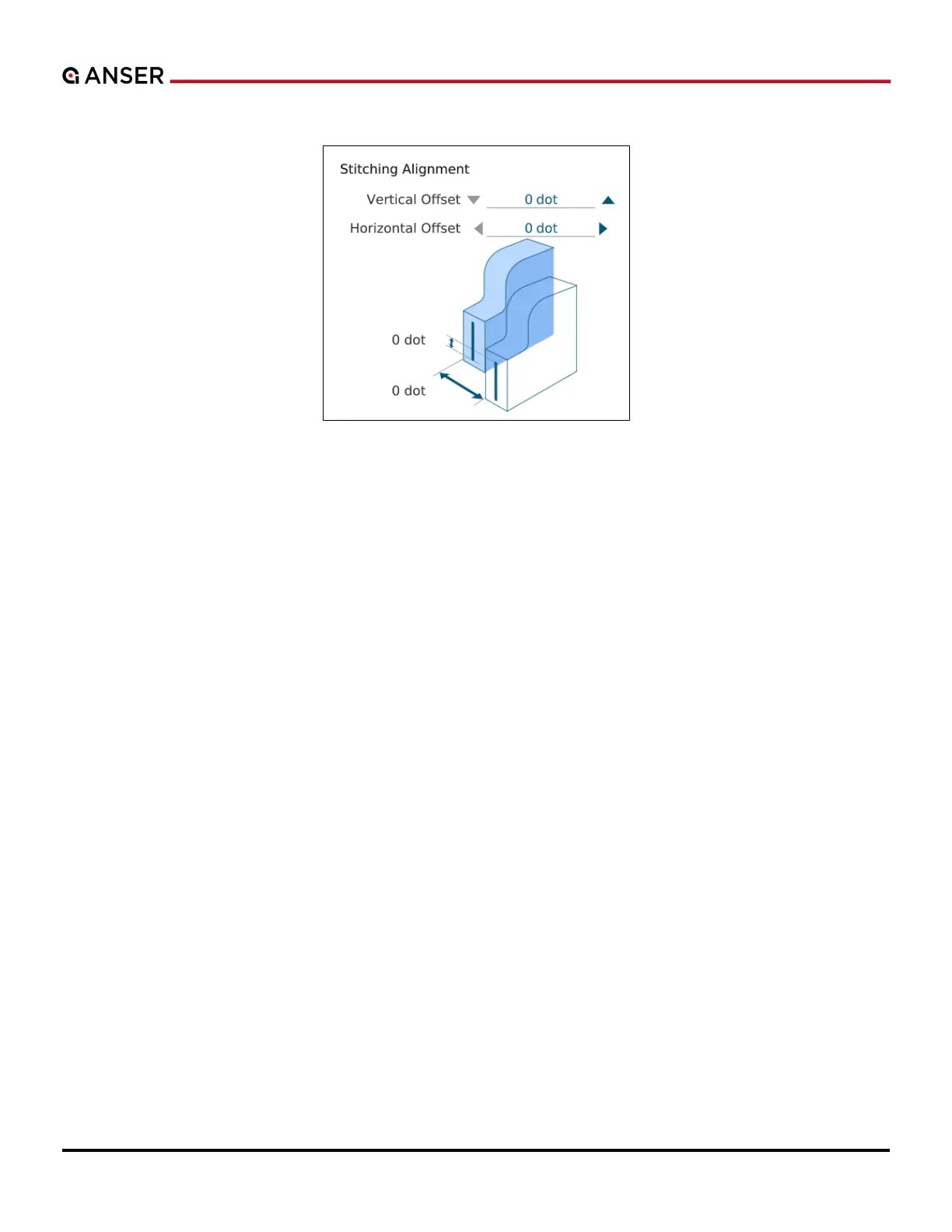

Figure 2-1. Stitching Alignment
When working with print stations in stitch mode, a full-height message is printed by dividing the content into two parts
and assigning them to each of the printheads forming the stitch print station. It is during the initial setup that there could
be issues with a message not being properly aligned.
To align the printheads and print a complete message, the operator can perform physical adjustments to printhead
installation, as well as, changing the stitch alignment settings directly in the X1 software.
a. Perform an initial test print to confirm stitch alignment status.
b. If there is a separation between the content, first do physical adjustments to the printhead installation, and then
perform another test print.
c. If no improvements are observed, access to printhead settings and adjust the vertical or horizontal offset from the
stitching alignment setup page.
