1.5.2.2 Stitch Print Station Mode

The stitch mode printing station allows users to combine two half-inch or one-inch printheads, thus achieving prints with

a height of up to two inches. A production line can only have one print station in stitch mode since both of printheads

are occupied.

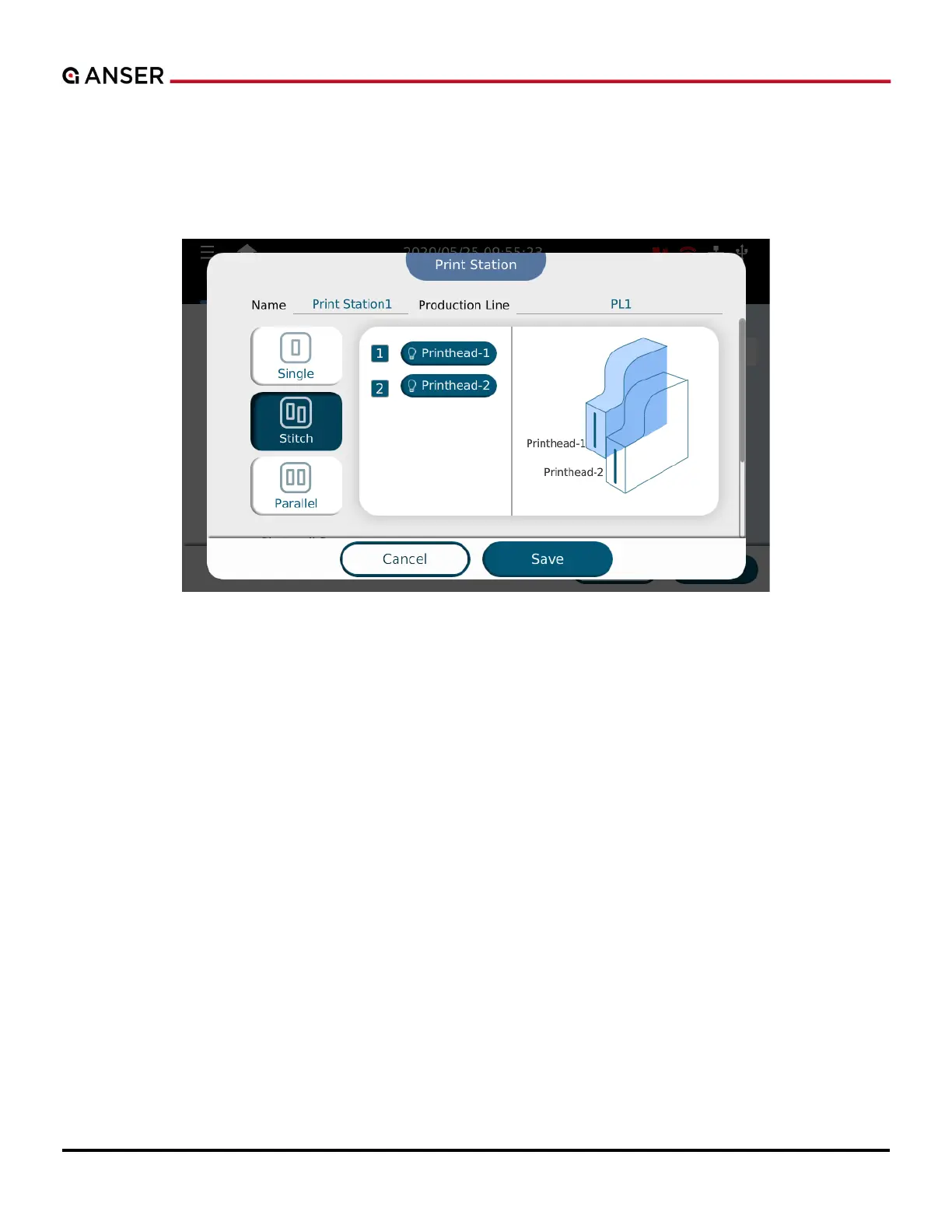

Figure 1-55. Add a New Print Station – Stitch Mode
