1.5.4.7 Scan & Select

Scan & Select module allows users to set a message to print mode by scanning a barcode.

Users define a rule that contains data key and the message to print. X1 compares whether the input data key is

presented in the scan data or not. If the key matches, then X1 will assign the linked message to the production line.

Note: A 

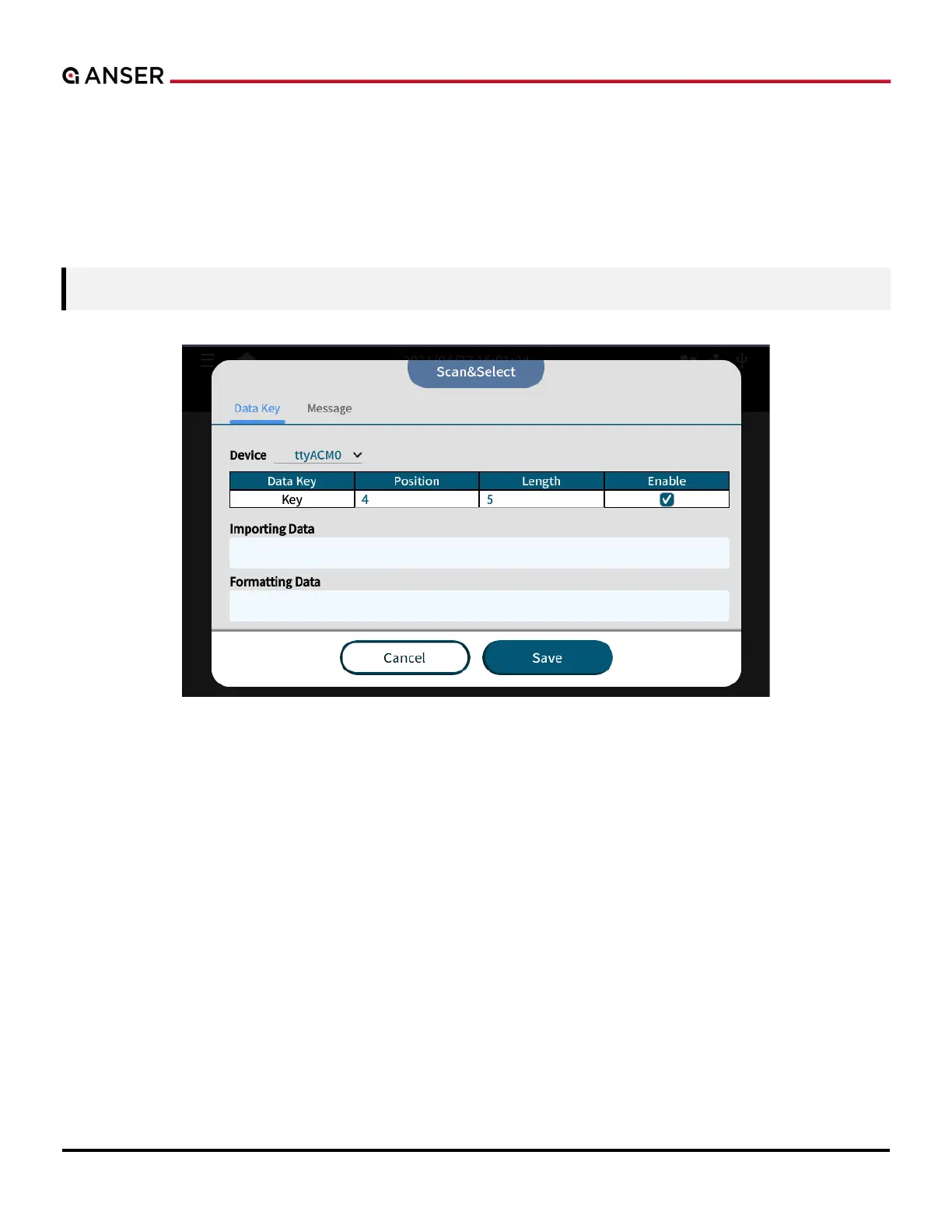

Figure 1-62. Scan & Select Page – Enable Data Key

Please refer to Section 1.5.4.6 Scan & Print to learn how to setup position and length for incoming scan data.
