ANSER CODING INC. 31 X1 User Interface

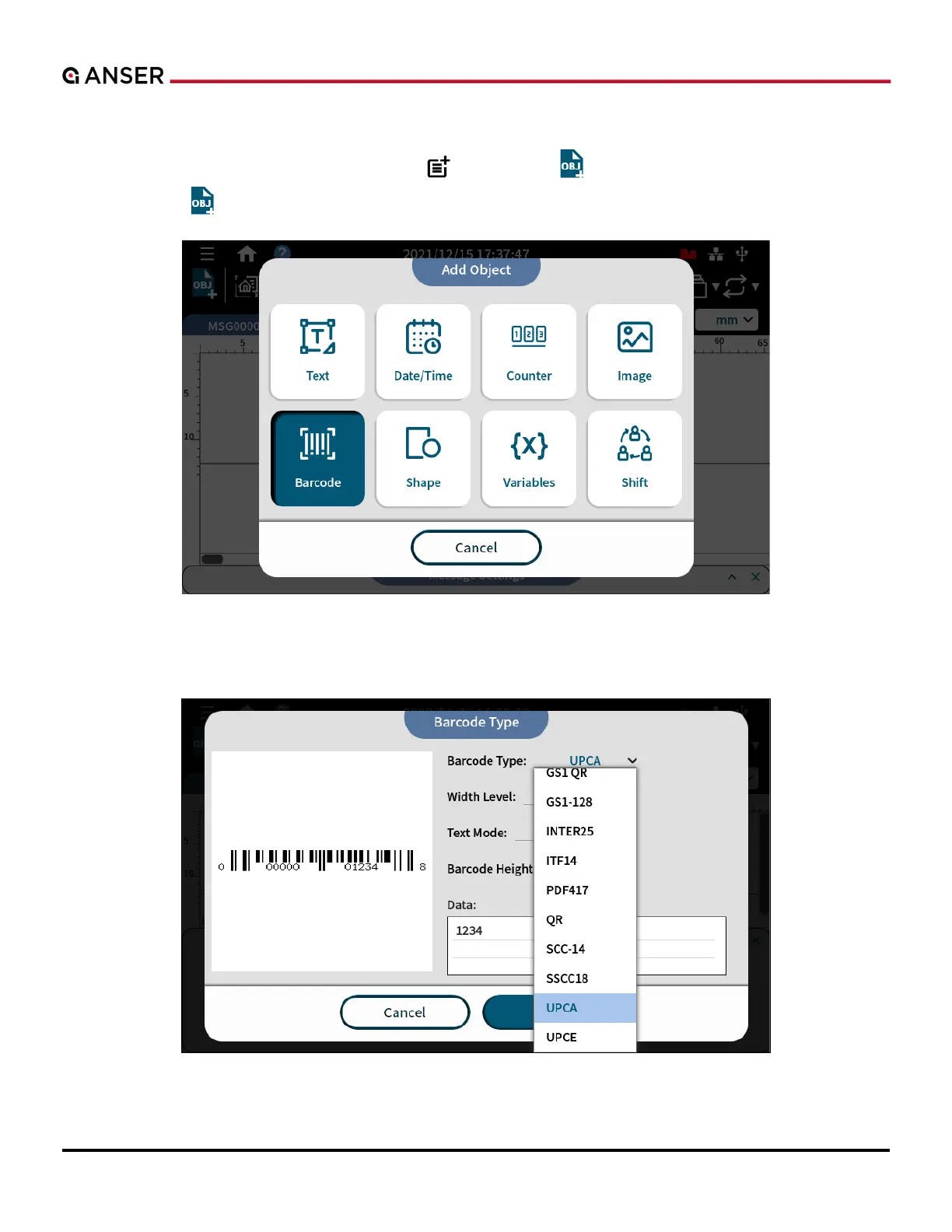

1.4.1.3 Add Object: Barcode

STEP 1:    > Barcode. If you are at X1 Message Editor,

press Add Object  > Barcode to select Barcode Type.

Figure 1-34. Add Object – Barcode

STEP 2: In Barcode Type page, select UPCA and related settings. Press Next.

Figure 1-35. Add Object – Barcode Type
