Arbiter Systems 1084A - Option 17 Output Connector

C.10 Option 17: Parallel BCD Output and Second RS-232C Port 133
Note: Table C.3 continued below.
41 40 Sec. Data Bit 18 −
42 10 Sec. Data Bit 16 −
43 4 Sec. Data Bit 14 −
44 1 Sec. Data Bit 12 −
45 400 mS Data Bit 10 −
46 100 mS Data Bit 8 −
47 40 mS Data Bit 6 −
48 10 mS Data Bit 4 −
49 4 mS Data Bit 2 −
50 1 mS Data Bit 0 −
*These pins can be configured for any of the listed functions, regardless of the main mode of
operation for Option 17.

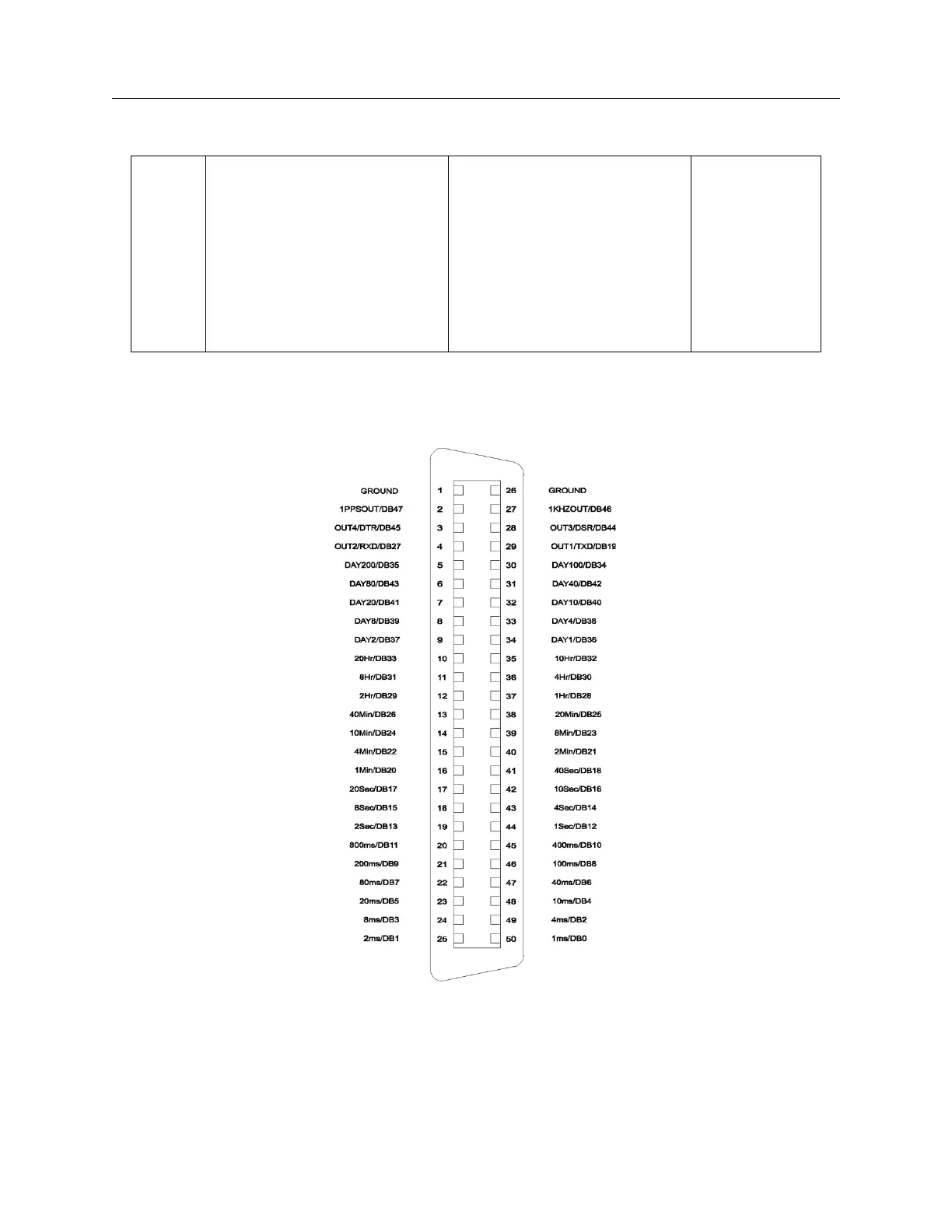

Figure C.11: Option 17 Output Connector
