i2000SR interface module Service Manual
Page 142 of 212 625798100.APS.5.doc
STEPS REFERENCES
1 Perform the controlled shutdown of
the Workcell
Refer to the “Operations Manual – SECTION 5 –
Operating Instructions” to execute the “Controlled
power shutdown” of the Workcell.
2 Disconnect the Workcell and i2000SR
IM from the AC power source.
3 Label the power connection to
indicate that service is in progress
and power must remain
disconnected.
4 At the Workcell I/O module Track
locate and turn OFF the track air tank
valve.
5 Follow Replacement of i2000SR IM
procedure to remove thei2000SR
Track. Place it on a suitable working
table.
6 Follow i2000SR IM belts replacement
procedure to separate the two spur
sections.

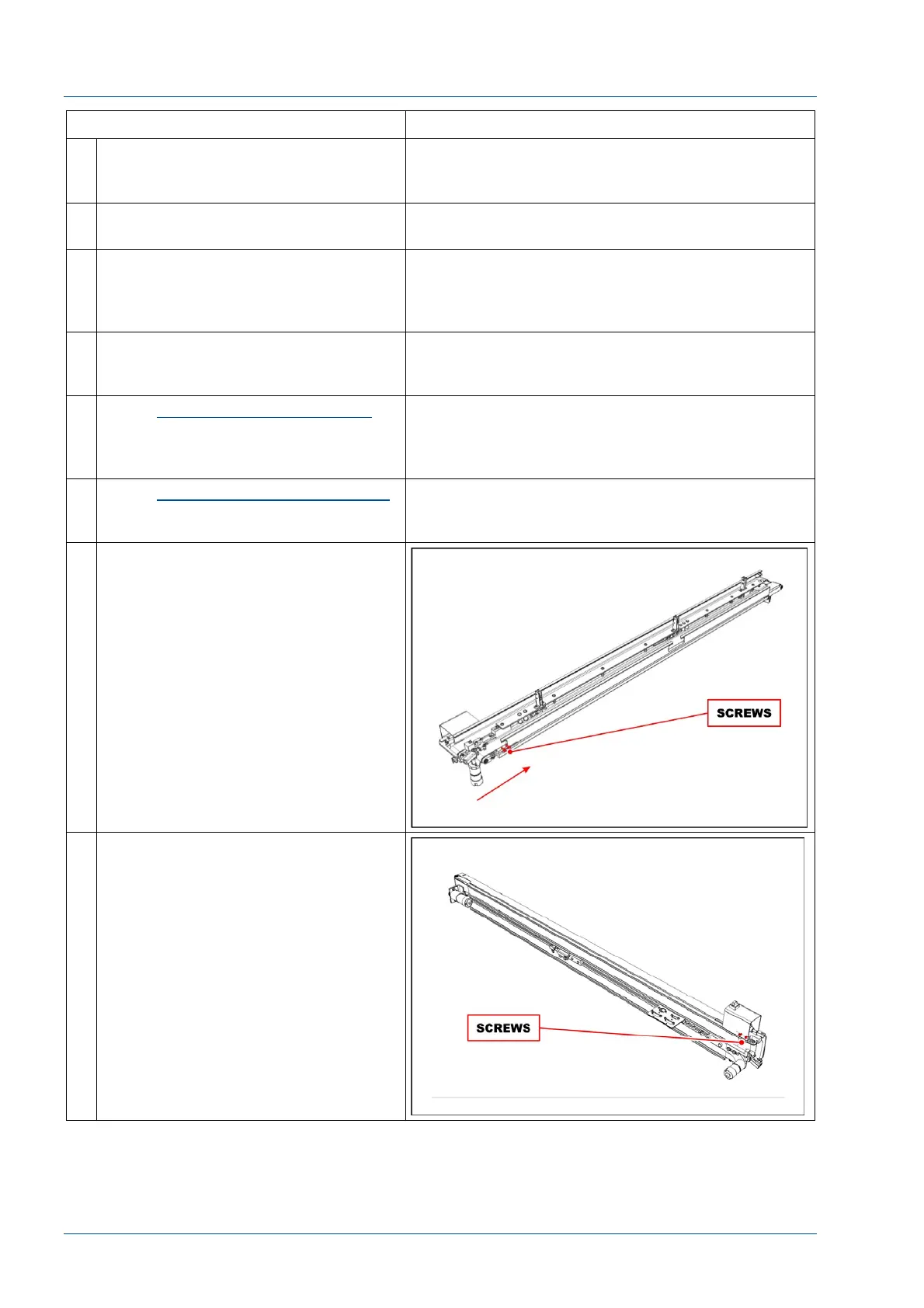

7 Loosen the two screws shown in the
figure to move the belt 3 idler pulley
group in the direction of the arrow.
Remove belt from lane 3.
8 Remove the three screws shown in
the figure to remove the i2000SR IM
power switch cover.
To Next Page
