Architect i2000SR - Page 143

Service Manual i2000SR interface module
625798100.APS.5.doc Page 143 of 212
STEPS REFERENCES

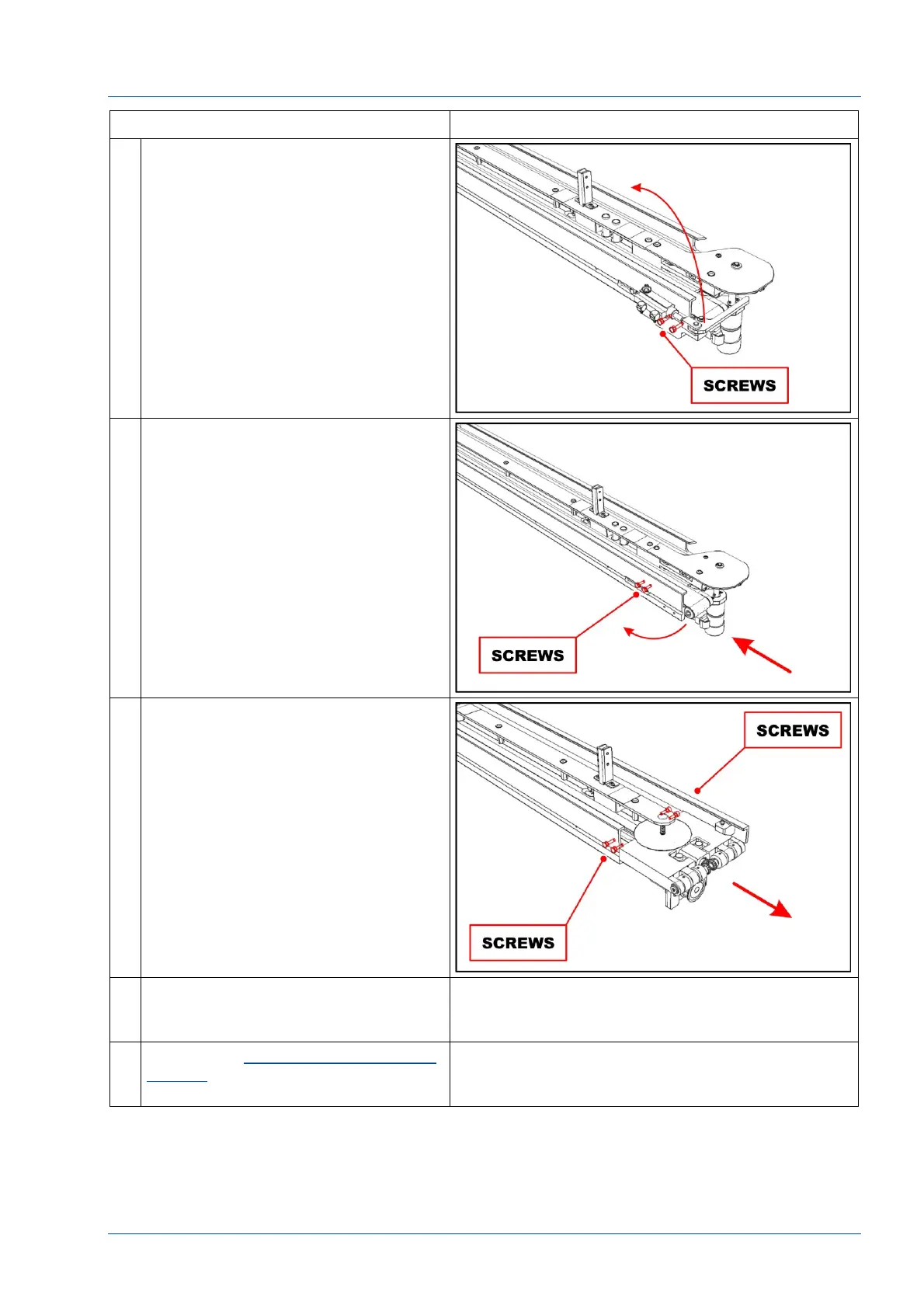

9 Loosen the two screws that fasten
Lane 4/Track Diverter Group and
remove it.
10 Loosen the two screws shown in the
figure to move the belt 4 idler pulley
group in the direction of the arrow.
Remove lane 4 belt.
11 Remove the four screws to move the
belt 3 & 4 drive group in the direction
of the arrow and replace it.
12 Perform the procedures above in
reverse order to reassemble the
i2000SR IM.
13 Refer to the Replacement of i2000SR
IM belts procedure to set belts
tension.
