Architect i2000SR - Page 168

i2000SR interface module Service Manual
Page 168 of 212 625798100.APS.5.doc
STEPS REFERENCES

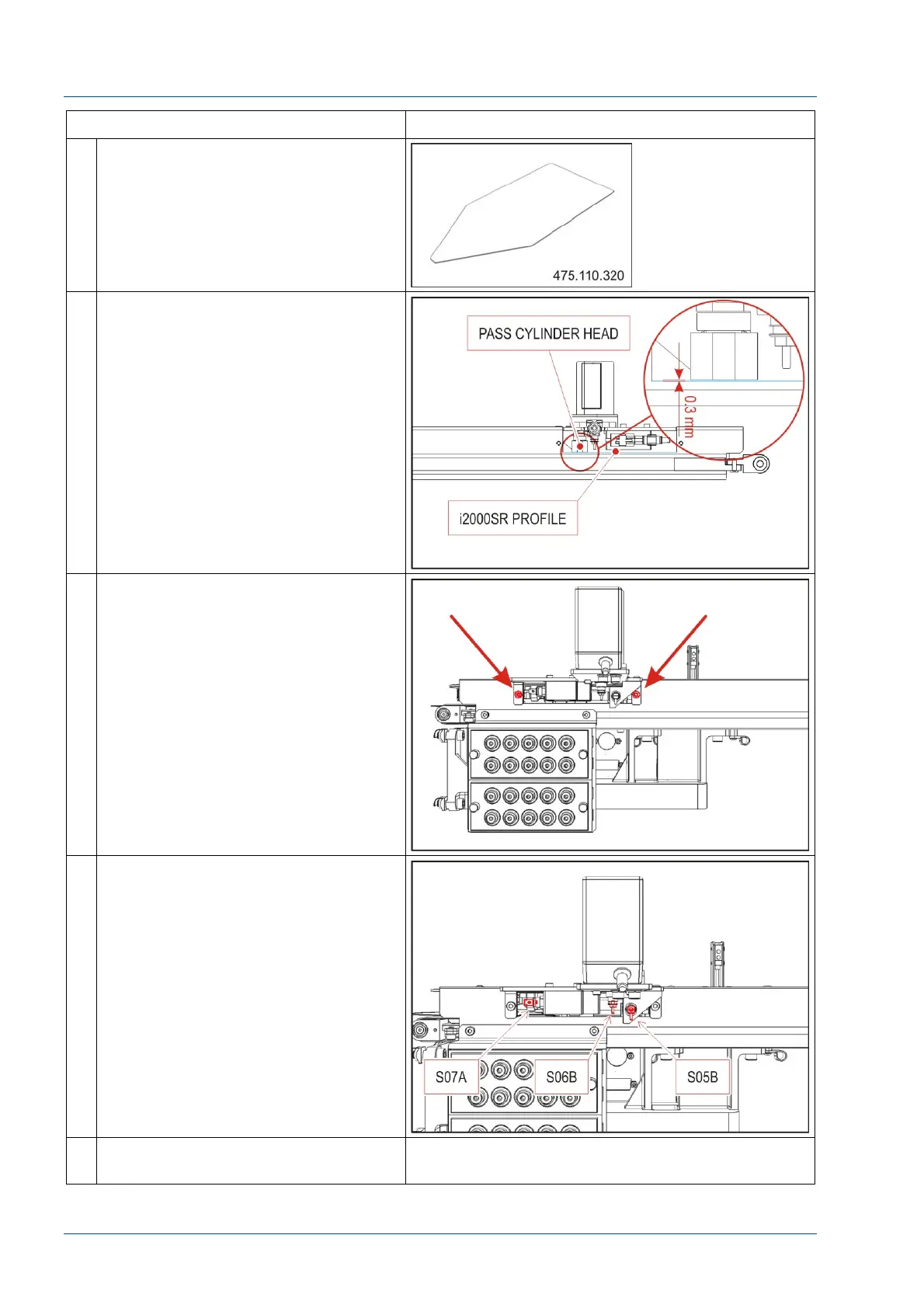

16 Use the Spur Positioning tool (P/N
475.110.320 (204148)) to test the
distance between the i2000SR
assembly and the bottom side of the
Pass Cylinder Head.
17 That thickness must be equal to
0.3 mm with +0.00 –0.02 mm of
tolerance.
If the thickness is bigger, the cylinder
head could rotate around itself
causing carrier rotation to fail. If it is
smaller, a movement fault may occur
due to the probable friction between
the cylinder head and the first lane
belt.
18 Loosen the two screws in the figure to
adjust the vertical position of the
spinning group.
19 Restore pneumatic connections.
20 Restore electric power to the
Workcell and i2000SR IM.
