i2000SR interface module Service Manual
Page 204 of 212 625798100.APS.5.doc
WARNING: Potential Biohazard. This is an activity or area
where you may be exposed to potentially infectious
material. Refer to “Section 4 - Hazards and Warnings
” of
the Accelerator Service Manual
Reduce exposure by using proper personal protection
equipment and cleaning surfaces with 0.1% sodium
hypochlorite (bleach).
CAUTION: Moving Parts
The safety cover protection is not guaranteed if the
security devices are removed or bypassed. Use caution to
prevent injury caused by moving parts..
WARNING: Electrical Shock Hazard. Possibility of electrical
shock exists if procedural or engineering controls are not
observed.
WARNING: Pinch hazard
CAUTION: Class 2 Laser Radiation when open. Do not stare
into beam. Avoid eye exposure to laser light.
STEPS REFERENCES
1 Stop the i2000SR IM. Refer to the “Operations Manual – SECTION 5 –
Operating Instructions” chapter to stop the
i2000SR IM in standalone or Workcell controlled
mode.

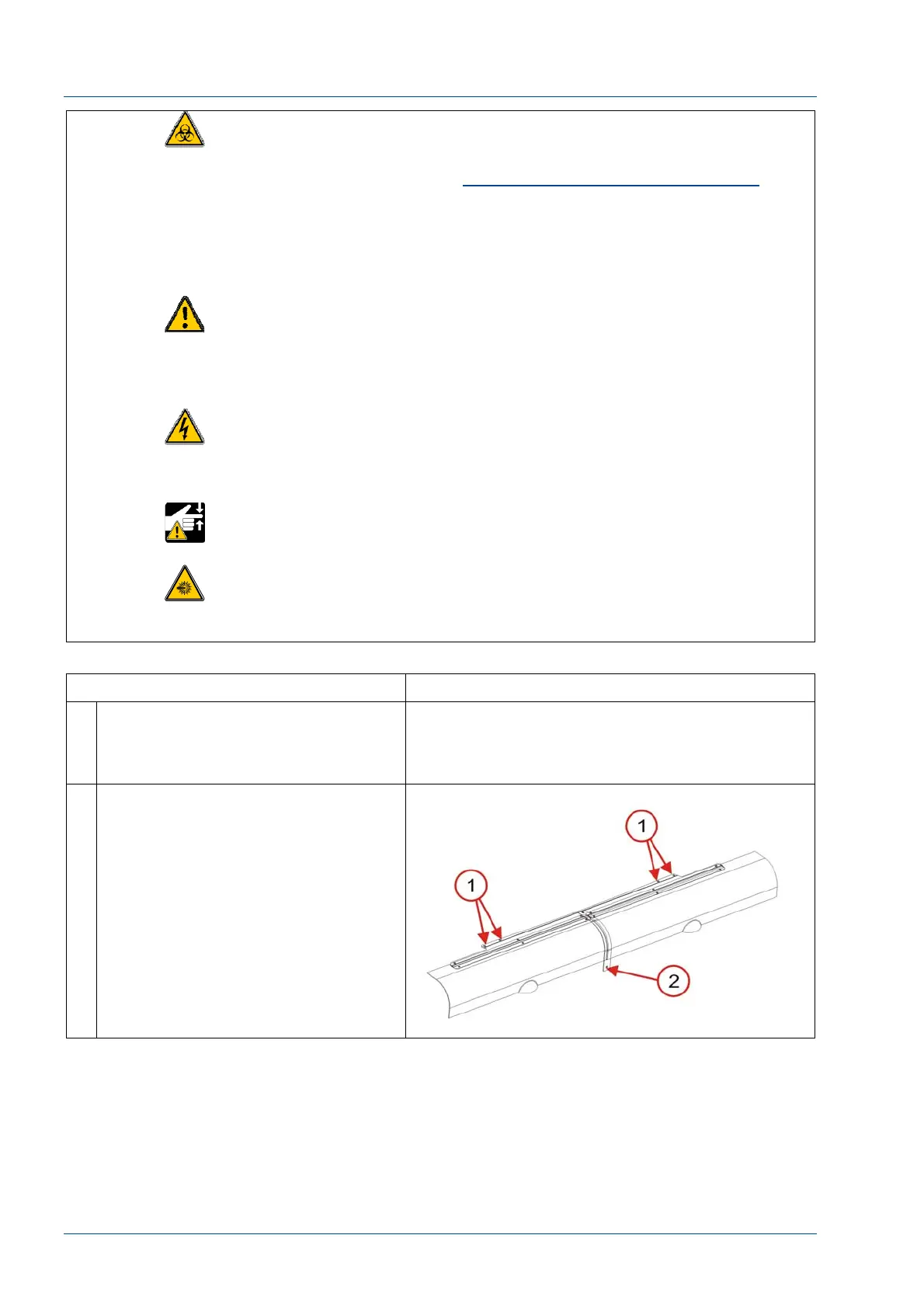

2 To access the gears located at the
ends of belts 1 and 2, the front and
center covers must be removed.
Remove the screw in the Center Rail
[2]
Remove the Hinge Mount (P/N
203621) and two front covers by
removing the four (4) countersink
screws [1].
To Next Page
