Architect i2000SR - Page 85

Service Manual i2000SR interface module
625798100.APS.5.doc Page 85 of 212
of the i2000SR IM, ensure that there is an additional length
of air supply tubing.

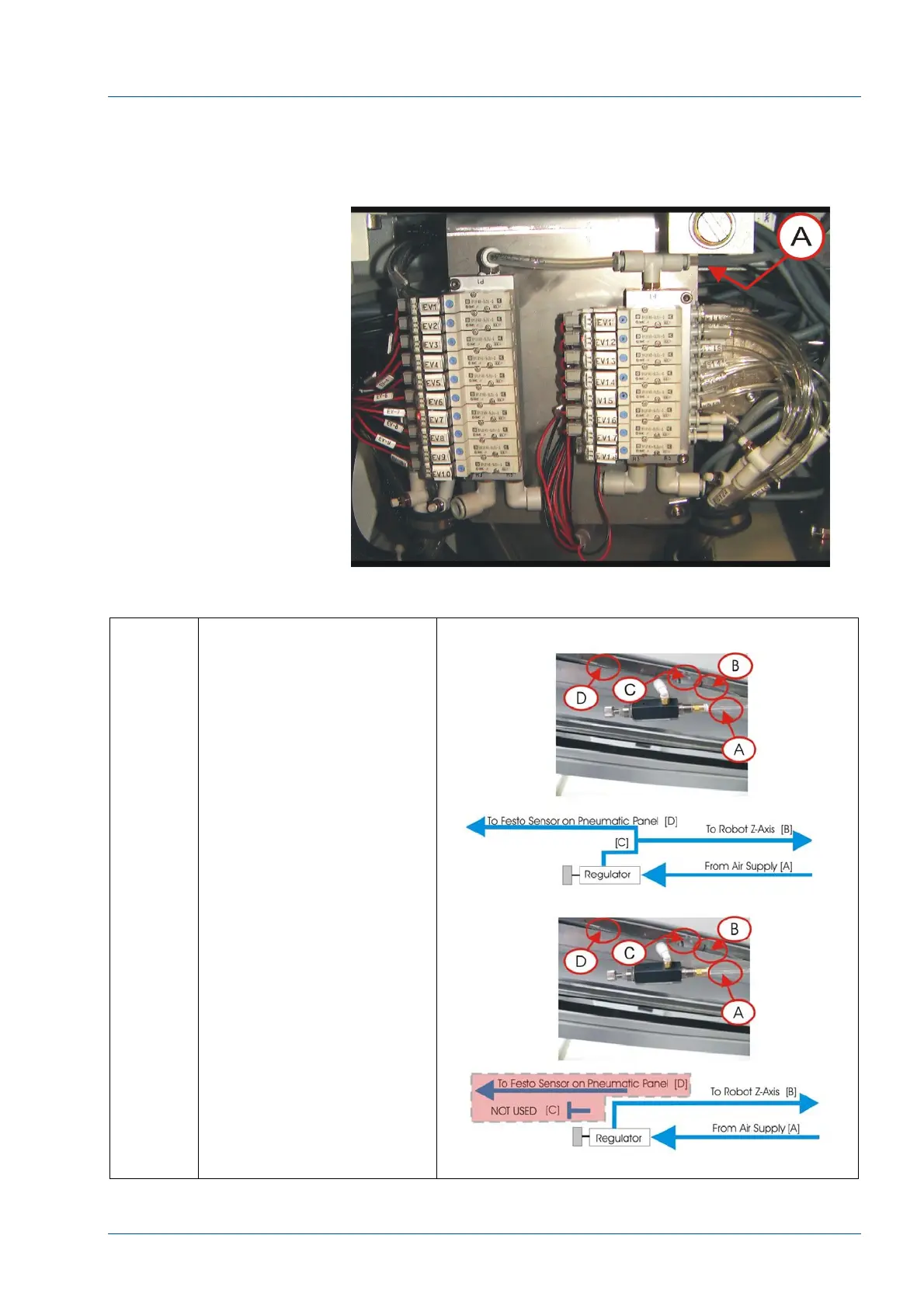

Figure 70 – Pneumatic Panel
Bypass
Festo
Sensor
Tubing
1. At the IOM, open the
rear cover.
2. At the left end,
locate the Input Output
Robot Z axis pressure
regulator.
3. At the side port,
follow the tubing to the TEE
fitting.
4. Disconnect the “To
Robot Z-axis” [B] tubing.
5. At the Regulator side
fitting, disconnect the
tubing and connect the “To
Robot Z-axis [B]
6. Remove and discard
the TEE fitting.
7. Using tape, label the
“To Festo Sensor on
Pneumatic Panel” [D] as
“Not Used”.
• At the site air supply, turn ON the air valve.
