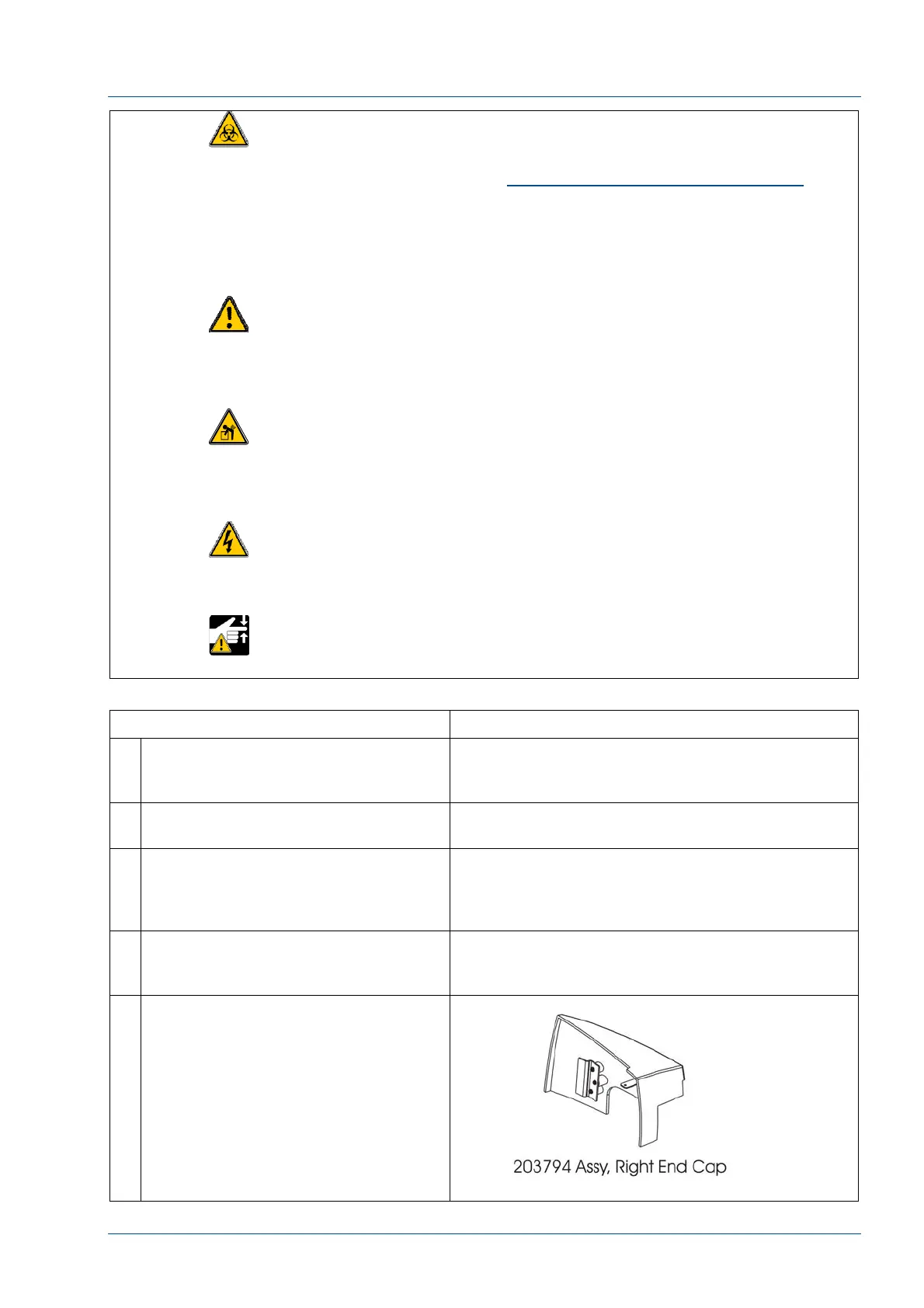

Service Manual i2000SR interface module
625798100.APS.5.doc Page 89 of 212
WARNING: Potential Biohazard. This is an activity or area
where you may be exposed to potentially infectious
material. Refer to “Section 4 - Hazards and Warnings
” of
the Accelerator Service Manual
Reduce exposure by using proper personal protection
equipment and cleaning surfaces with 0.1% sodium
hypochlorite (bleach).
CAUTION: Moving Parts
The safety cover protection is not guaranteed if the
security devices are removed or bypassed. Use caution to
prevent injury caused by moving parts.
CAUTION: Lifting Hazard
Identifies an activity that may require lifting or moving a
heavy object. Obtain assistance when moving or using an
appropriate lifting device.
WARNING: Electrical Shock Hazard. Possibility of electrical
shock exists if procedural or engineering controls are not
observed.
WARNING: Pinch hazard
STEPS REFERENCES
1 Perform the controlled shutdown of
the Workcell
Refer to the “Accelerator APS Operations Manual –
SECTION 5 – Operating Instructions” to execute
the “Controlled power shutdown” of the Workcell.
2 Disconnect the Workcell and i2000SR
IM from the AC power source.
3 Label the power connection to
indicate that service is in progress
and power must remain
disconnected.
4 At the Workcell I/O module Track
locate and turn OFF the track air tank
valve.
5 Remove the one (1) 14494-306 .190-
32 screw, to remove the (202990
original color or 203794 gray) right
end cap.
NOTE:
The front bottom edge is captured in
the window trim between lanes 2 and
3.
