i2000SR interface module Service Manual
Page 90 of 212 625798100.APS.5.doc

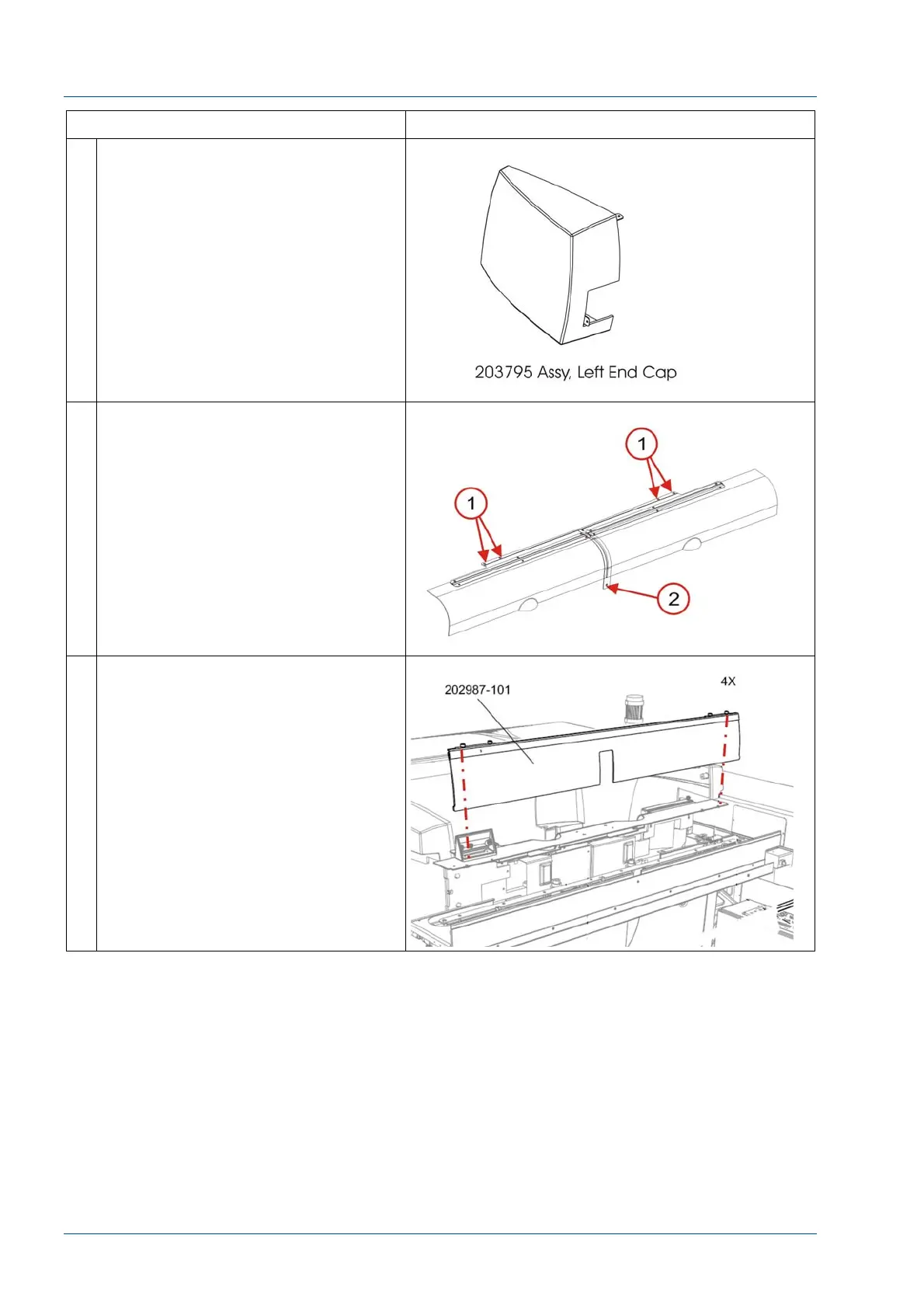

STEPS REFERENCES
6 Use a 14494-306 190-32 screw to
attach the End Cap to the window
closeout.
7 Remove the screw in the Center Rail
[2]
Remove the Hinge Mount (P/N
203621) and two front covers by
removing the four (4) countersink
screws [1].
8 Remove the center cover by
loosening the four (4) ¼ turn screws.
To Next Page
