ARCOMA PRECISION i5 - Page 96

User Interface
Wall stand Control Elements
3.8.1.1 Wall Stand Hand Control Unit
Hand control
C
B
D
E
F
F
A
C
B
G
G
H
H
4000

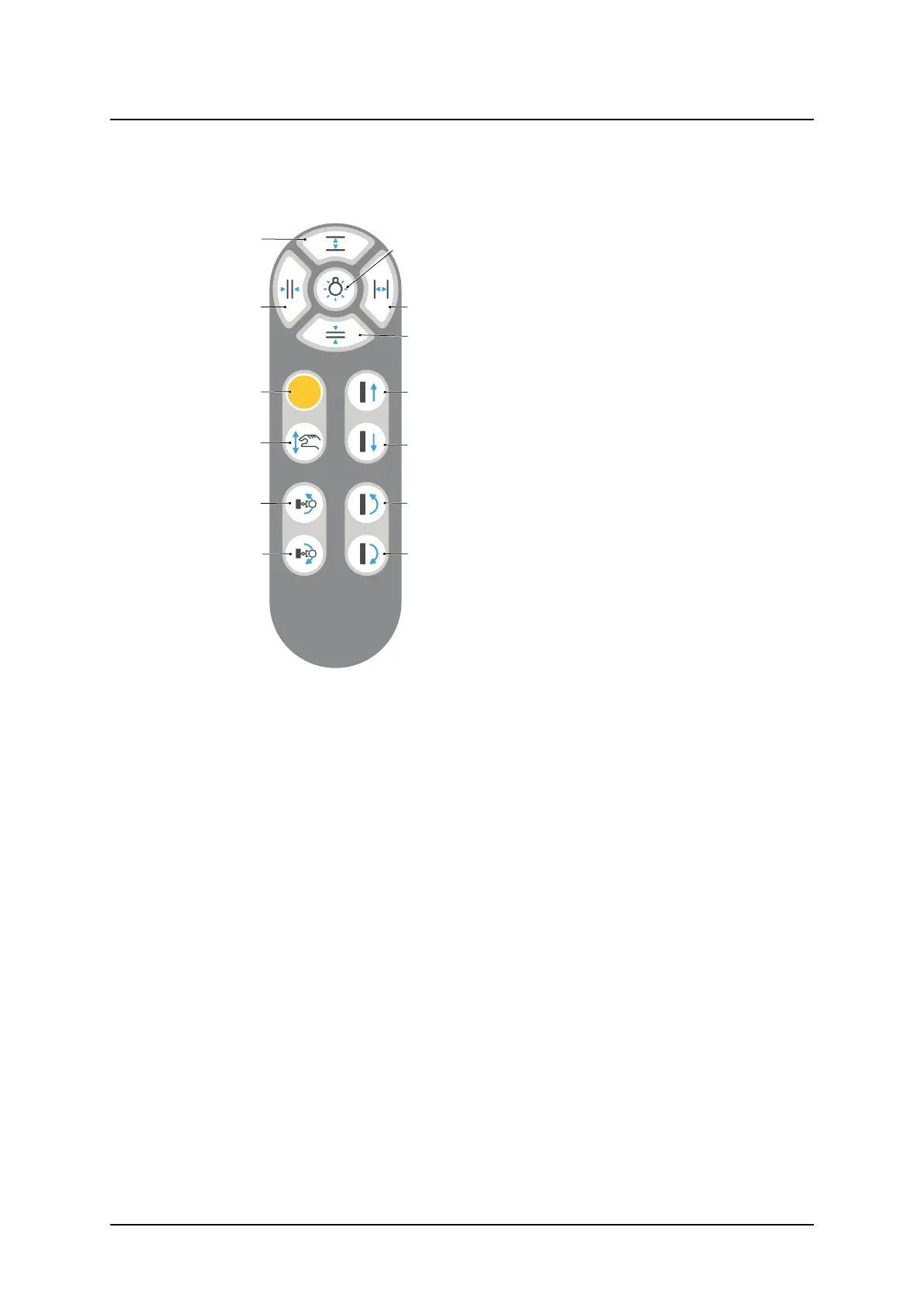

Fig. 3-49 Hand control
A. Collimator light on/off
B. Adjustment height collimation
C. Adjustment width collimation
D. Servo button, see 3.6 Servo Button
E. Break release for manual movement of
detector
F. Pendulum mode wall stand
G. Detector up/down, Motorized
H. Detector tilt and OTC tracking, -20 to 90°
ARCOMA AB 1000-095-051-EN Rev. 1.1
Operation Manual
SWEDEN Page 88 2020-06-16
