3-13
3
CD136
CD140

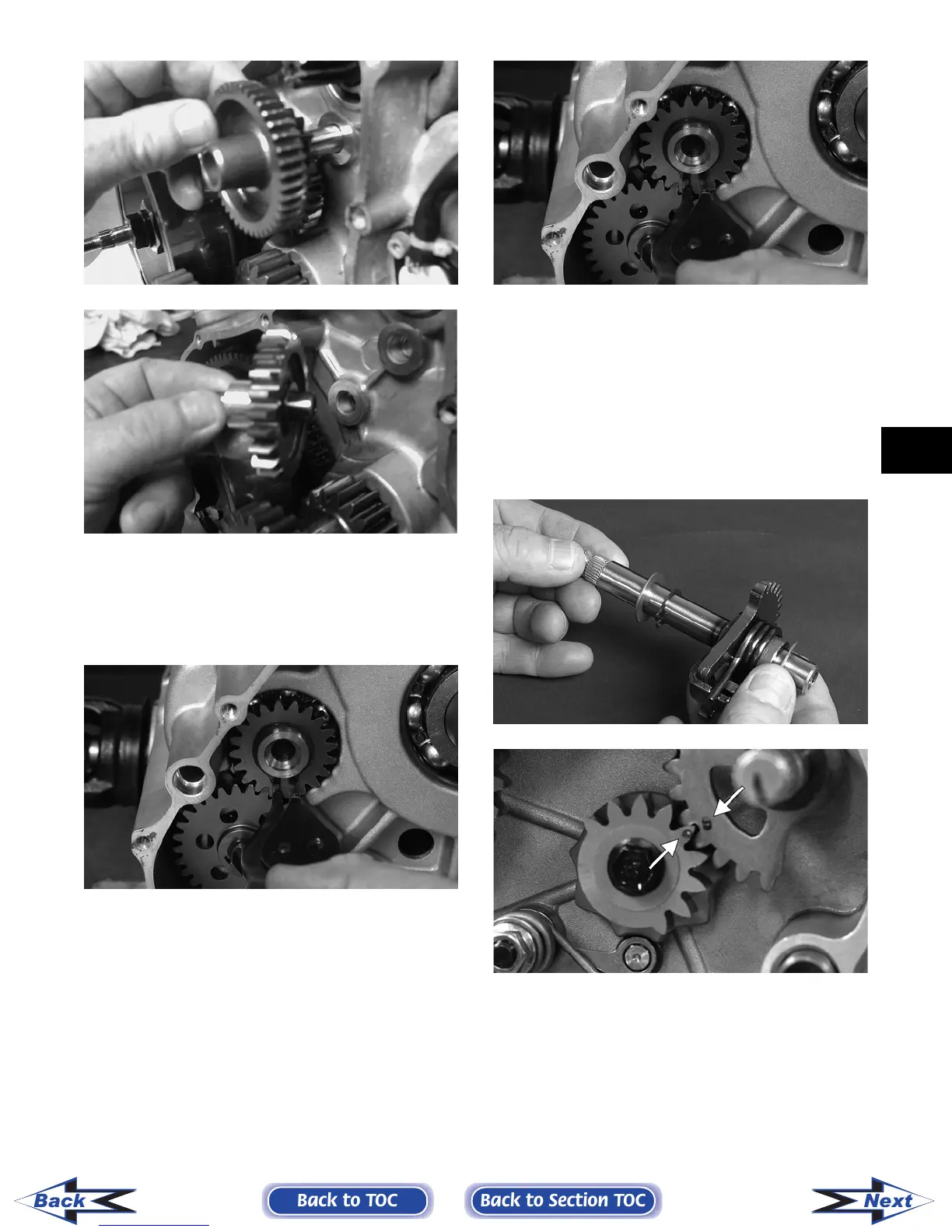

12. Remove the snap ring securing the water pump
drive gear; then remove the gear noting the
direction of the sides of the gear for installing
purposes. Account for the drive gear alignment
pin.
CD944
13. Remove the snap ring securing the water pump
driven gear; then remove the gear noting the
direction of the sides of the gear for installing
purposes. Account for the driven gear alignment
pin.
CD952A
NOTE: There is an oil passage beneath the
driven gear/drive gear assembly. This passage
should be plugged prior to removing the driven
gear and drive gear. Failure to do so could result in
the loss of an alignment pin into the crankcase.
14. Remove the shift shaft noting the timing marks
for assembling purposes. Account for two wash-
ers.
FI302
PR430A
15. Remove the gear shift cam plate; then remove
the cam stopper and cam stopper spring.
Account for two washers.
