3-17
3
CD987
CD993

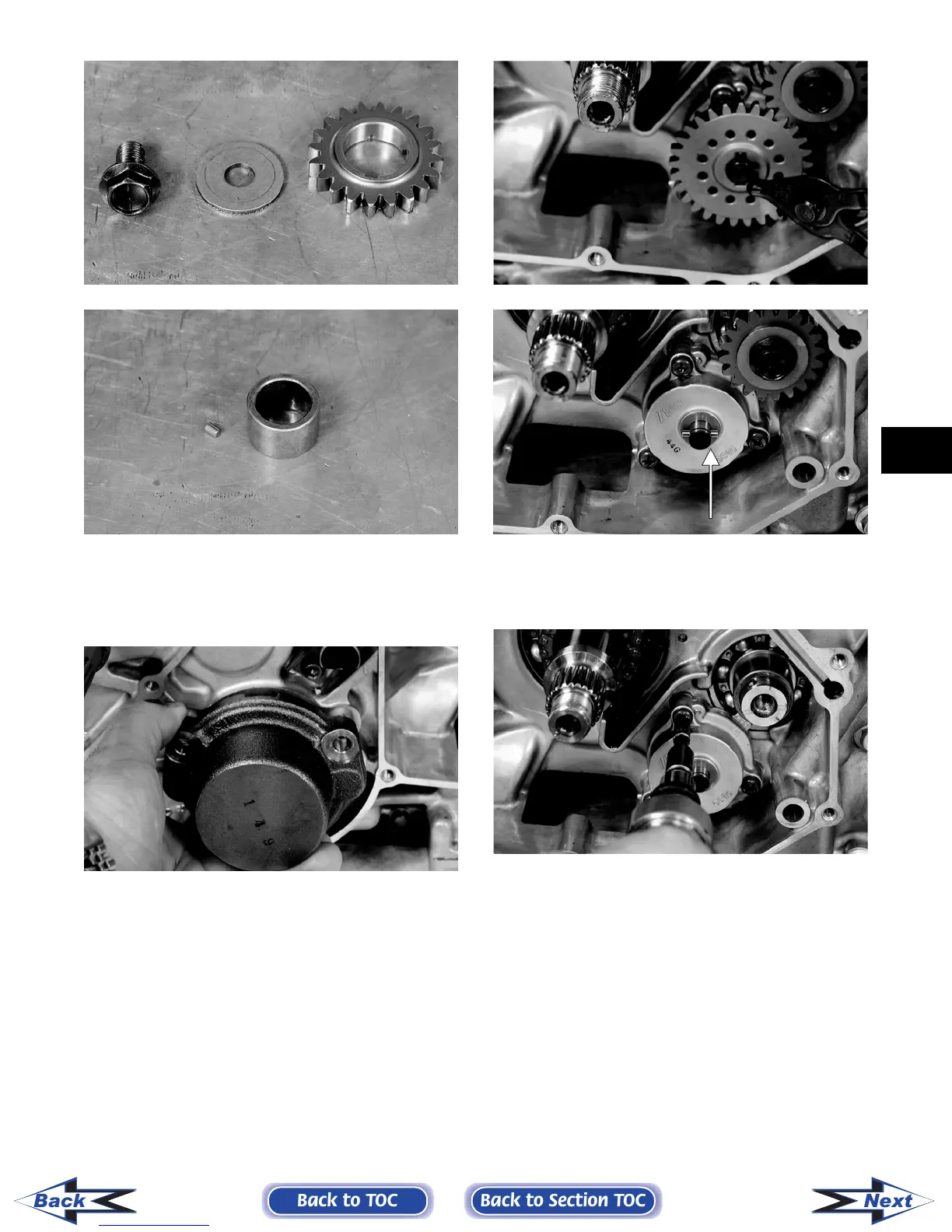

13. Using an impact driver, remove the Allen-head
screws securing the final drive carrier bearing
housing (E); then remove the housing and
account for two alignment pins.
CD999
14. Remove the snap ring securing the oil pump
driven gear (A); then remove the gear noting the
direction of the sides of the gear for installing
purposes. Account for a pin and a washer.
CD984
CD895A
15. Using an impact driver, remove the three Phil-
lips-head screws securing the oil pump; then
remove the pump.
CD988
