3-16
CC596

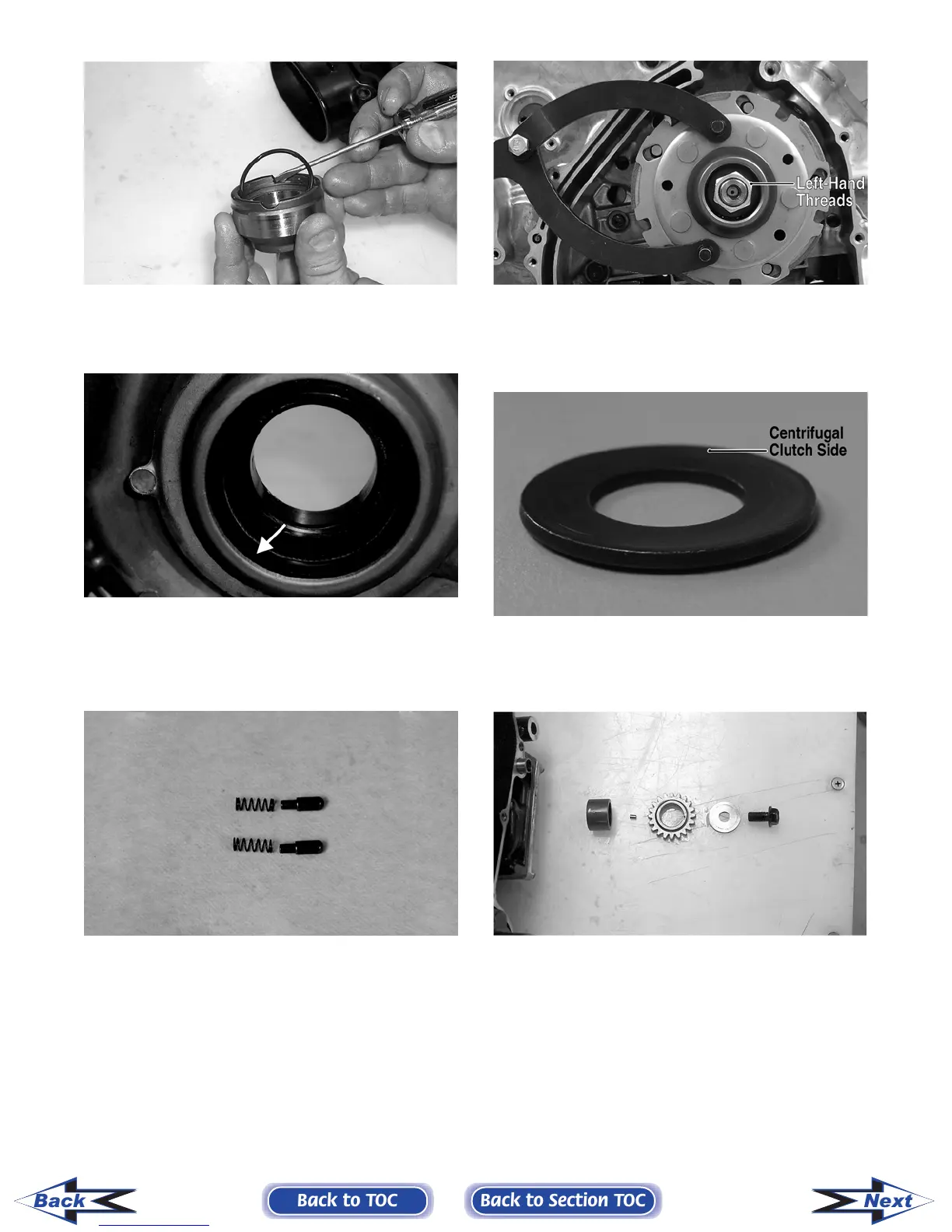

NOTE: Account for and inspect the clutch hous-
ing seal.
CF088A
10. Remove the two Allen-head screws securing the
shift indicator sensor; then remove the sensor.
Account for two neutral contact pins and two
springs.
CD997
11. Remove the nut (left-hand threads) securing the
clutch shoe assembly (C). Account for a washer.
FI279A
NOTE: The washer is also directional. The flat
side of the washer must face toward the centrifu-
gal clutch assembly when installing.
FI336A
12. Remove the cap screw securing the oil pump
drive gear (B). Account for a cap screw, washer,
pin, and spacer.
CC606
