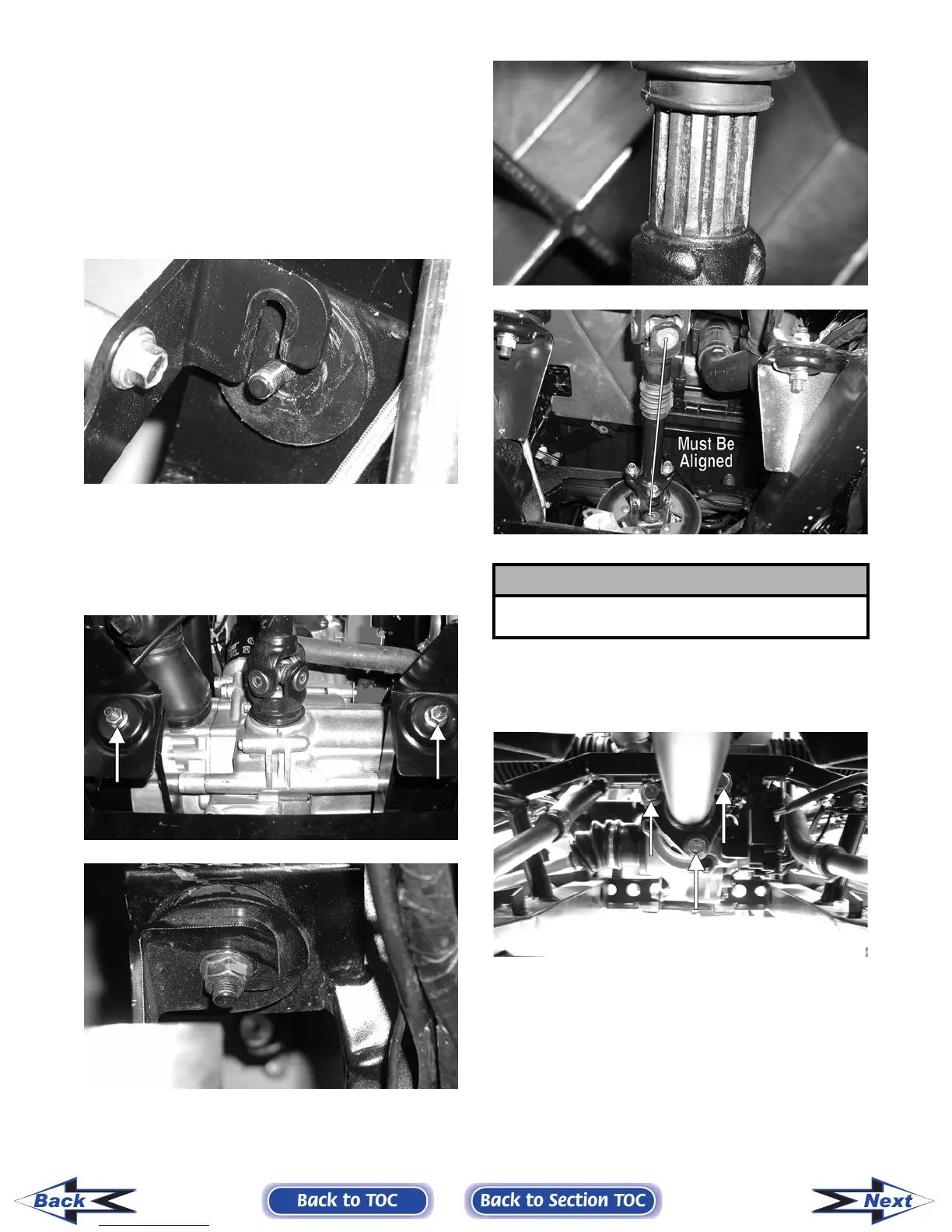

3-52
NOTE: The rear engine mounting bracket and
rear engine mounts should be attached to the
engine. The front engine mounting bracket should
be attached to the engine, and the front engine
mounts should be in the frame.
2. Align the rear engine mount studs with the holes
in the frame and slowly lower into place. The
front engine mounting bracket will then slip
over the engine mount studs.
PR146
3. Install the flange nuts on the rear engine mount
studs; then secure the front engine mounting
bracket to the front engine mount studs with two
flange nuts. Tighten the four flange nuts to spec-
ifications.
PR153A
PR147
4. Apply multi-purpose grease to the driveshaft
splines; then align the flange marks and slide the
splines into the slip-joints.
PR148
PR151A
5. Install the cap screws securing the drive-line
couplers to the drive flanges and tighten to spec-
ifications.
PR120A
6. Set the exhaust pipe in place; then install the
muffler and align the assembly to the engine.
Install two cap screws securing the exhaust pipe
to the cylinder head and tighten to specifica-
tions.
7. Install the inlet boot on the V-belt housing; then
install the exhaust duct connecting the outlet
housing to the V-belt housing. Tighten all
clamps securely.
! CAUTION
The drive-line yokes must be aligned (timed) or dam-
age will occur to the universal joints and gears.
