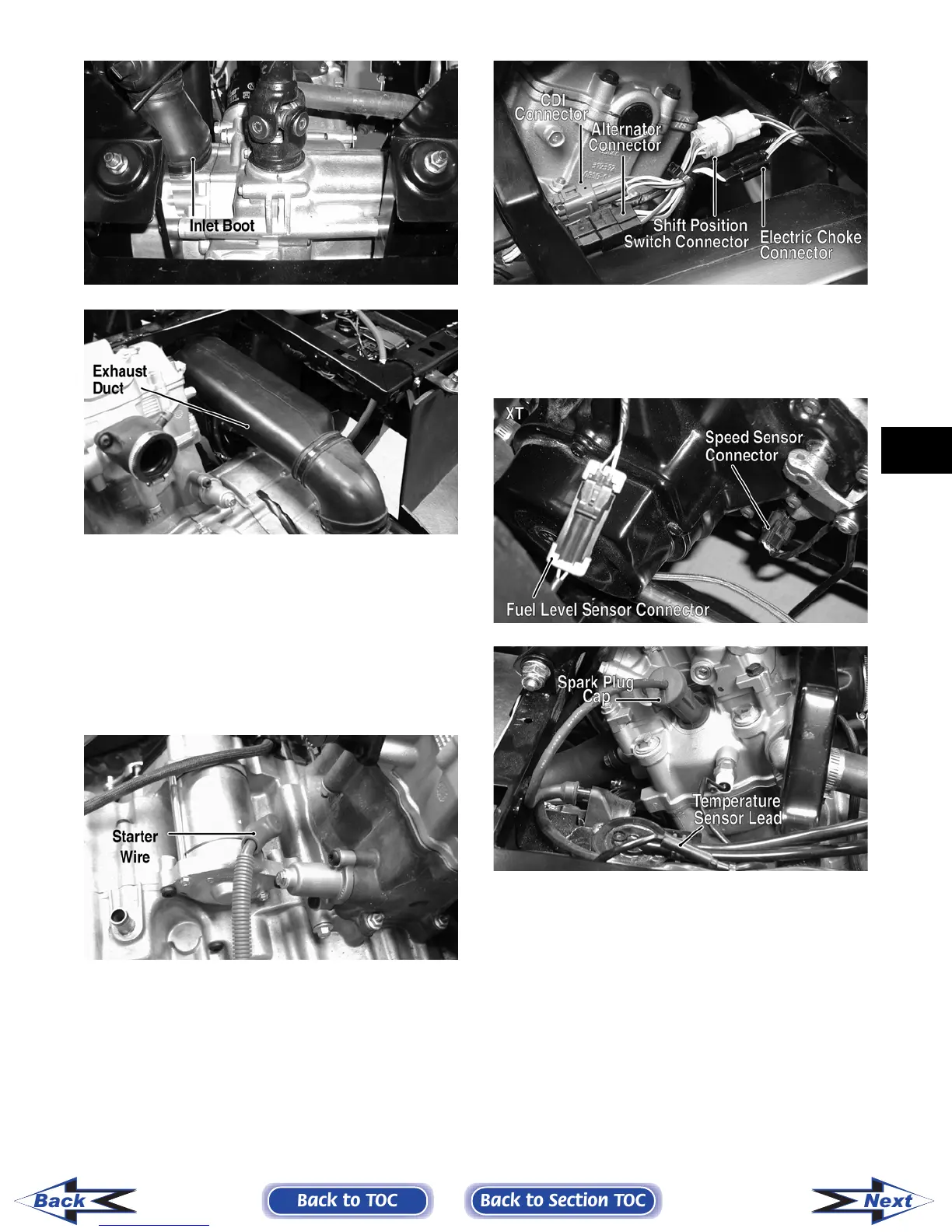

8. Connect the lower coolant hose to the water
pump housing; then connect the upper coolant
hose to the thermostat housing. Tighten the hose
clamps securely.
9. Install the starter wire on the starter and tighten
the nut securely; then connect the CDI connec-
tor, alternator connector, shift position switch
connector, and electric choke connector.
PR145A
PR128A
10. From the left-side, connect the speed sensor
connector (XT), fuel level sensor connector
(XT), and temperature sensor lead; then install
the spark plug cap.
PR155B
PR130A
NOTE: Make sure the main harness ground and
battery ground wires are installed and secured in
the proper location with the unpainted cap screw.
