3-54
PR474A

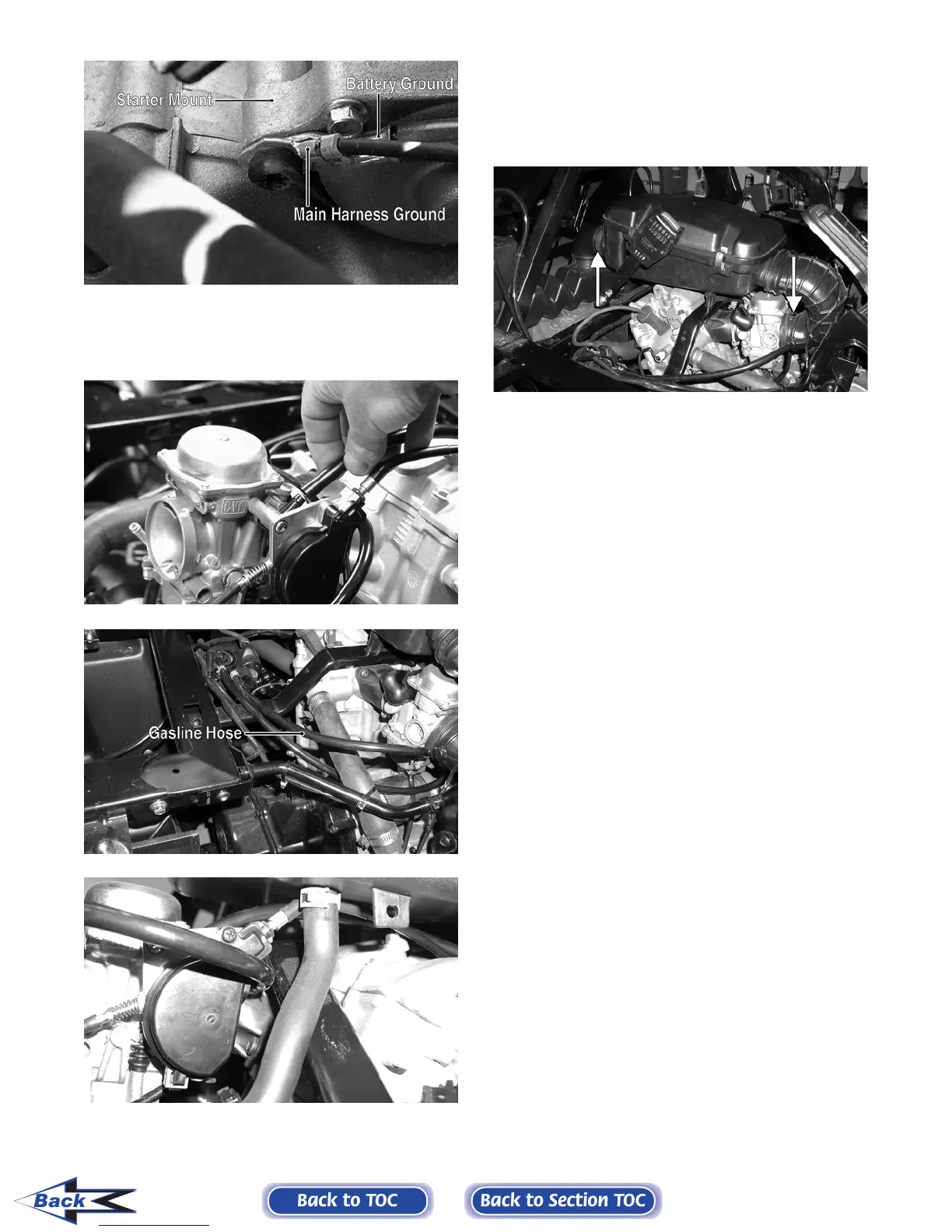

11. Install the carburetor and tighten the intake boot
clamp securely; then connect the gasline hose,
vacuum line, and throttle cable.
PR117
PR140B
PR154
12. Place the air filter assembly into position and
secure with the self-tapping screws; then con-
nect the intake boot to the carburetor and the
inlet housing boot to the air filter housing.
Tighten the clamps securely.
PR127A
13. Place the shifter assembly into position and
secure with the four machine screws. Tighten
securely.
14. Connect the shifter linkage to the transmission
shift arm placing the washer and bushing in
appropriate locations; then secure with the
E-clip.
NOTE: Before operating vehicle, check and
adjust shifter linkage as required (see Section 2).
15. Fill the engine/transmission with the appropriate
lubricant.
16. Fill the cooling system with the appropriate
coolant.
17. Connect the positive battery cable to the battery;
then connect the negative cable.
18. Install the left-side and right-side seat-bases;
then install the center console and seats. Make
sure the seats lock securely.
19. Start the engine and warm up to operating tem-
perature. Check for fluid leaks; then shut off
engine and check oil and coolant levels (see
Section 2).
