4-7
4
PR163
PR164

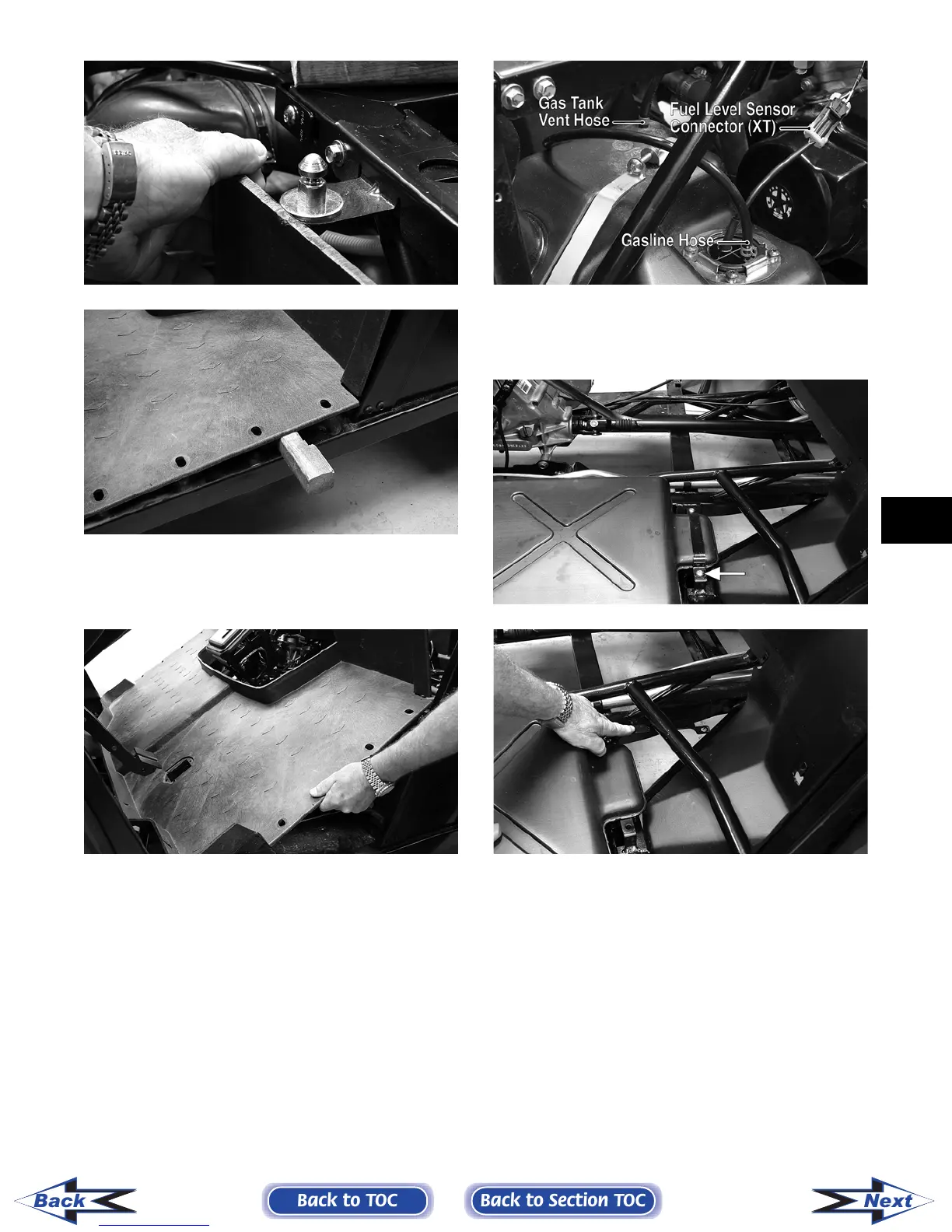

4. From the opposite side of the vehicle, repeat
step 3; then lift the rear of the floorboard up and
lift the floorboard out of the vehicle.
PR165
5. Disconnect the vent hose, gasline hose, and fuel
level sensor connector (XT); then cap the vent
fitting and gas hose fitting.
PR166D
6. Remove the outer cap screw securing the front
tank hold-down; then swing the hold-down to
the left.
PR167A
PR170
7. Remove four press-nuts securing the gas cap
inset; then remove the gas cap and inset. Install
the gas cap.
Back to TOC
Back to Section TOC
Next
Back
