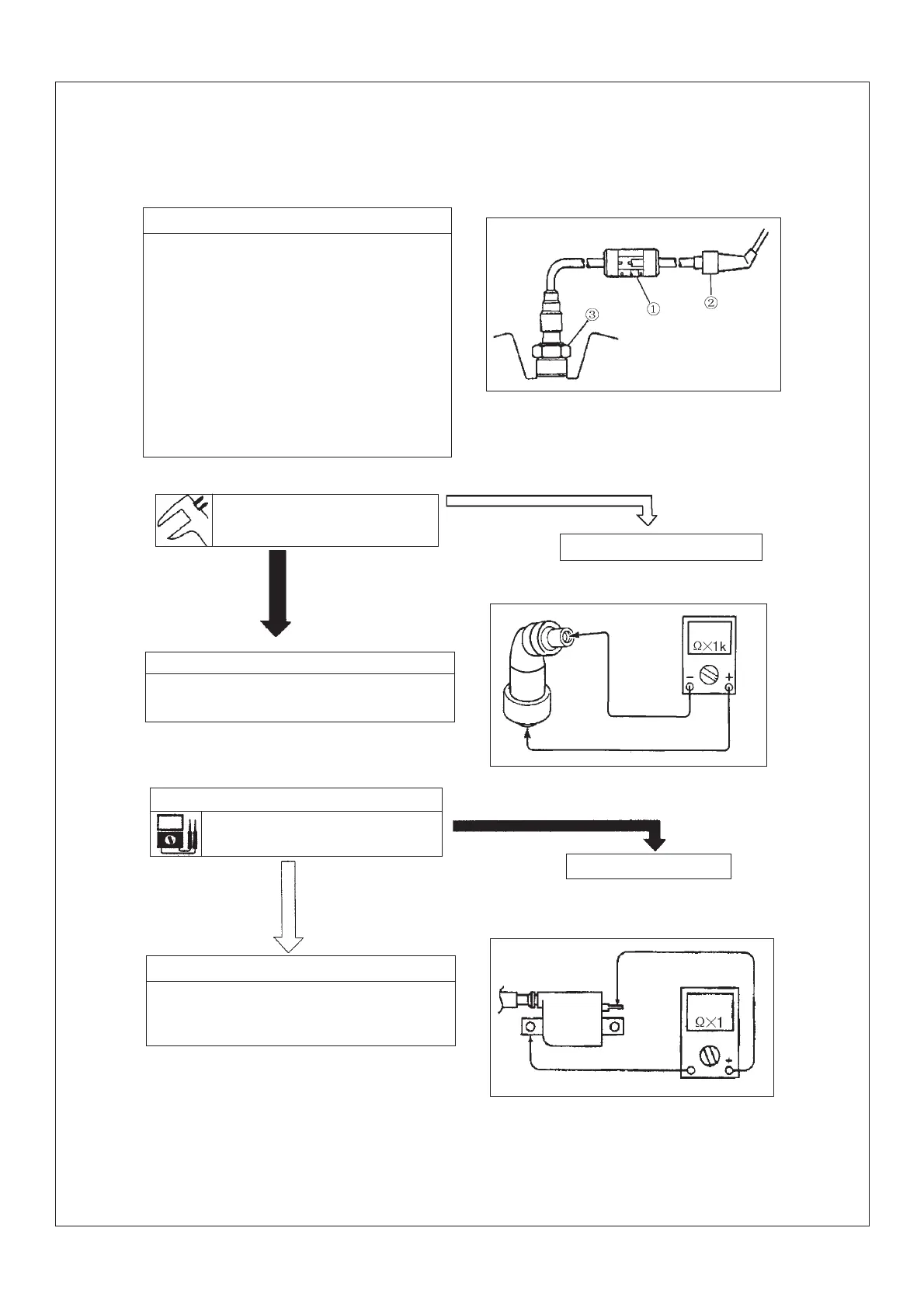

2.Ignition spark clearance
.Remove the spark plug cap from spark plug
.Connect as shown in figure
¢ÙSpark testing instrument
¢ÚSpark plug cap
¢ÛSpark plug
.Rotate the main switch to “ON”
.Check the ignition spark clearance.
.Press down the starting switch to start the engine.
And increase the spark clearance until the engine
can not be started.
Min spark clearance
6.0mm(0.24in)
Not conforming to specification
or no spark
Conforming to specification
Ignition system has no problem
conforming to specification
.Inspect if the resistance of spark plug conform to specification
Not conforming to specification
Replace spark plug cap
3.Resistance of spark plug cap
.Remove the spark plug cap
.Connect the pocket multimeter to spark plug cap
4.Resistance of ignition coil
.Remove the ignitioin coil connector from cable
.Connect the pocket multimeter (¦¸¡Á1)to ignition
coil.
Resistance of spark plug cap:20¡æ(68¡ã
F)4-7K ¦¸
