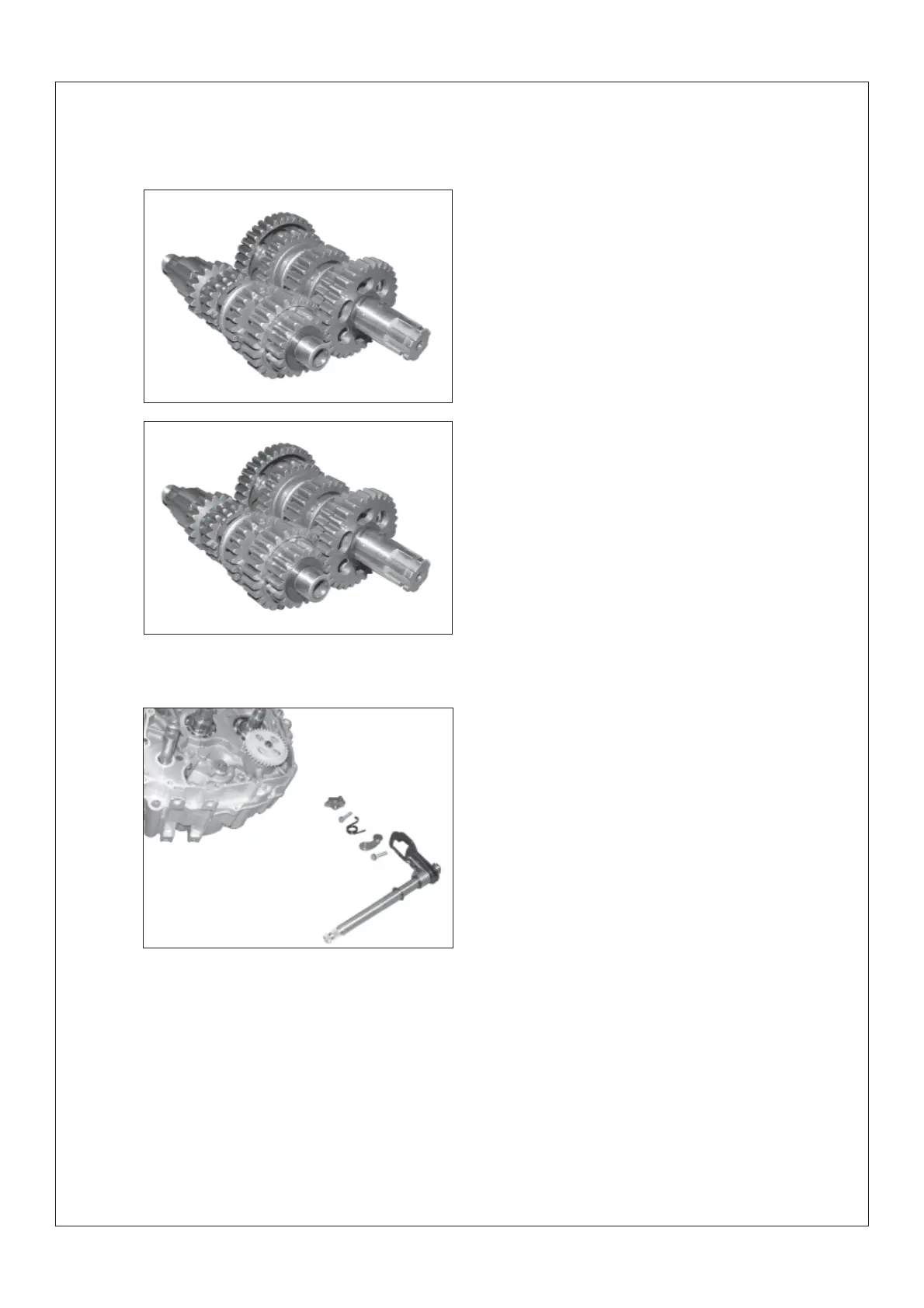

2)Inspection
.Gear (refer to shift mechanism and output
gear)
.Engaging jaw position
If cracks ,damage,wear,replace it.
Caution
When replacing the output gear,be sure to ad-
just the adjusting washer of output gear
3)Inspection
.Movement of gear(shift mechanism)
If not smooth in operation,replace it.
25.Shift shaft and limit lever
1)Inspection
.Shift shaft
.Hook plate
If bent,worn,damaged,replace it.
2)Inspection:
.Limit lever
If not smooth in operation,replace it
.If bent or damaged,replace it.
3)Inspection
.Shift torsion spring(on the shift shaft)
.Tension spring(Hook plate)
.Limit torsion spring(On Limit lever)
If worn,damaged,replace it.
26.Disengaging mechanism of clutch Inspec-
tion
.Upper and lower cam plates
.Steel ball stand/steel ball
.Compressing spring
If worn,scraped,damaged,replace it
