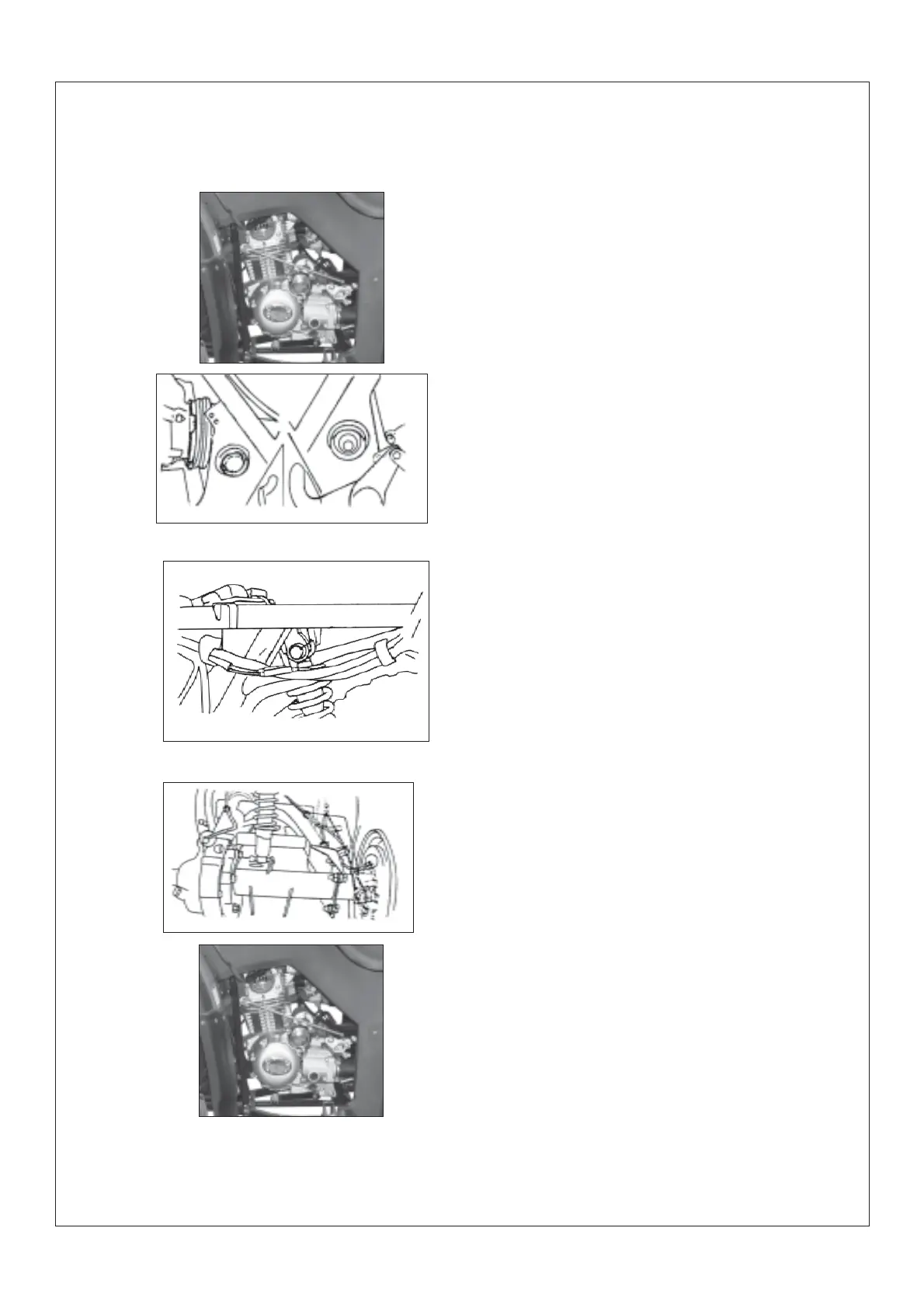

7. Fasten:
¡¤Bolt (Installation position of engine-rear
lower)
¡¤Bolt(Installation position of engine-rear
lower)
¡¤Bolt(Installation position of engine-front)
¡¤Bolt(Installation position of engine-top)
¡¤Coupling bolt of rear arm(Rear arm shaft-
left)
¡¤Coupling bolt of rear arm (Rear arm shaft-
ring)
¡¤Rear arm nut
Bolt (Installation position of engine-rear lower)
33Nm(3.3m.bg.24ft.lb)
Bolt(Installation position of engine-rear upper)
33Nm(3.3m.bg.24ft.lb)
Bolt(Installation position of engine-front)
48Nm(4.8m.bg.35ft.lb)
Bolt(Installation position of engine-top)
33Nm(3.3m.bg.24ft.lb)
Coupling bolt of rear arm(rear arm shaft-left)
130Nm(13m.bg.4.3ft.lb)
Coupling bolt of rear arm(rear arm shaft-right)
0.6Nm(0.6m.bg.94ft.lb)
Rear arm nut:
130Nm(13m.bg.94ft.lb)
Bolt(rear shock absorber-top):
50Nm(5.0km.bg.36ft.lb)
8. Mount:
Dust cap of rear arm shaft
9. Connect:
¡¤Breather tube(rear drive)
Refer to “Diagram of vehicle” in section 6 of
chapter 1.
10. Connect:
¡¤Spark plug terminal
¡¤CDI magneto terminal
¡¤“Reverse” switch terminal
¡¤“Neutral” switch terminal
¡¤Breather tube(rankcase)
¡¤Brake cable
Refer to “Diagram of vehicle” in section 6 of
chapter15-84
