9.Installment:

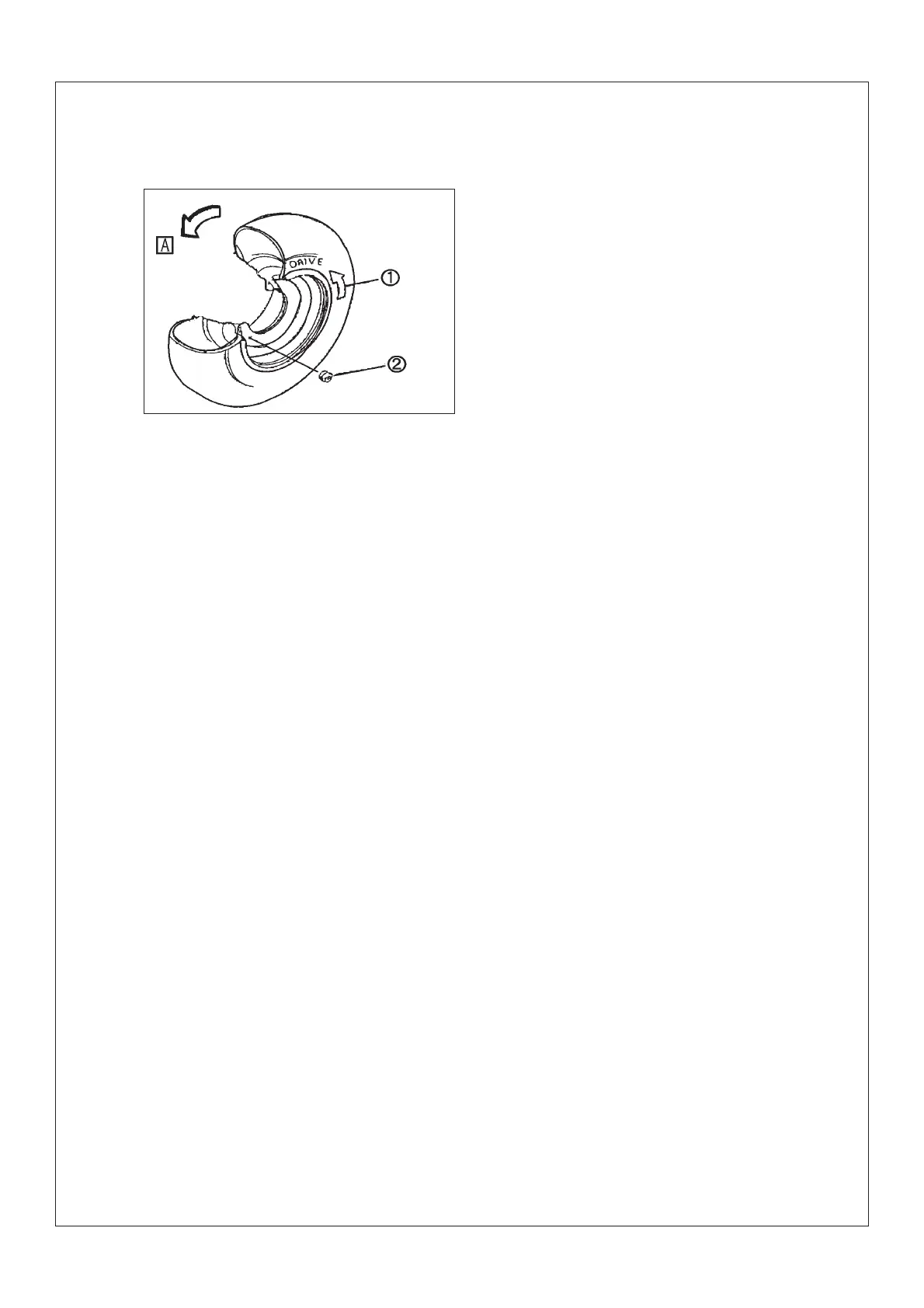

When installing the front wheel¢Ù, the fasten-
ing torque of connecting nut¢Úof front and rear
wheels is 55N.m.
The rotation direction of front wheel (A) is the
arrow direction marked on the tire.
10.Adjustment
Free clearance of front brake cable
Refer to the “Adjustment of front
brake”section fo chapter Two.
Free clearance of front brake:
The free clearance on the center of right lever
is 5.0-8.0mm.
11.Loosen the brake clip.
- 83 -
