Audi Q7 2007 !
6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 13 Crankshaft group
6
94

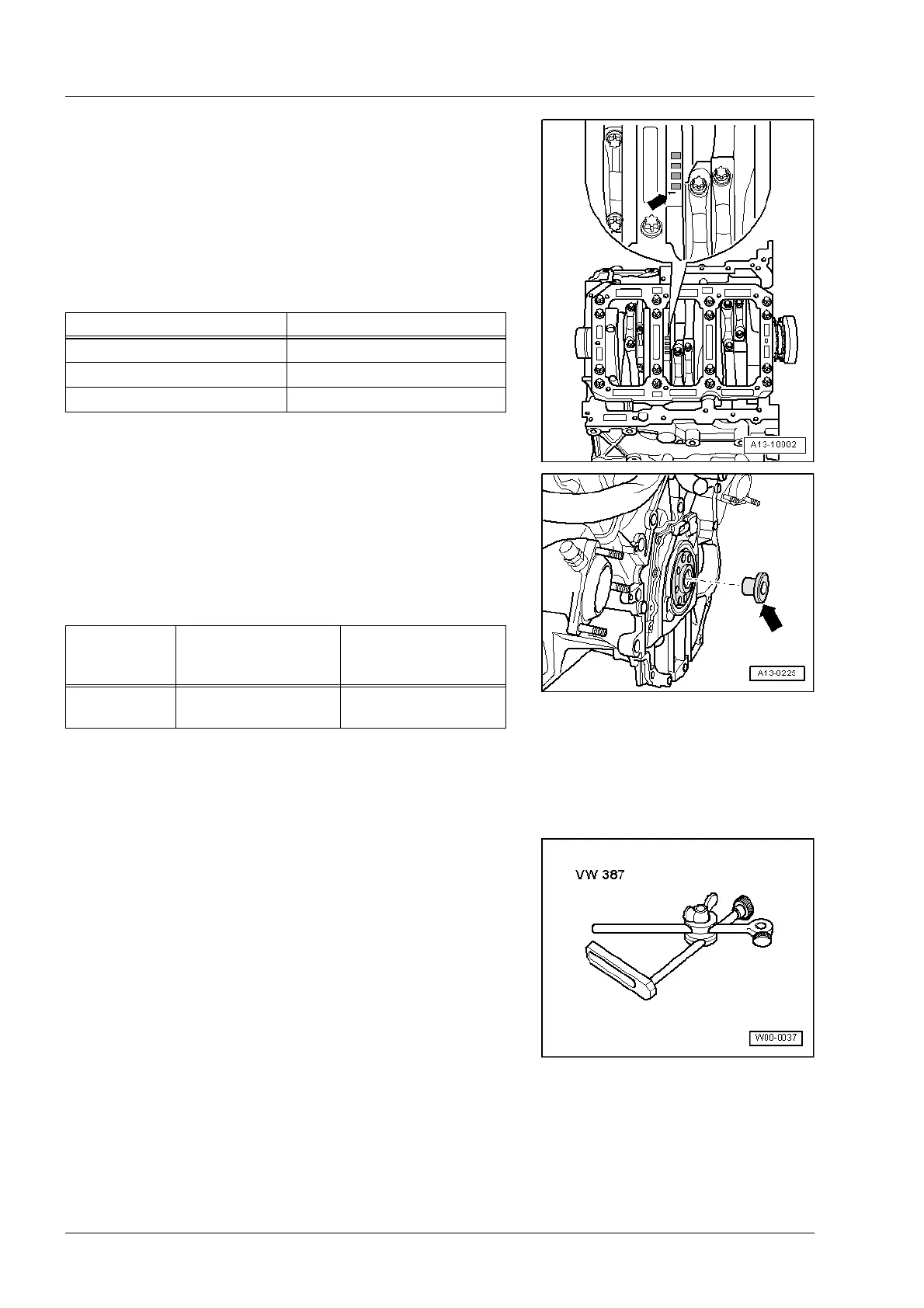

Matching crankshaft bearing shells to bearings in retaining
frame
Bearing shells of the correct thickness are assigned to the
bearing caps at the factory. Coloured dots on bearing shell
are used to identify bearing shell thickness.
The correct allocation of bearing shells to crankshaft is in-
dicated by a sequence of letters on the crankshaft webs.
The number “1” -arrow- preceding the sequence of letters
indicates the colour code for No. 1 bearing.
Bearing bush for torque converter
On vehicles with automatic gearbox, check that bearing
bush -arrow- is inserted in rear of crankshaft. Drive in bear-
ing bush if necessary.
3.2 Crankshaft dimensions
3.3 Measuring axial clearance
Special tools and workshop equipment required
Universal dial gauge bracket -VW 387-
Letter on crankshaft Colour coding of bearing
R= Red
G = Yellow
B= Blue
Honing di-
mension
(in mm)
Crankshaft main
bearing journal
Crankshaft conrod
journal
Basic dimen-
sion
65.00
– 0.022
– 0.042
60.00
– 0.022
– 0.042
