6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
2 Servicing work on timing chain end
55
6

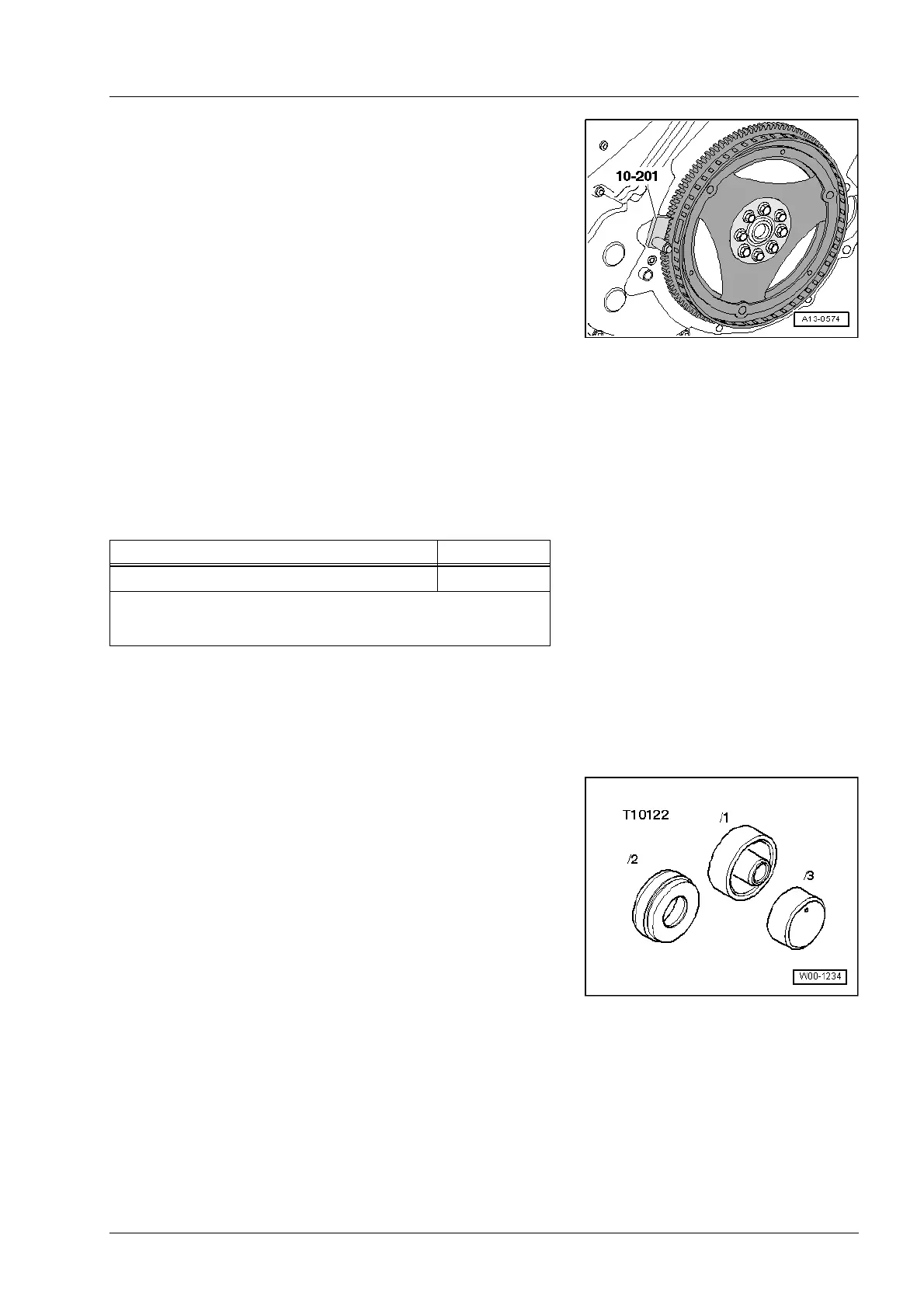

Removing
Engine/gearbox removed.
Mark installation position of drive plate on crankshaft.
Attach counterhold tool -10-201- in order to loosen bolts.
Unbolt drive plate.
Take out shim located behind.
Installing
Installation is carried out in the reverse order; note the follow-
ing:
Fit shim (1.5 mm) onto crankshaft.
Install drive plate with washer (3.4 mm).
Use new bolts for securing.
Reverse position of counterhold tool -10-201- in order to
tighten bolts.
Tightening torque
2.3 Renewing crankshaft oil seal (timing chain
end)
Special tools and workshop equipment required
Fitting tool -T10122-
Component Nm
Drive plate to crankshaft
30 + 90°
1)2)
1)
Renew bolts.
2)
90° = one quarter turn.
