Audi Q7 2007 !
6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 19 Cooling
6
160

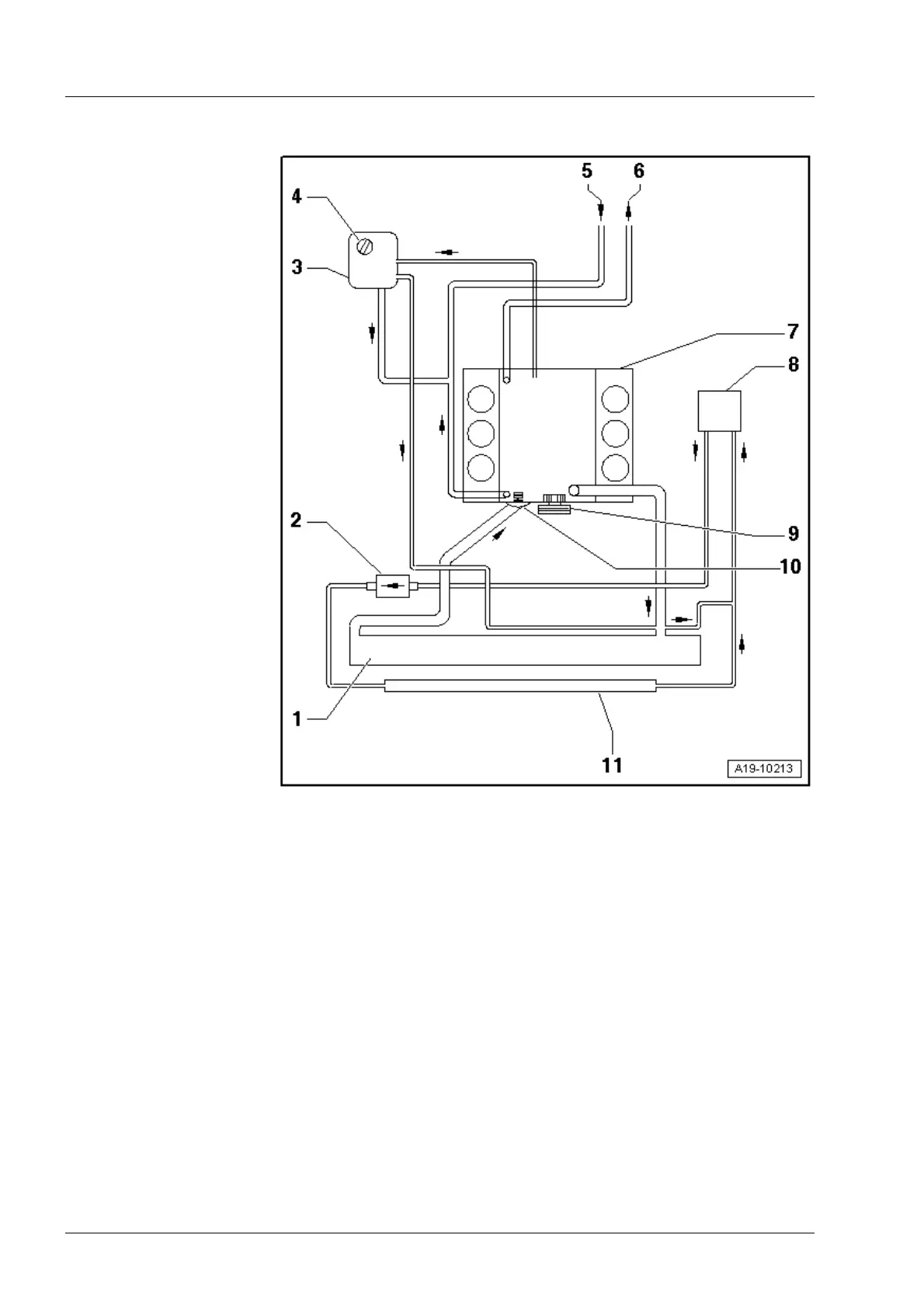

1.1 Diagram of coolant hose connections
1 - Radiator
" Removing and in-
stalling page 184
" If renewed, refill
system with fresh
coolant
2 - Continued coolant cir-
culation pump -V51-
" For fuel cooling sys-
tem
" Removing and in-
stalling page 169
3 - Expansion tank
4- Filler cap
" Checking pressure
relief valve in filler
cap page 189
5 - From heat exchanger
6 - To heat exchanger
7 - Cylinder head/cylinder
block
" If renewed, refill
system with fresh
coolant
8 - Fuel cooler
" On fuel filter
9 - Coolant pump
" Removing and in-
stalling page 167
10 - Thermostat
" Removing and in-
stalling page 171
11 - Fuel cooler
" Removing and installing page 187
