Audi Q7 2007 !
6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 13 Crankshaft group
6
46

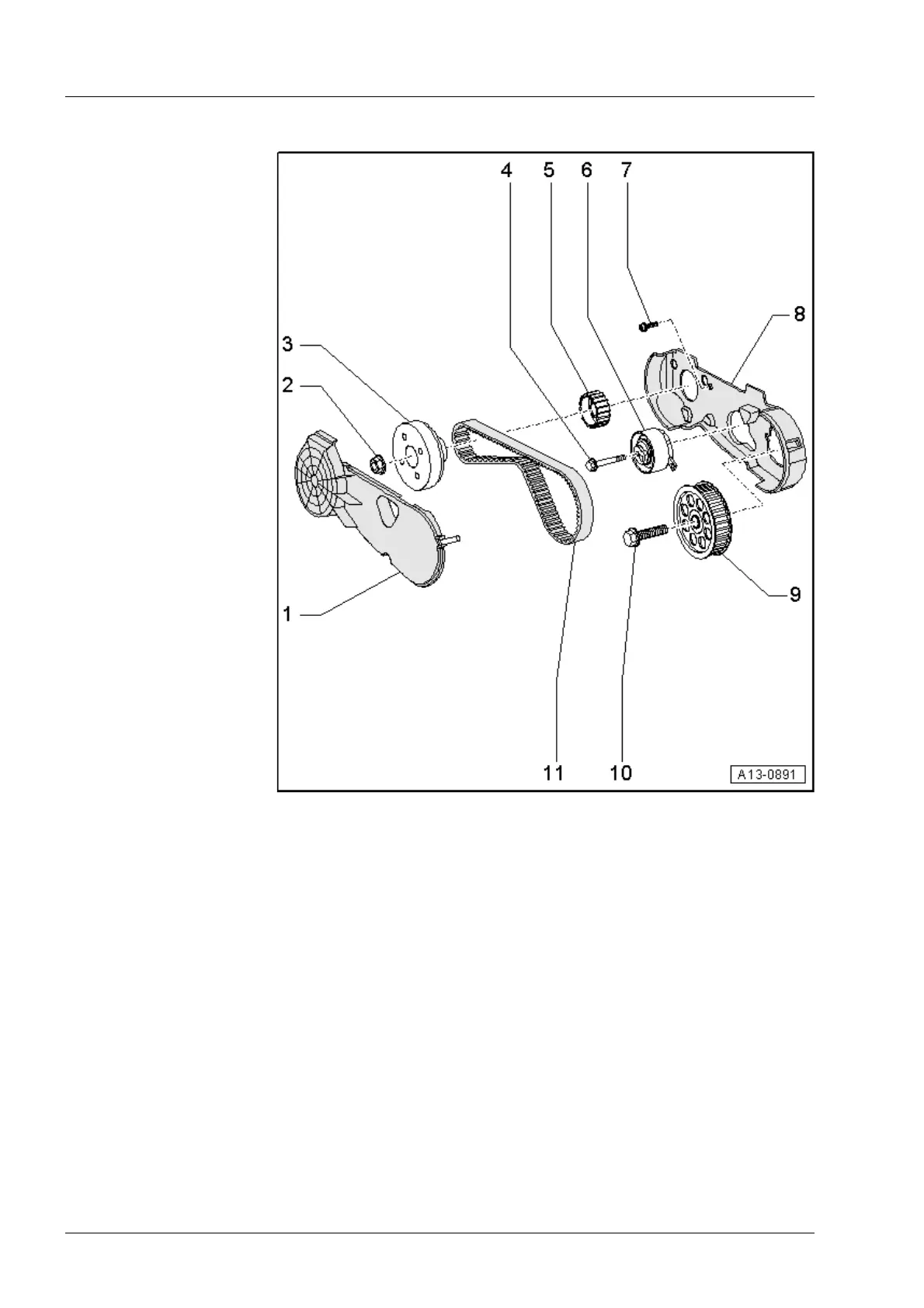

1.7 Toothed belt for high-pressure pump - exploded view of components
1 - Toothed belt cover
(front)
" Engage in position
at the bottom at clip
on at the side
2- 70 Nm
" Use counterhold
tool -3036- when
loosening and tight-
ening Fig. on
page 47
3- Damper weight
" Use counterhold
tool -3036- when
loosening and tight-
ening central nut
Fig. on page 47
4- 23 Nm
5 - Toothed belt sprocket
for high-pressure pump
" Remove using puller
-T40064- Fig. on
page 47
6 - Toothed belt tension-
ing roller
7- 9 Nm
8 - Toothed belt cover
(rear)
9 - Toothed belt drive
sprocket
" Use counterhold
tool -3036- when
loosening and tight-
ening central bolt
Fig. on page 47
" Remove using puller -T10320- Fig. on page 47
10 - 75 Nm
" With washer
" Use counterhold tool -3036- when loosening and tightening Fig. on page 47
11 - Toothed belt for high-pressure pump
" Before removing, mark direction of rotation with chalk or felt-tipped pen. If the belt runs in the
opposite direction when it is refitted, this can cause breakage
" Removing and installing page 48
" Check for wear
