6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 17 – Lubrication
6
144

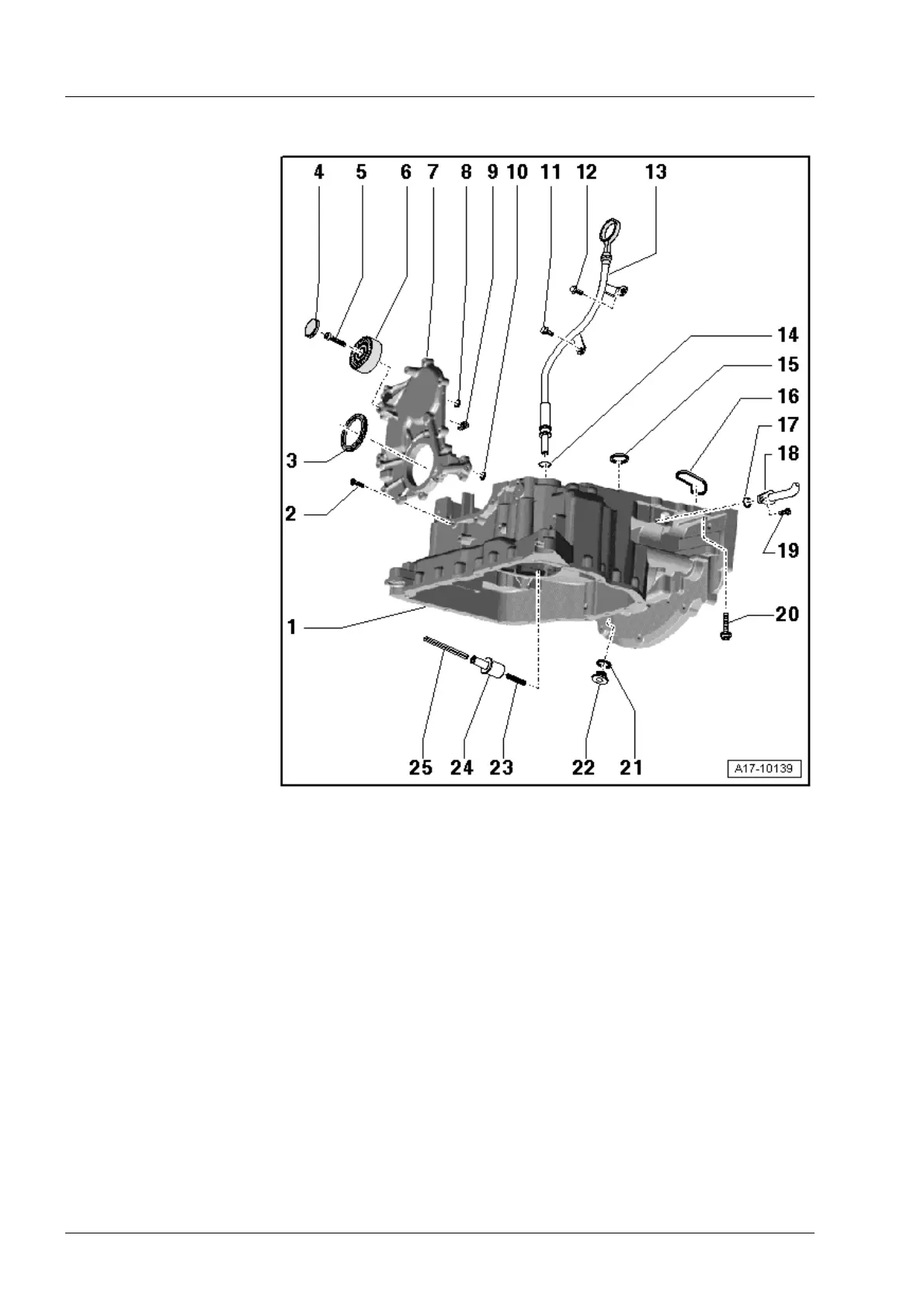

1.4 Sump (top section) - exploded view of components
1 - Sump (top section)
" Removing and in-
stalling ⇒ page 145
2- 9 Nm
" Tighten in stages
and in diagonal se-
quence
3 - Crankshaft oil seal (pul-
ley end)
" Renewing
⇒ page 41
4 - Cover for idler roller
5- 22 Nm
6 - Idler roller for poly V-
belt
" Note installation po-
sition
7 - Sealing flange (front)
" Removing and in-
stalling ⇒ page 43
8- O-ring
" Renew
9 - Sealing element
" 2 x
10 - O-ring
" Renew
11 - 9 Nm
12 - 9 Nm
13 - Guide tube for oil dip-
stick
14 - O-ring
" Renew
15 - Seal
" Renew
16 - Seal
" Renew
17 - O-ring
" Renew
18 - Oil return pipe
" From turbocharger
19 - 9 Nm
20 - 14 Nm
" Tighten in stages and in diagonal sequence
21 - Seal
" Renew
22 - Plug for “TDC” drilling, 35 Nm
23 - Compression spring
24 - Coupling
25 - Oil pump drive shaft
