6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 21 Turbocharging/supercharging
6
198

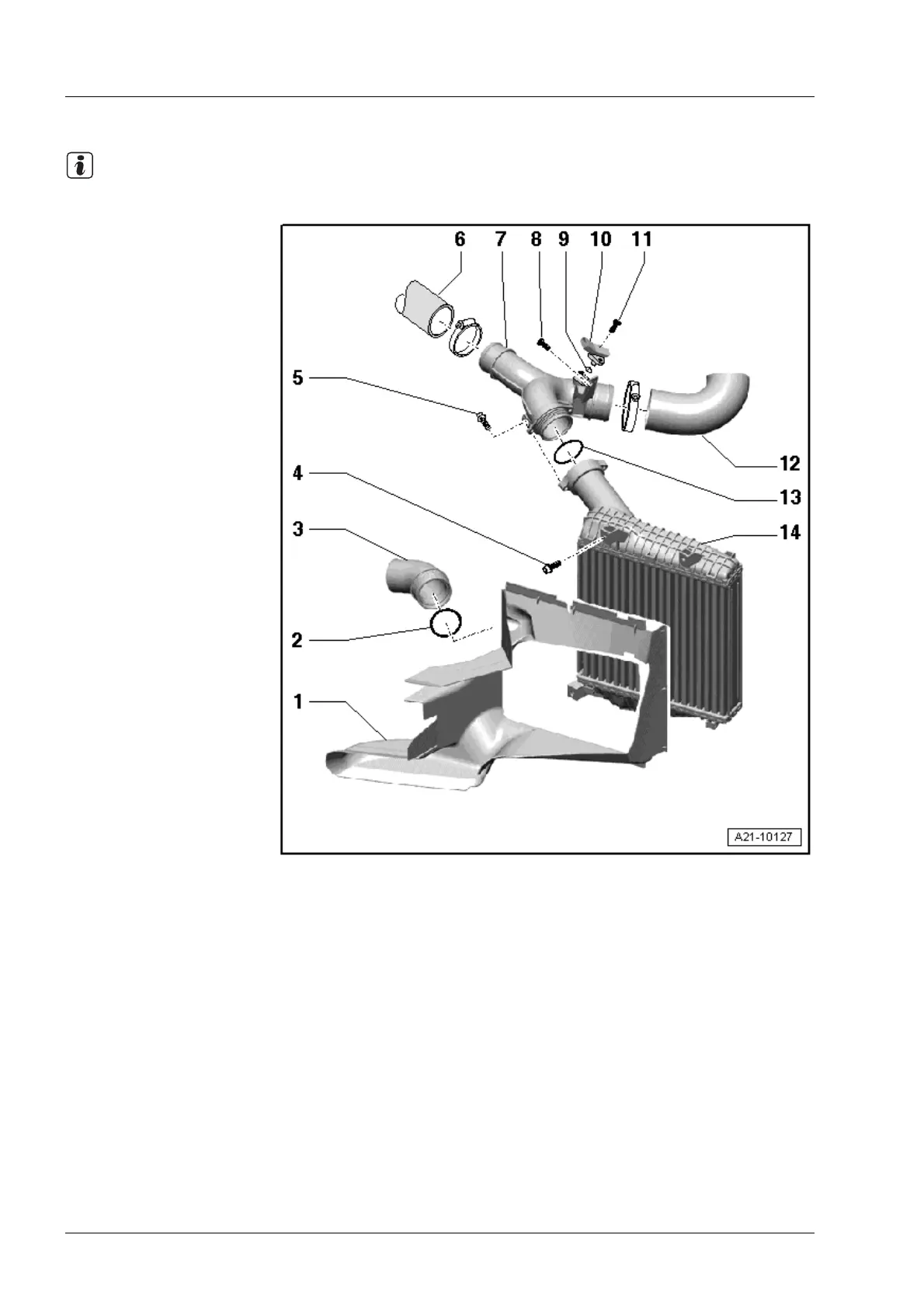

1.5 Charge air cooler - exploded view of components
Illustration shows left-side charge air cooler.
1 - Front air duct
2 - Seal
" Renew if damaged
or leaking
3 - Air intake hose
" To turbocharger
" Must be free of oil
and grease when in-
stalling
4- 9 Nm
5- 9 Nm
6 - Air intake hose
" To charge air cooler
(right-side)
" Must be free of oil
and grease when in-
stalling
7 - Connection
8- 9 Nm
9- O-ring
" Renew
10 - Charge pressure sender
-G31-
" Removing and in-
stalling page 200
11 - 5 Nm
12 - Air intake hose
" To intake manifold
" Must be free of oil
and grease when in-
stalling
13 - O-ring
" Renew
14 - Charge air cooler
" Removing and installing page 199
Note
