Audi Q7 2007 !
6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
1 Removing and installing parts of exhaust system
217
6

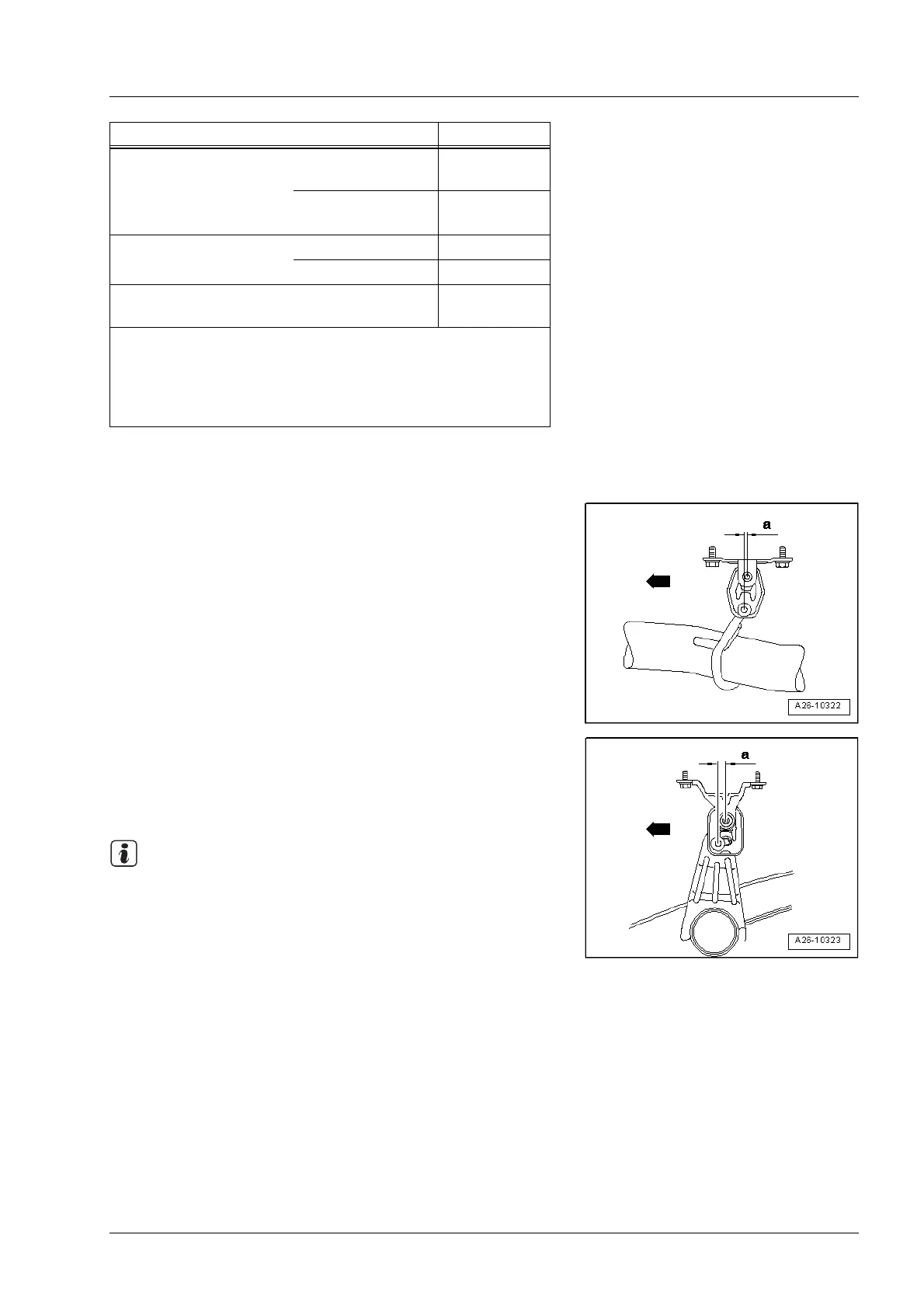

1.10 Stress-free alignment of exhaust system
The exhaust system must be aligned when it is cool.
Loosen bolts of clamp item 3 on page 202.
Press exhaust system to front -arrow- until the rubber
mountings are pre-loaded to the specified dimensions:
Rubber mounting (front left): dimension -a- = 4 mm.
Rubber mounting (rear left and right): dimension -a- = 10
mm.
Make sure exhaust system remains in this position and
tighten clamping bolts evenly to 23 Nm.
If any of the specified dimensions is not attained, remove rel-
evant brackets from body and adjust as required.
Align tailpipes page 204.
1.11 Checking exhaust system for leaks
Start engine and run at idling speed.
Seal off tailpipes for duration of leak test with cloths or
plugs, etc.
Listen for leaks at joints between cylinder head/exhaust
manifold, exhaust manifold/intermediate pipe, intermediate
pipe/intermediate flange, intermediate flange/turbocharg-
er, etc.
Repair any leaks that are found.
Component Nm
Intermediate pipe to: exhaust manifold 30 + 90°
1)2)3)
intermediate
flange
30 + 90°
1)2)3)
Air pipe to: bracket 9
lifting eye 9
Bracket for electrical connector to cylinder
head cover
9
1)
Renew bolts.
2)
90° = one quarter turn.
3)
Coat with high-temperature paste; refer to Parts
catalogue.
Note
