Audi Q7 2007 Workshop Manual

Audi Q7 2007 !
6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 13 – Crankshaft group
6
82

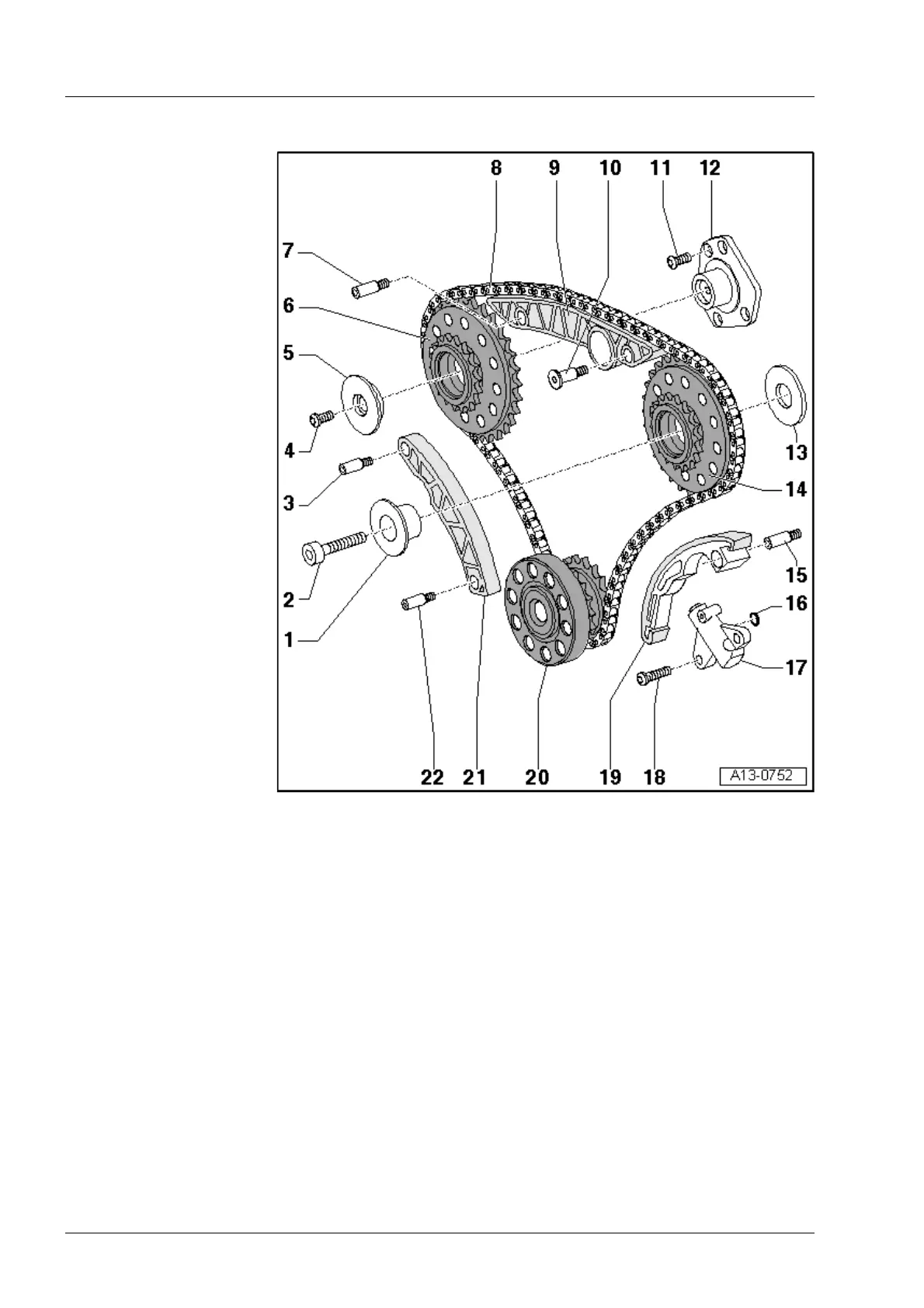

2.9 Drive chain for valve gear - exploded view of components
1 - Bearing mounting for
drive sprocket
2- 45 Nm
3 - Mounting pin, 12 Nm
" Install using locking
fluid; for locking flu-
id refer to ⇒ Parts
catalogue
4- 5 Nm + 90° (
1
/
4
turn)
further
" Renew
5 - Thrust washer for drive
sprocket
6 - Drive sprocket for tim-
ing chain (left-side)
7 - Mounting pin, 12 Nm
" Install using locking
fluid; for locking flu-
id refer to ⇒ Parts
catalogue
8 - Drive chain for valve
gear
" Before removing,
mark running direc-
tion with paint
" Removing and in-
stalling ⇒ page 83
9 - Guide rail
10 - Mounting pin, 12 Nm
" Install using locking
fluid; for locking flu-
id refer to ⇒ Parts
catalogue
11 - 9 Nm
12 - Bearing bracket for drive sprocket
13 - Thrust washer
14 - Drive sprocket for timing chain (right-side)
15 - Mounting pin, 12 Nm
" Install using locking fluid; for locking fluid refer to ⇒ Parts catalogue
16 - O-ring
" Renew
17 - Chain tensioner
18 - 10 Nm
19 - Guide rail for chain tensioner
20 - Crankshaft
21 - Guide rail
" Note installation position
22 - Mounting pin, 9 Nm
