6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 13 – Crankshaft group
6
88
– Pull drill bit out of locating hole to release chain tensioner.
– Press against guide rail of chain tensioner in direction of
-arrow- using a screwdriver, and at the same time tighten
bolts -arrows- securing chain sprocket.
– Pull diesel injection pump locking pin -3359- out of balance
shaft.
Remaining installation steps are carried out in reverse se-
quence; note the following:
– Install timing chain covers ⇒ page 60.
Tightening torques

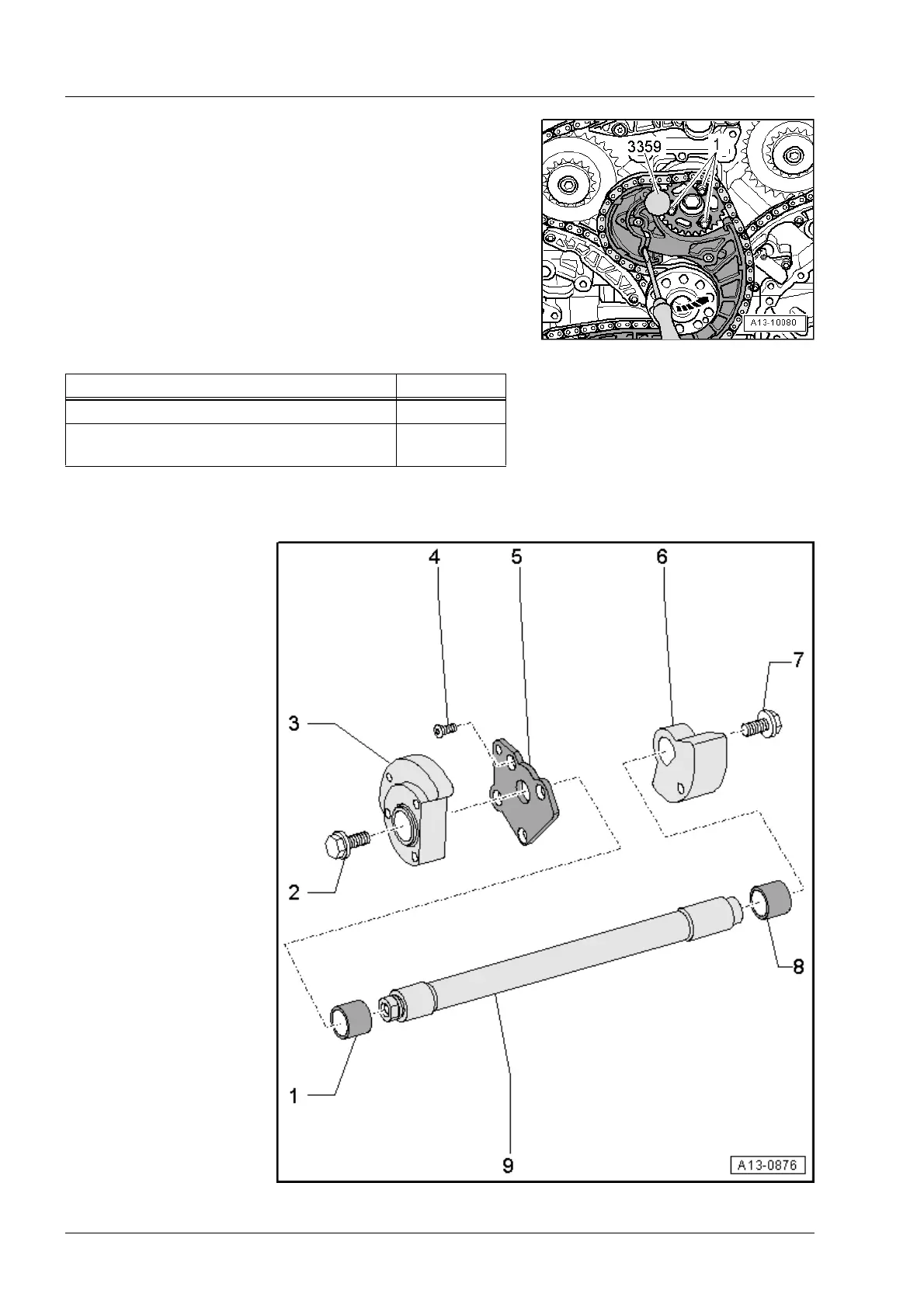

2.13 Balance shaft - exploded view of components
1 - Sleeve bearing
2- 60 Nm
" Counterhold with
diesel injection
pump locking pin
-3359- when loos-
ening and tightening
3 - Balance weight (timing
chain end)
4- 9 Nm
5 - Bearing plate
6 - Balance weight (pulley
end)
7- 60 Nm
" Counterhold with
diesel injection
pump locking pin
-3359- when loos-
ening and tightening
8 - Sleeve bearing
9- Balance shaft
" Removing and in-
stalling ⇒ page 89
Component Nm
Chain tensioner to cylinder block 9
Chain sprocket for balance shaft to balance
weight
24
