Audi Q7 2007 !
6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
2 Servicing work on timing chain end
83
6

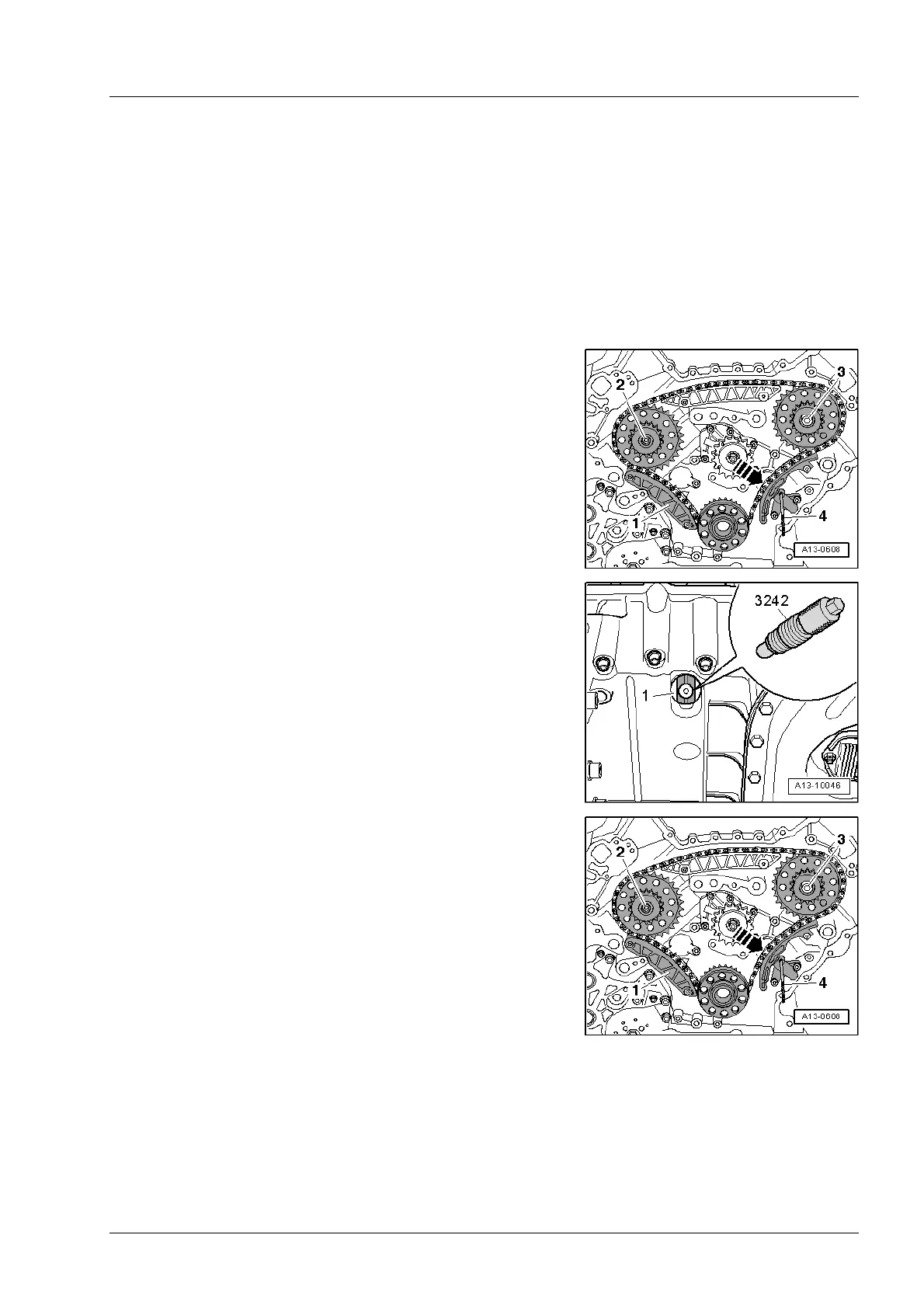

2.10 Removing and installing drive chain for
valve gear
Special tools and workshop equipment required
Drill bit, 3.3 mm
Removing
Remove timing chain covers page 59.
Remove camshaft timing chains page 65.
Remove chain for oil pump and balance shaft page 85.
Press guide rail of chain tensioner for drive chain in direc-
tion of -arrow- and lock chain tensioner by inserting a
3.3 mm drill bit -item 4-.
Mark running direction of chain with paint.
Remove bolts -2- and -3- and detach chain sprockets to-
gether with drive chain and guide rail -1-.
Installing
Installation is carried out in the reverse order; note the follow-
ing:
Crankshaft -1- locked in “TDC” position with locking pin
-3242-.
First install sprocket for camshaft timing chain (left-side)
-2-.
Install guide rail -1- with drive chain fitted.
Now install sprocket for camshaft timing chain (right-side)
-3-.
Push guide rail of chain tensioner for drive chain in direc-
tion of -arrow- and pull drill bit -4- out of chain tensioner.
Install chain for oil pump and balance shaft page 85
Install camshaft timing chains page 65.
Install timing chain covers page 60.
Tightening torques
