Audi Q7 2007 - Exhauster Pump - Exploded View of Components; Removing and Installing Exhauster Pump

Audi Q7 2007 !
6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 13 – Crankshaft group
6
52

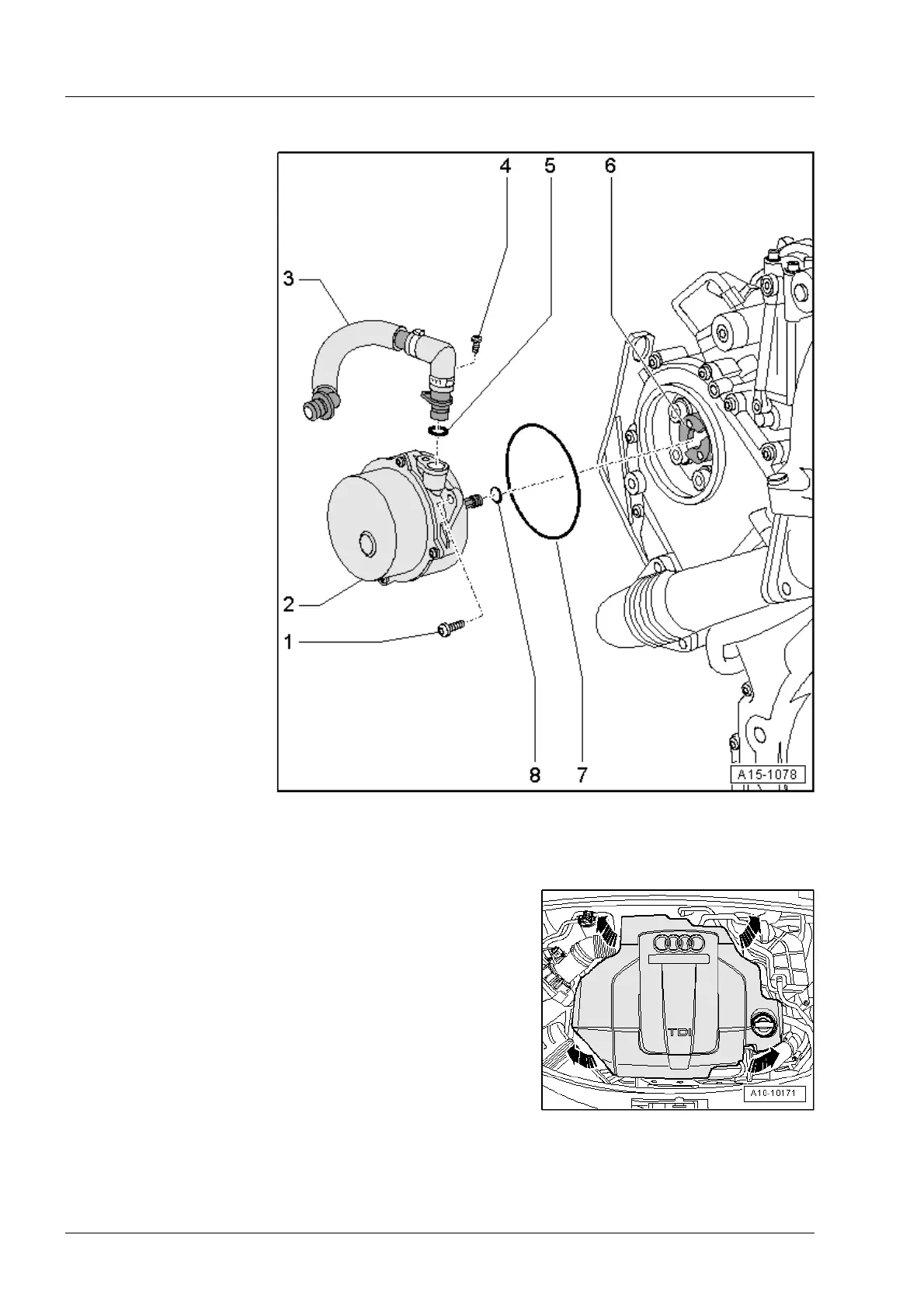

1.9 Exhauster pump - exploded view of components
1- 9 Nm
2 - Exhauster pump
" Removing and in-
stalling ⇒ page 52
3 - Vacuum hose
" Secure with correct
type of hose clips
(as original equip-
ment) ⇒ Parts cata-
logue
4- 5 Nm
5- O-ring
" Renew
6 - Inlet camshaft
7- O-ring
" Renew
8- O-ring
" Renew
1.10 Removing and installing exhauster pump
Removing
– Carefully pull engine cover panel off four retaining pins one
after the other -arrows-.
