6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 13 – Crankshaft group
6
58

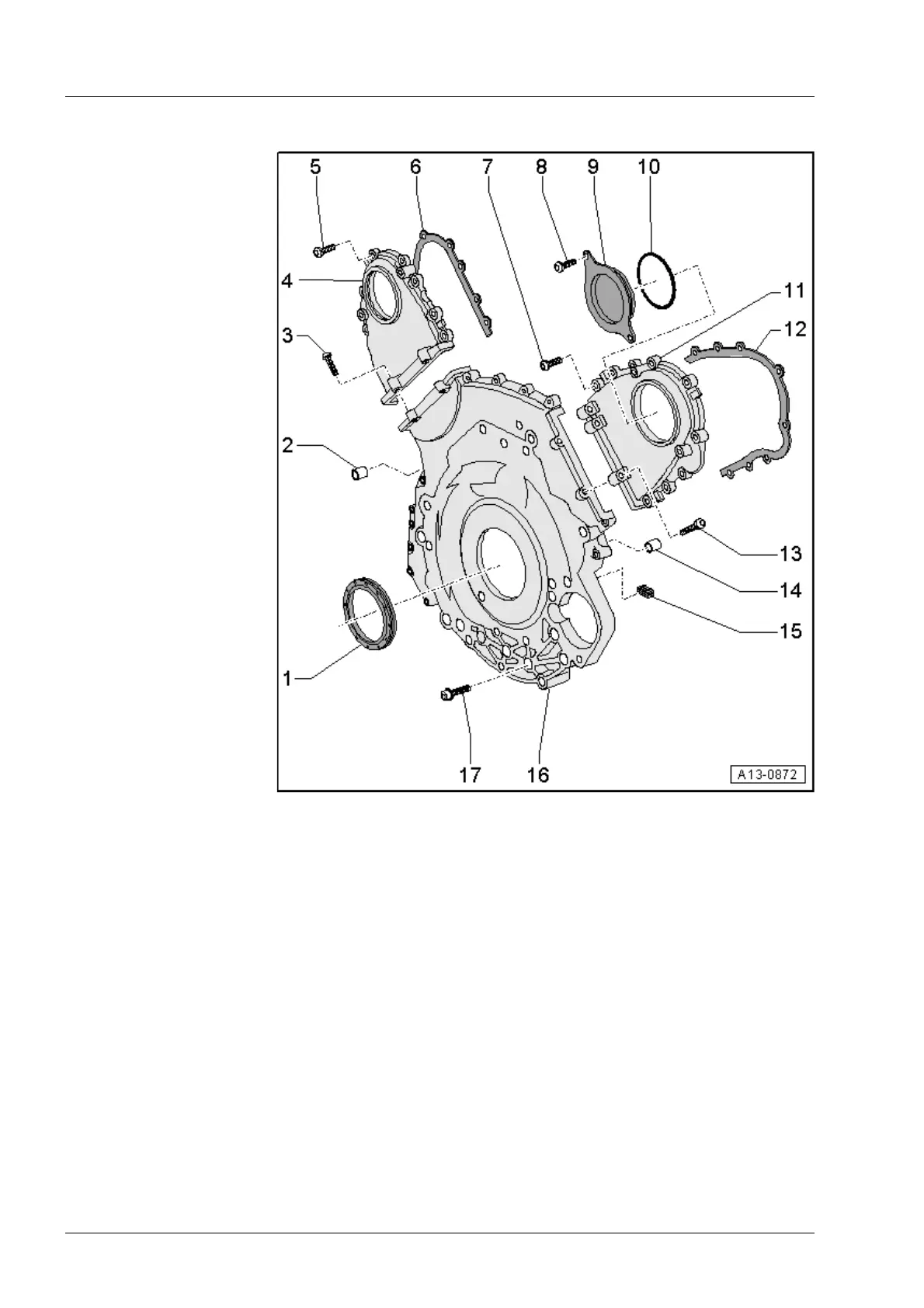

2.4 Timing chain covers - exploded view of components
1 - Crankshaft oil seal (on
timing chain end)
" Removing and in-
stalling ⇒ page 55
2 - Dowel sleeve
" 2 x
3- 9 Nm
" Note correct se-
quence when tight-
ening ⇒ page 62
4 - Timing chain cover
(left-side)
5- 9 Nm
" Note correct se-
quence when tight-
ening ⇒ page 62
6- Gasket
" Renew
7- 9 Nm
" Note correct se-
quence when tight-
ening ⇒ page 62
8- 9 Nm
9 - Sealing cap
10 - O-ring
" Renew
11 - Timing chain cover
(right-side)
12 - Gasket
" Renew
13 - 9 Nm
" Note correct se-
quence when tightening ⇒ page 62
14 - Dowel sleeve
" 2 x
15 - Sealing element
" 2 x
16 - Timing chain cover (bottom)
17 - M6 = 9 Nm; M8 = 22 Nm
" Note correct sequence when tightening ⇒ page 61
