Audi Q7 2007 !
6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
1 Removing and installing parts of exhaust system
213
6

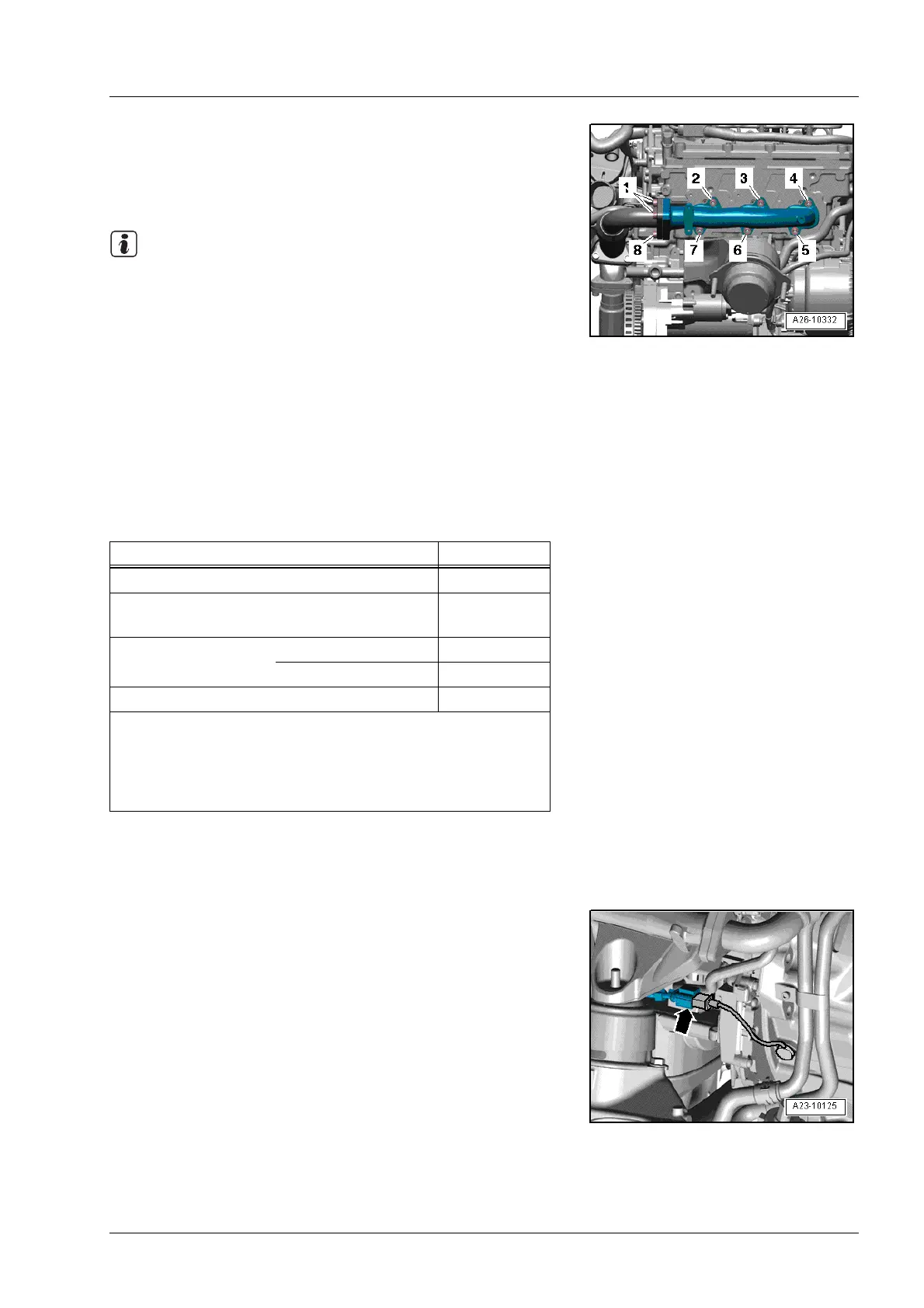

Remove bolts -1 8- and remove exhaust manifold.
Installing
Installation is carried out in the reverse order; note the follow-
ing:
Renew gaskets and self-locking nuts.
Hose connections and hoses for charge air system must be
free of oil and grease before assembly.
Secure all hose connections with the correct type of hose
clips (same as original equipment) Parts catalogue.
Tighten bolts securing intermediate pipe to exhaust mani-
fold as follows:
1. Tighten with torque wrench initially to 10 Nm.
2. Tighten with torque wrench to 30 Nm.
3. Turn 90° (
1
/
4
turn) further using a rigid wrench.
Tightening torques
1.8 Removing and installing intermediate pipe
(left-side)
Removing
Remove starter catalytic converter page 204.
Take electrical connector -arrow- for engine speed sender
-G28- out of bracket and unplug it.
Component Nm
Exhaust manifold to cylinder head
25
1)2)
Intermediate pipe to exhaust manifold 30 + 90°
1)2)3)
Air pipe to: bracket 9
engine lifting eye 9
Hose clips (13 mm wide) 5.5
1)
Renew bolts.
2)
90° = one quarter turn.
3)
Coat with high-temperature paste; refer to Parts
catalogue.
Note
