6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 26 – Exhaust system
6
212

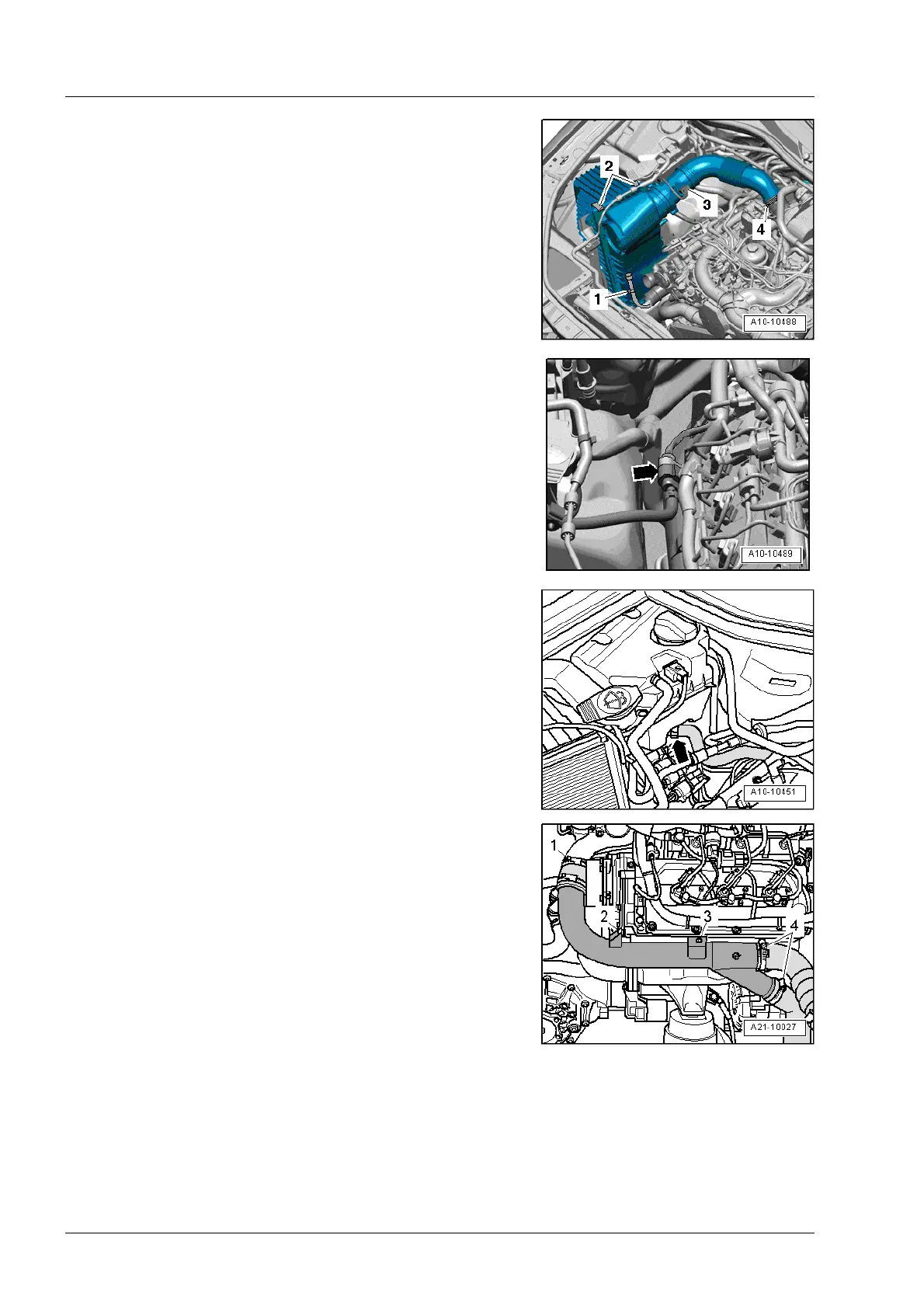

– Unclip differential breather hose -1- from air cleaner hous-
ing (top section).
– Unplug electrical connector -3- at air mass meter -G70-.
– Detach air intake hose -4- from turbocharger.
– Release retaining clips -2- and detach top section of air
cleaner housing.
– Take electrical connector -arrow- out of bracket and un-
plug it.
– Unbolt bracket for electrical connector at cylinder head
cover.
– Detach coolant hose -arrow- at coolant expansion tank.
– Remove bolts -2- and -3-.
– Detach air pipe from hoses -1- and -4- and remove pipe
downwards.
