Audi Q7 2007 !
6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 17 Lubrication
6
148

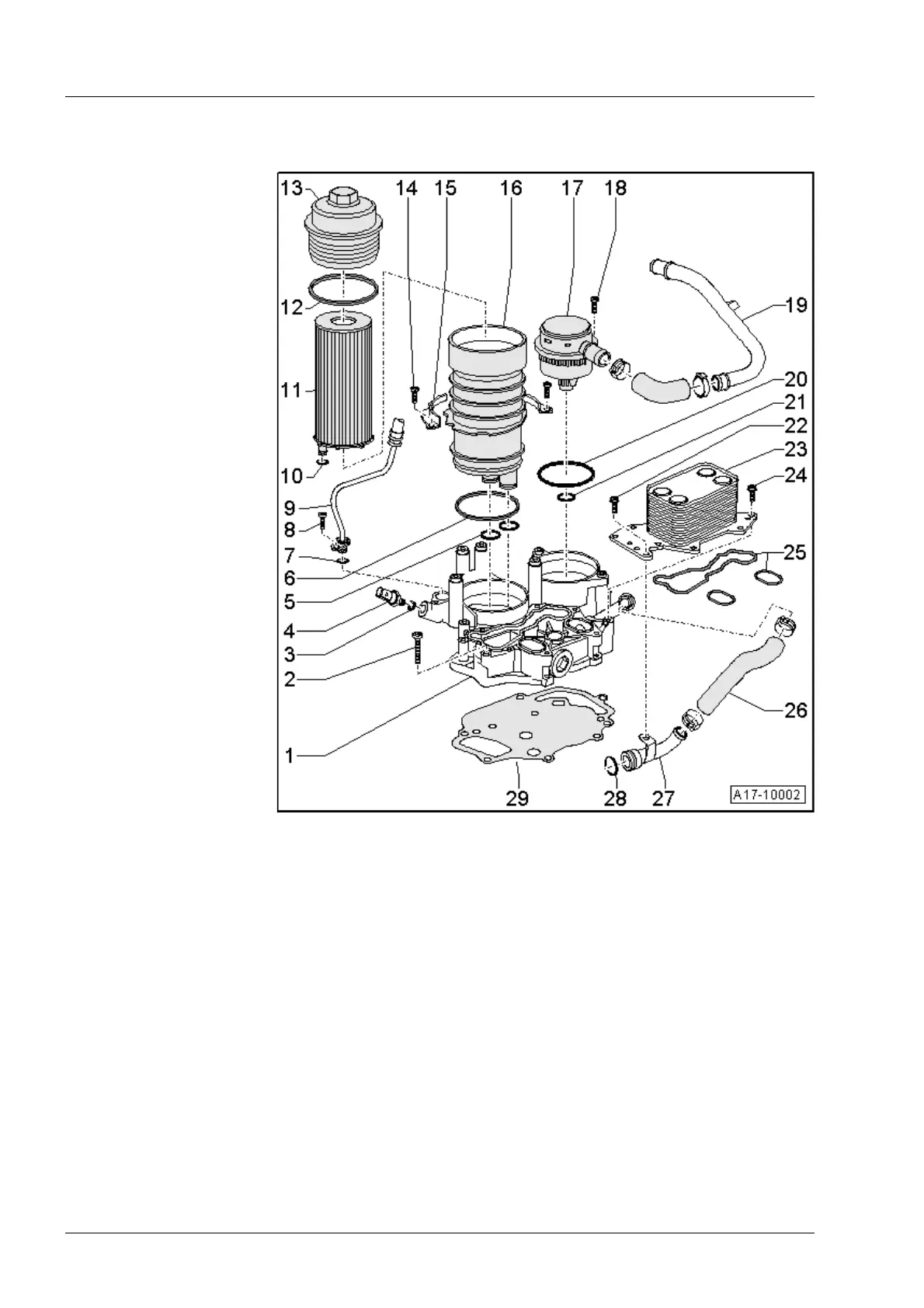

1.6 Oil cooler, pressure control valve, and oil filter housing - exploded view of
components
1 - Mounting plate
" For oil cooler, pres-
sure control valve of
crankcase breather
system, oil filter
housing
" Removing and in-
stalling page 153
2- 9 Nm
3 - Seal
" Renew
4 - Oil pressure switch
-F1-
" Opening/closing
pressure 0.9 bar
" Grey insulation
" Checking
page 156
" Removing and in-
stalling page 154
" Tighten to 20 Nm
5- O-rings
" Renew
6 - Seal
" Renew
7- O-ring
" Renew
8- 9 Nm
9 - Oil supply pipe
" To turbocharger
10 - O-ring
" Renew
11 - Oil filter element
" When removing, pull out of sealing cap item 13
" When installing, fit connection at bottom of oil filter element in bore in oil filter housing
" Observe change intervals Maintenance; Booklet 406
12 - Seal
" Renew
13 - Sealing cap, 35 Nm
" Use 32 mm socket to loosen and tighten
14 - 9 Nm
15 - Retaining clip
16 - Oil filter housing
" Removing and installing page 150
" With oil filter bypass valve, 2.0 3.0 bar (pressure differential upstream/downstream of filter)
17 - Pressure control valve for crankcase breather system
" Removing and installing page 152
18 - 9 Nm
19 - Crankcase breather pipe
