Audi Q7 2007 !
6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 17 Lubrication
6
136

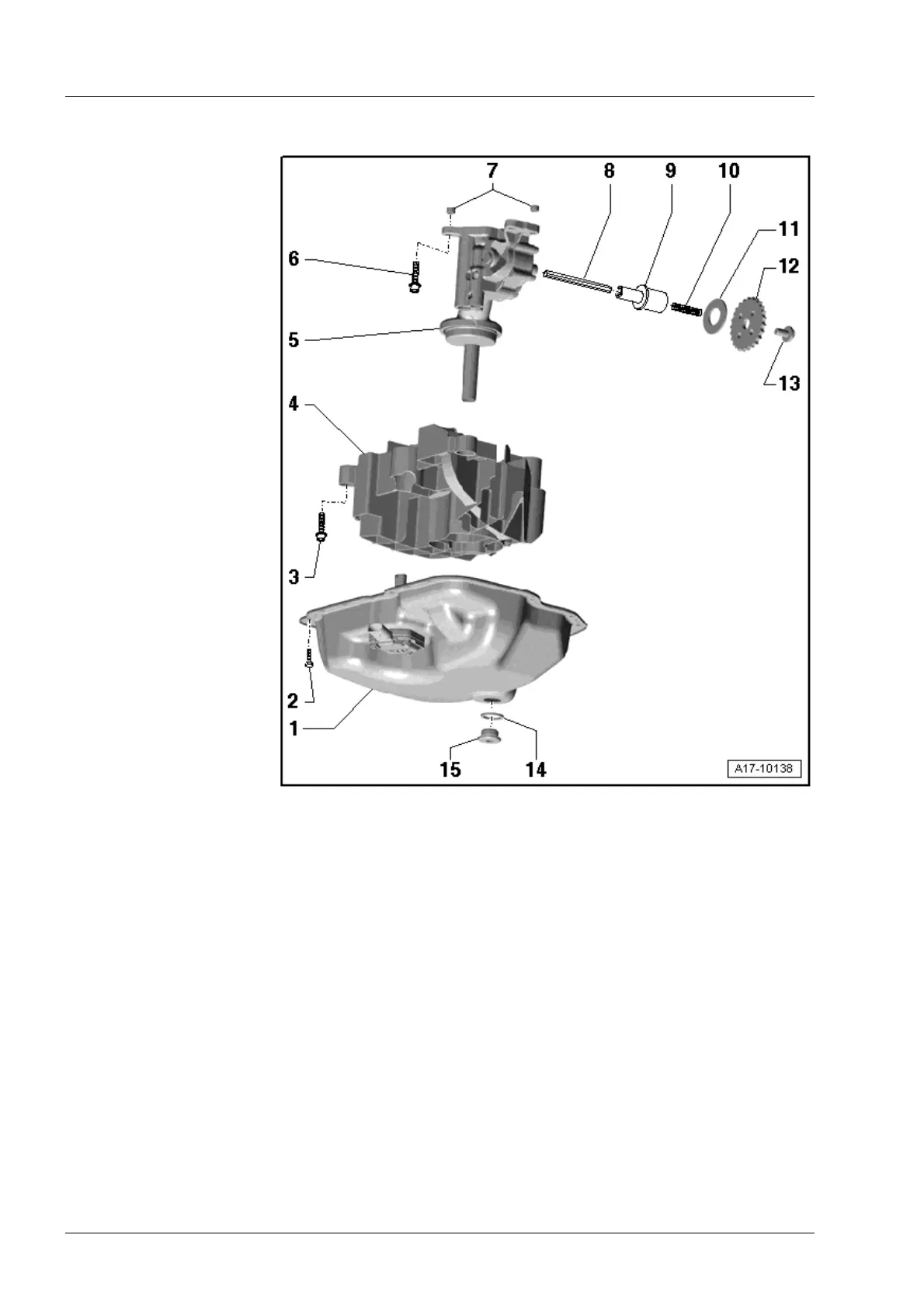

1.1 Oil pump, sump (bottom section) - exploded view of components
1 - Sump (bottom section)
" Removing and in-
stalling page 138
" With oil level and oil
temperature sender
-G266-
" Removing and in-
stalling oil level and
oil temperature
sender -G266-
Fig. on page 137
2- 9 Nm
" Tighten in stages
and in diagonal se-
quence
3- 9 Nm
4- Baffle plate
5 - Oil pump
" Do not dismantle
" With pressure relief
valve for cold condi-
tion (11 bar) and
pressure control
valve (3.5 bar)
" Removing and in-
stalling page 142
6- 23 Nm
7 - Dowel sleeves
8 - Oil pump drive shaft
9 - Coupling
10 - Compression spring
11 - Thrust washer
12 - Chain sprocket for oil
pump
" Installation position: Side with lettering faces engine
13 - 64 Nm
" Bolt strength rating 10.9
" To loosen, use 2-hole pin wrench -3212- to counterhold chain sprocket
" If bolt cannot be tightened to torque, remove sump (bottom section) with baffle plate and coun-
terhold oil pump drive shaft using an open-end spanner.
14 - Seal
" Renew
15 - Oil drain plug, 50 Nm
